KitchenAid KFRS271TSS - Removing a Burner, Burner Ignitor, Infrared Gas Valve, and Burner Gas Valve

4-8

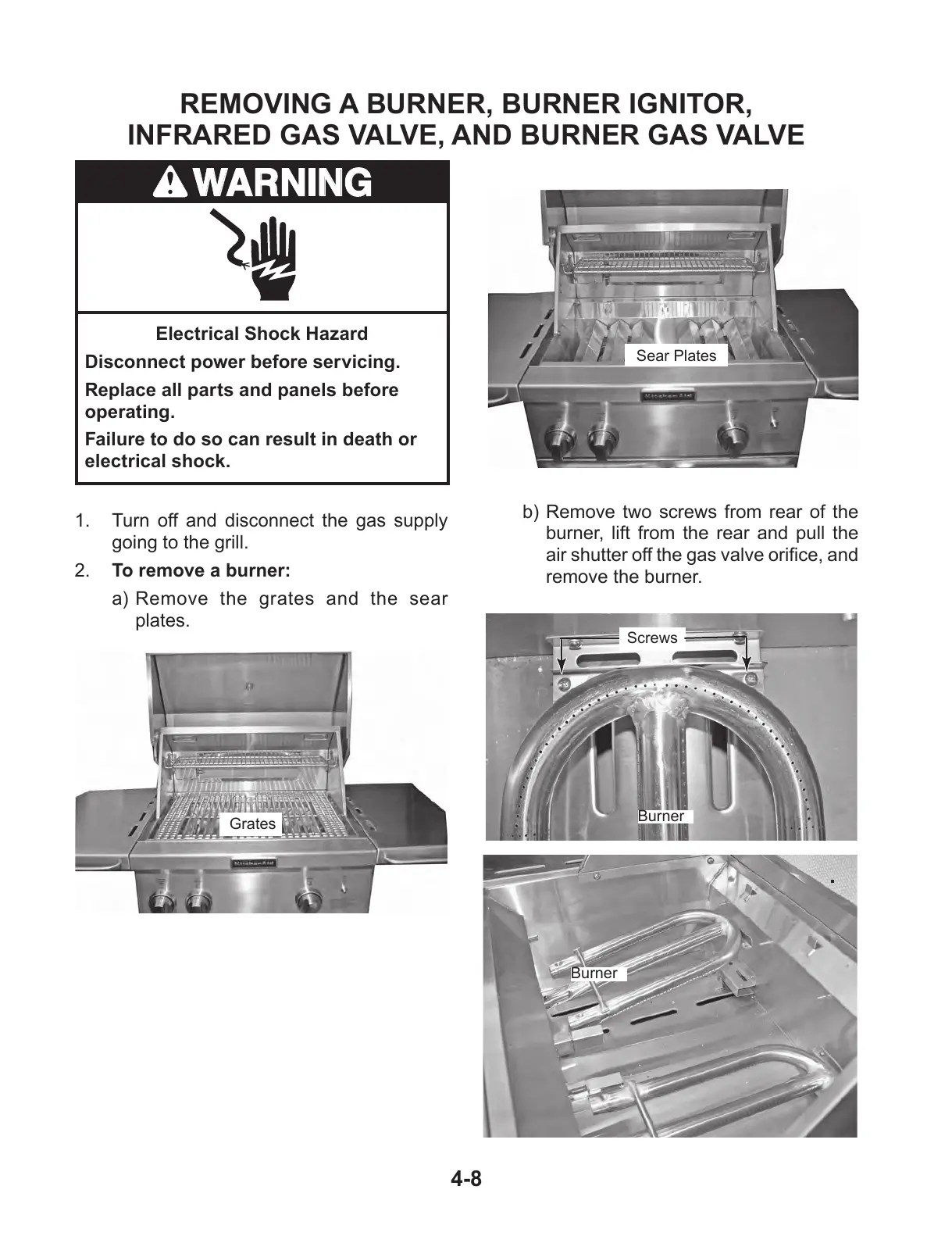

REMOVING A BURNER, BURNER IGNITOR,
INFRARED GAS VALVE, AND BURNER GAS VALVE
1. Turn off and disconnect the gas supply
going to the grill.
2. To remove a burner:
a) Remove the grates and the sear
plates.
b) Remove two screws from rear of the
burner, lift from the rear and pull the
airshutteroffthegasvalveorice,and
remove the burner.
Grates
Sear Plates
Screws
Burner
Burner
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
