4-9

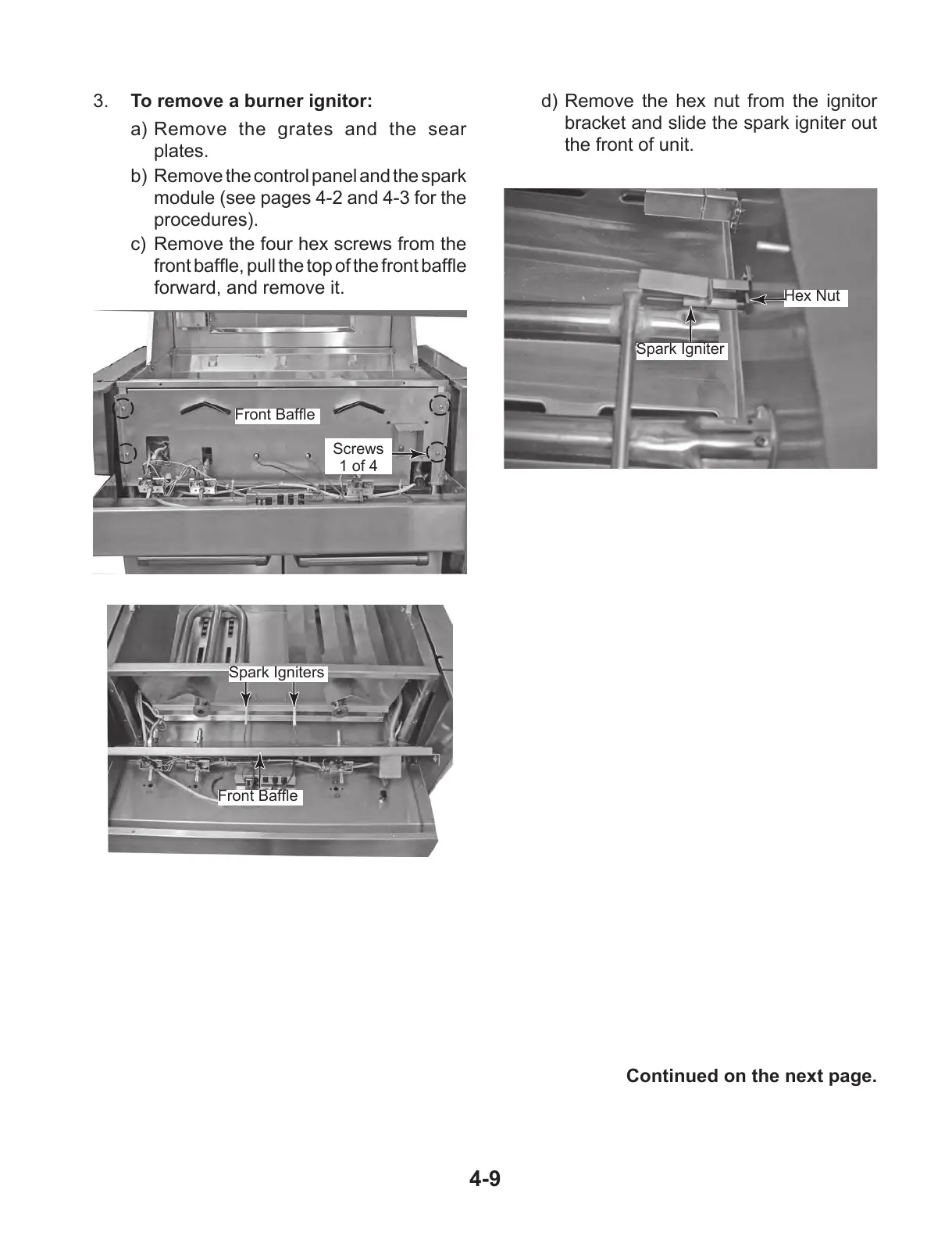

3. To remove a burner ignitor:
a) Remove the grates and the sear
plates.
b) Remove the control panel and the spark
module (see pages 4-2 and 4-3 for the
procedures).
c) Remove the four hex screws from the
frontbafe,pullthetopofthefrontbafe
forward, and remove it.
d) Remove the hex nut from the ignitor
bracket and slide the spark igniter out
the front of unit.
Continued on the next page.
FrontBafe
Screws
1 of 4
FrontBafe
Spark Igniters
Spark Igniter
Hex Nut
