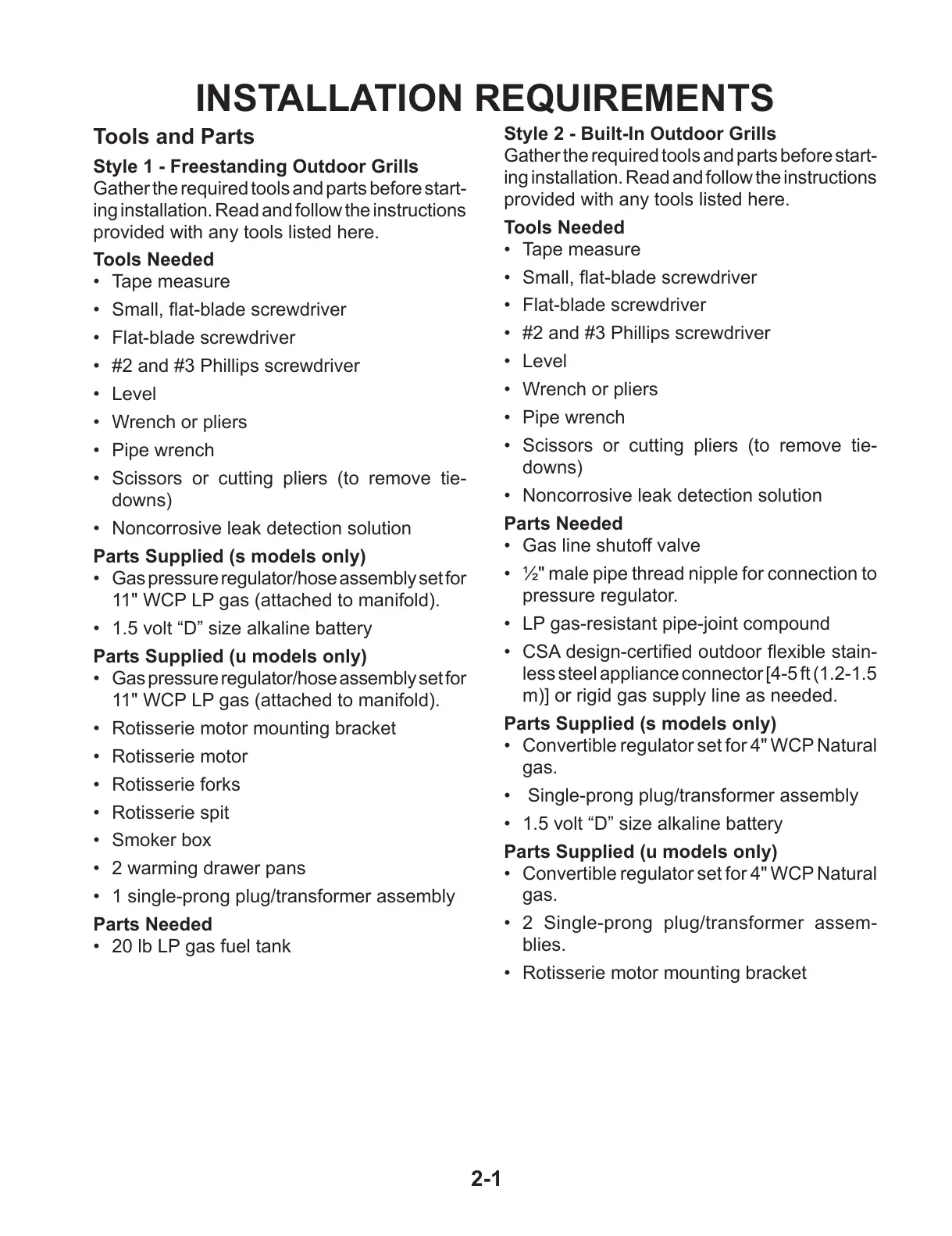

INSTALLATION REQUIREMENTS
Tools and Parts
Style 1 - Freestanding Outdoor Grills
Gather the required tools and parts before start-
ing installation. Read and follow the instructions
provided with any tools listed here.
Tools Needed
• Tape measure
• Small, at-blade screwdriver
• Flat-blade screwdriver
• #2 and #3 Phillips screwdriver
• Level
• Wrench or pliers
• Pipe wrench
• Scissors or cutting pliers (to remove tie-
downs)
• Noncorrosive leak detection solution
Parts Supplied (s models only)
• Gas pressure regulator/hose assembly set for
11" WCP LP gas (attached to manifold).
• 1.5 volt “D” size alkaline battery
Parts Supplied (u models only)
• Gas pressure regulator/hose assembly set for
11" WCP LP gas (attached to manifold).
• Rotisserie motor mounting bracket
• Rotisserie motor
• Rotisserie forks
• Rotisserie spit
• Smoker box
• 2 warming drawer pans
• 1 single-prong plug/transformer assembly
Parts Needed
• 20 lb LP gas fuel tank
Style 2 - Built-In Outdoor Grills
Gather the required tools and parts before start-
ing installation. Read and follow the instructions
provided with any tools listed here.
Tools Needed
• Tape measure
• Small, at-blade screwdriver
• Flat-blade screwdriver
• #2 and #3 Phillips screwdriver
• Level
• Wrench or pliers
• Pipe wrench
• Scissors or cutting pliers (to remove tie-
downs)
• Noncorrosive leak detection solution
Parts Needed
• Gas line shutoff valve
• ½" male pipe thread nipple for connection to
pressure regulator.
• LP gas-resistant pipe-joint compound
• CSA design-certied outdoor exible stain-
less steel appliance connector [4-5 ft (1.2-1.5
m)] or rigid gas supply line as needed.
Parts Supplied (s models only)
• Convertible regulator set for 4" WCP Natural
gas.
• Single-prong plug/transformer assembly
• 1.5 volt “D” size alkaline battery
Parts Supplied (u models only)
• Convertible regulator set for 4" WCP Natural
gas.
• 2 Single-prong plug/transformer assem-
blies.
• Rotisserie motor mounting bracket
