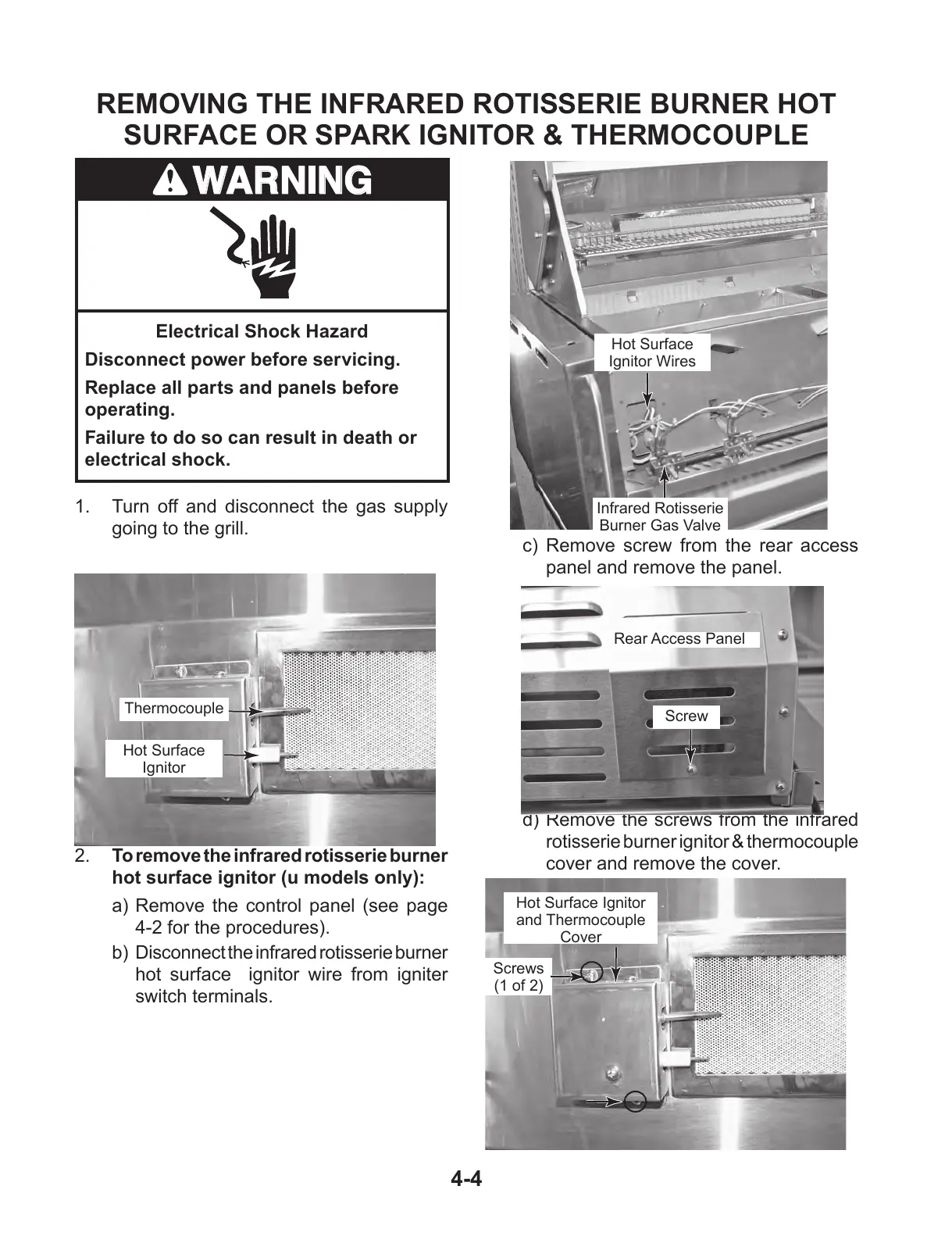

REMOVING THE INFRARED ROTISSERIE BURNER HOT
SURFACE OR SPARK IGNITOR & THERMOCOUPLE
1. Turn off and disconnect the gas supply
going to the grill.
c) Remove screw from the rear access
panel and remove the panel.
d) Remove the screws from the infrared
rotisserie burner ignitor & thermocouple
cover and remove the cover.
2. To remove the infrared rotisserie burner
hot surface ignitor (u models only):
a) Remove the control panel (see page
4-2 for the procedures).
b) Disconnect the infrared rotisserie burner
hot surface ignitor wire from igniter
switch terminals.
Hot Surface
Ignitor
Thermocouple
Hot Surface
Ignitor Wires
Infrared Rotisserie
Burner Gas Valve
Screw
Hot Surface Ignitor
and Thermocouple
Cover
Screws
(1 of 2)
Rear Access Panel
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
