4-2

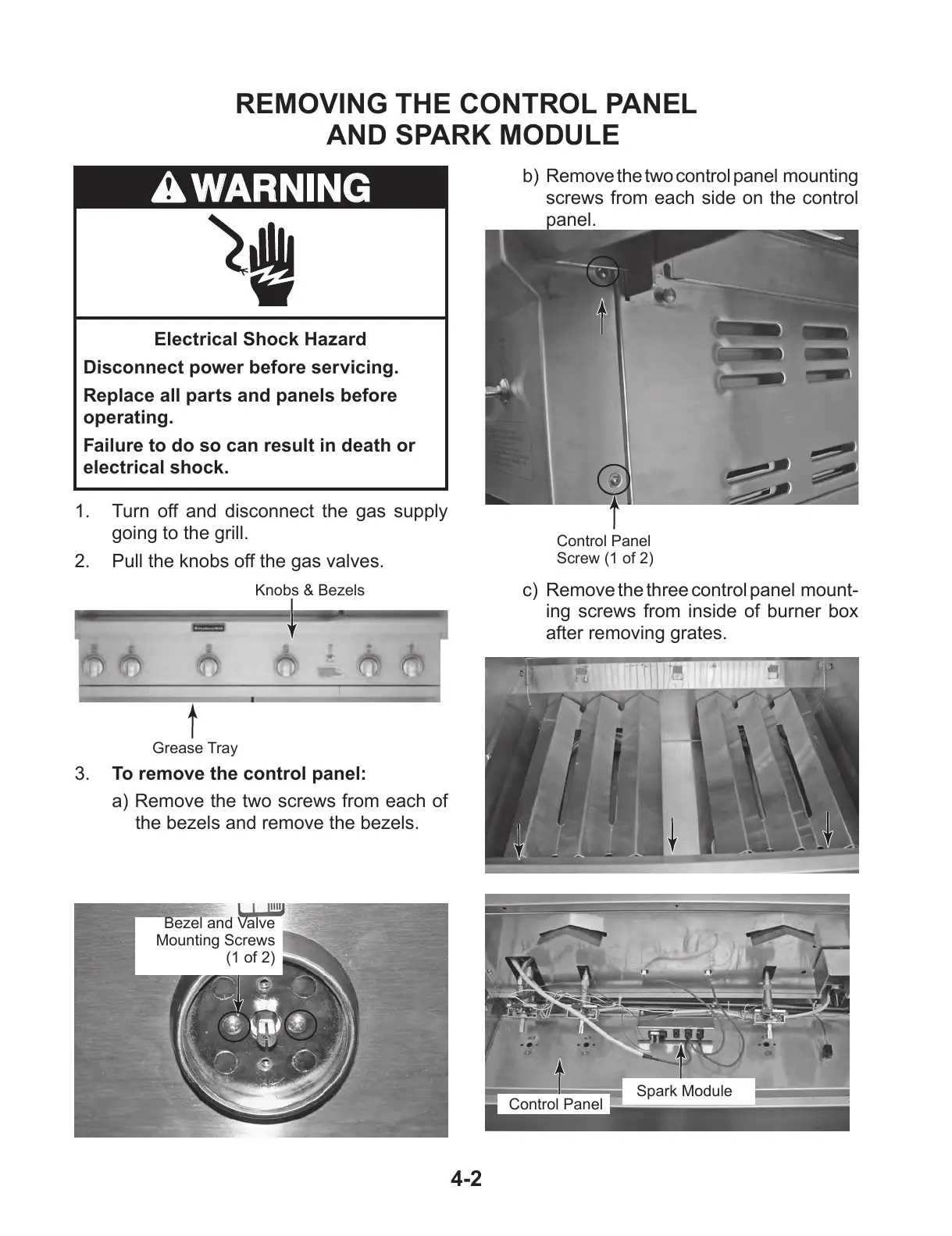

REMOVING THE CONTROL PANEL
AND SPARK MODULE
3. To remove the control panel:
a) Remove the two screws from each of
the bezels and remove the bezels.
Control Panel
Screw (1 of 2)
Spark Module
1. Turn off and disconnect the gas supply
going to the grill.
2. Pull the knobs off the gas valves.
Knobs & Bezels
Grease Tray
b) Remove the two control panel mounting
screws from each side on the control
panel.
c) Remove the three control panel mount-
ing screws from inside of burner box
after removing grates.
Control Panel
Bezel and Valve
Mounting Screws
(1 of 2)
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
To Next Page
