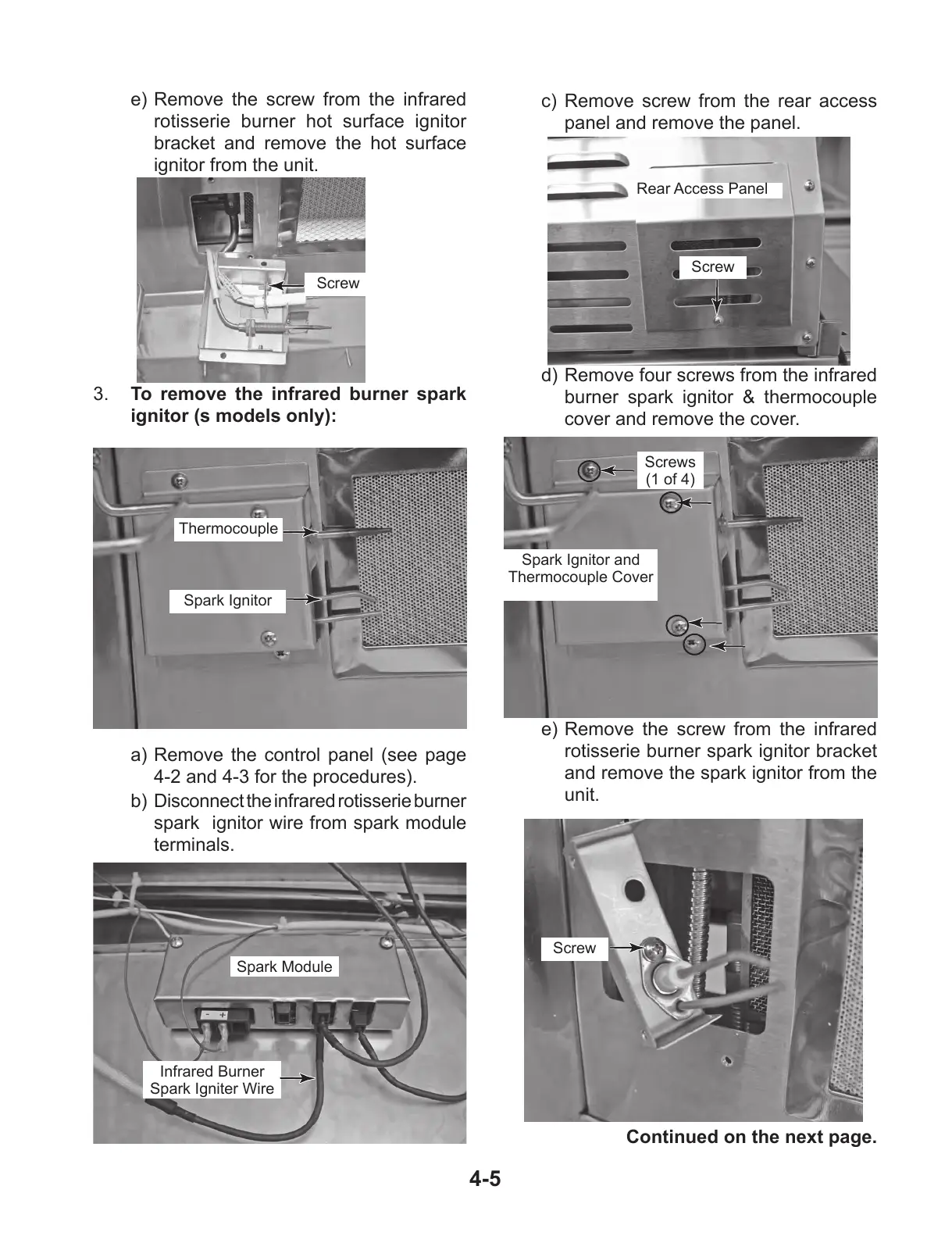

4-5
e) Remove the screw from the infrared
rotisserie burner hot surface ignitor
bracket and remove the hot surface
ignitor from the unit.
Screw
3. To remove the infrared burner spark
ignitor (s models only):
Thermocouple
Spark Ignitor
a) Remove the control panel (see page
4-2 and 4-3 for the procedures).
b) Disconnect the infrared rotisserie burner
spark ignitor wire from spark module
terminals.
Spark Module
Infrared Burner
Spark Igniter Wire
c) Remove screw from the rear access
panel and remove the panel.
Screw
d) Remove four screws from the infrared
burner spark ignitor & thermocouple
cover and remove the cover.
Spark Ignitor and
Thermocouple Cover
Screws
(1 of 4)
e) Remove the screw from the infrared
rotisserie burner spark ignitor bracket
and remove the spark ignitor from the
unit.
Screw
Rear Access Panel
Continued on the next page.
