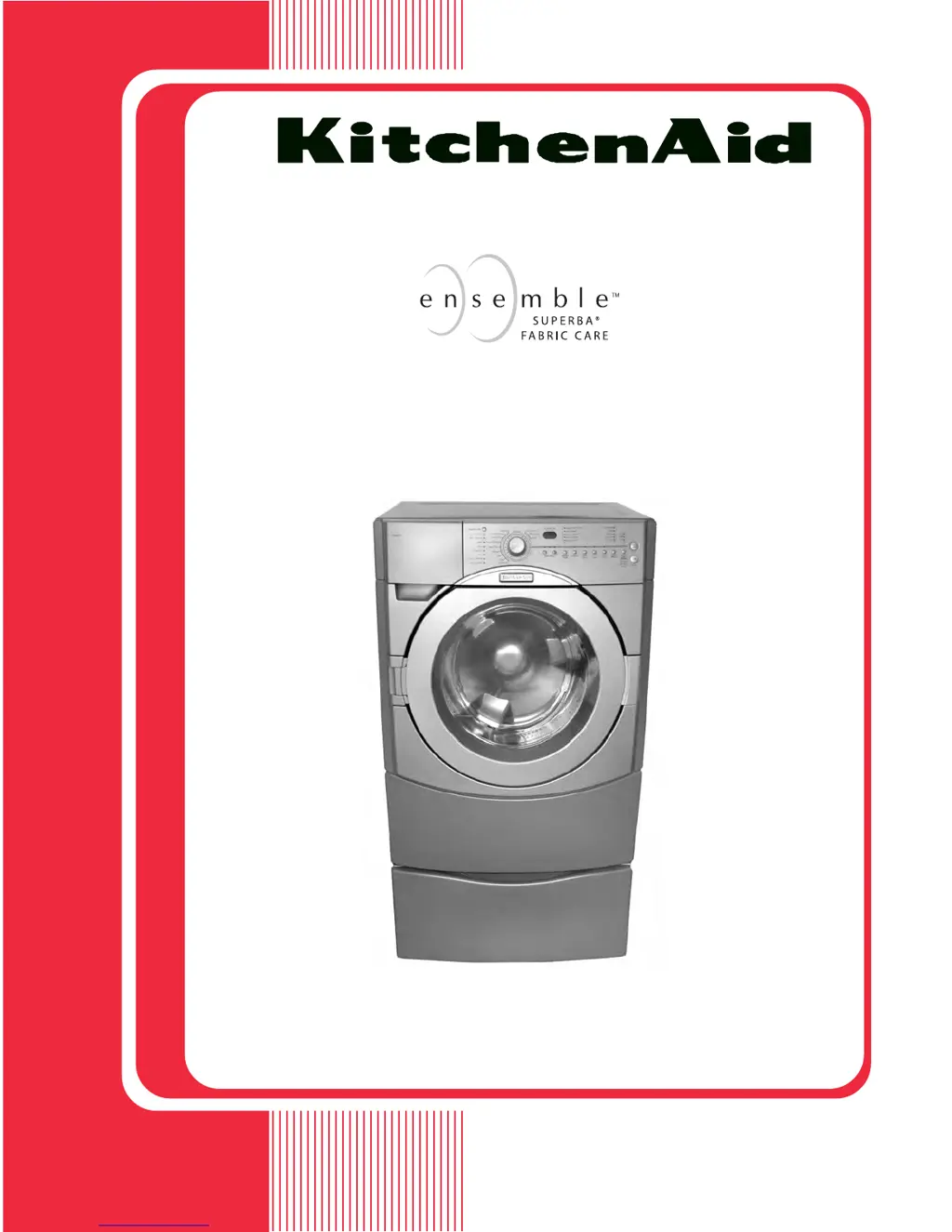

KitchenAid KHWS01PMT / WH User Manual (English)

Questions and Answers:

J
Jonathan StricklandAug 22, 2025
Why does my KitchenAid KHWS01PMT / WH take so long to drain?
- K
  Kyle GrantAug 22, 2025
  If your KitchenAid Washer is taking too long to drain, start by checking the drain hose to ensure it's free from plugs or kinks. Next, verify the electrical connections at the pump and confirm the pump is running. Also, inspect the drain pump filter for any foreign objects that may be causing a blockage. If the drain time exceeds eight minutes, the water valves will be turned off and an error code will be displayed. If these steps don't solve the issue, consider replacing the pump.
A
aliciayoungAug 25, 2025
What to do if my KitchenAid KHWS01PMT / WH is overflowing?
- R
  Robert WilsonAug 25, 2025
  If your KitchenAid Washer is overflowing, you should first check the drain hose for any plugs or kinks. Next, inspect the wire harness connections to the drain pump, pressure switch, and Central Control Unit (CCU). Also, check and clean the drain pump filter for any foreign objects. Check for drain pump failure. Ensure the inlet valve is shutting off properly and that the pressure switch is operating correctly. An overflow condition will occur if the overflow contact on the pressure switch is closed for more than 60 seconds.
A
Ashley ChangAug 26, 2025
How to fix a drive motor tachometer error on my KitchenAid KHWS01PMT / WH Washer?
- J
  Jerome McdanielAug 26, 2025
  If you're getting a drive motor tachometer error on your KitchenAid Washer, the control is unable to properly detect motor speed and the machine will shut down. Ensure that the shipping system, including bolts, spacers, and cables, has been completely removed. Check the wire harness connections between the drive motor and the Motor Control Unit (MCU), as well as between the MCU and the Central Control Unit (CCU). Finally, check the drive motor for powered rotations.
K
Karen BradshawAug 28, 2025
What causes a water temperature sensor error on my KitchenAid KHWS01PMT / WH Washer?
- M
  maryhansonAug 28, 2025
  If your KitchenAid Washer displays a water temperature sensor error, start by checking the water temperature sensor and its connections. Also, check the resistance of the heating element, if your model has one; an abnormal reading would be infinity. The 'F/05' error code will be displayed if, during the water heating step in the wash cycle, the water temperature sensor (NTC) value is out of range.
P
Patrick AguirreAug 30, 2025
How do I resolve a serial communication error on my KitchenAid Washer?
- D
  Denise WatkinsAug 30, 2025
  If you're encountering a serial communication error with your KitchenAid Washer, it means that communication between the Central Control Unit (CCU) and the Motor Control Unit (MCU) is not being sent correctly. Check the wire harness connections to the MCU, the motor, and the Central Control Unit (CCU). Also, check the drive system for any worn or failed components. Ensure that the serial harness at the MCU is not mounted upside down, with the wires to the left when facing the MCU connectors.
H
Henry JonesSep 1, 2025
What causes a Motor Control Unit heat sink thermal trip in my KitchenAid Washer?
- C
  Christina GarzaSep 1, 2025
  If your KitchenAid Washer experiences a Motor Control Unit (MCU) heat sink thermal trip, the thermal protector on the MCU heat sink has become too hot, stopping motor functions. Ensure the unit is properly installed, not near a heat source, and has adequate ventilation. Check the wire harness connections to the MCU, the motor, and the Central Control Unit (CCU). Also, inspect the drive system for any worn or failed components.
C
Charles CameronSep 3, 2025
How to troubleshoot a dispenser circuit error on a KitchenAid KHWS01PMT / WH Washer?
- S
  Susan BeckSep 3, 2025
  If you're getting a dispenser circuit error on your KitchenAid Washer, it indicates that the dispenser motor cannot be driven to its proper position. Check the mechanical linkage from the dispenser motor to the top of the dispenser. Also, inspect the wire harness connections to the dispenser motor and the Central Control Unit (CCU).
M
Michael WeaverSep 5, 2025
What causes a Door Lock Error on my KitchenAid Washer?
- P
  Pamela FloydSep 5, 2025
  A Door Lock Error on your KitchenAid Washer indicates that the door cannot be locked. Check the door switch/lock unit.
M
Mr. William JohnsonSep 8, 2025
What to do if I get a Door Unlock Error on my KitchenAid Washer?
- E
  Elizabeth VargasSep 8, 2025
  A Door Unlock Error on your KitchenAid Washer means the door cannot be unlocked. Check the door switch/lock unit for any foreign objects.
E
Erika FloresSep 10, 2025
What does a CCU/Touchpad/LED assembly error mean on my KitchenAid KHWS01PMT / WH?
- M
  Mrs. Angela RobertsSep 10, 2025
  This error on your KitchenAid Washer occurs if the touchpad/LED assembly is unable to transmit/receive data to/from the central control unit (CCU). Check the touchpad/LED assembly by selecting different cycles and changing the modifiers and options available to confirm the touchpad/LED is responding.
