4-19

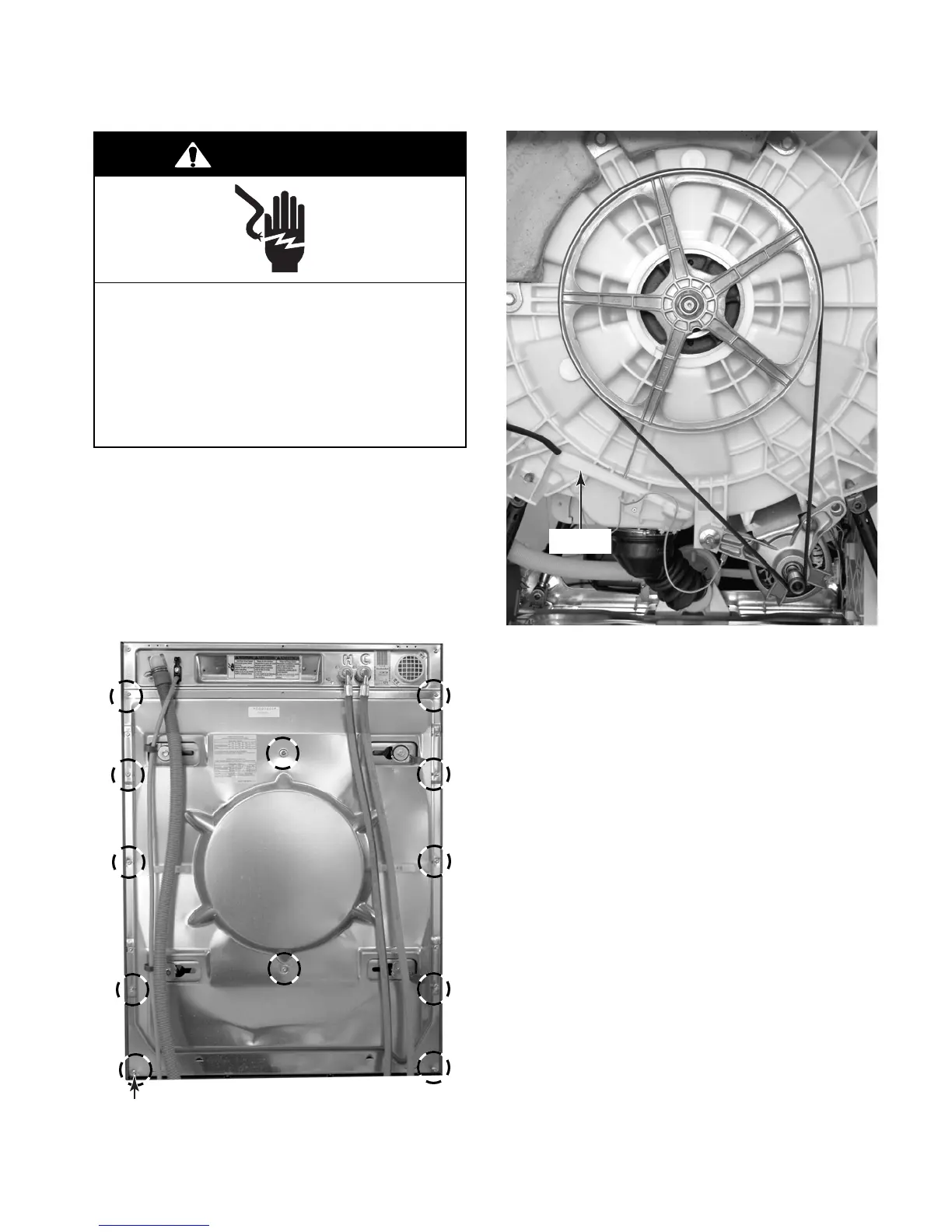

REMOVING THE AIRTRAP
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Pull the washer away from the wall so that
you can access the rear panel.
4. Remove the twelve T-20 hex-head torx
screws from the rear panel and remove
the panel from the washer.
Rear Panel Screw (1 of 12)
5. Pull the pressure tube off the airtrap fitting.
6. Remove the T-10 torx screws from the
airtrap.
7. Press the locking arm to unlock the airtrap
and pull it back and off the tub. NOTE:
Replace the rubber o-ring if it is cracked or
worn.
Airtrap
To Next Page
