4-4

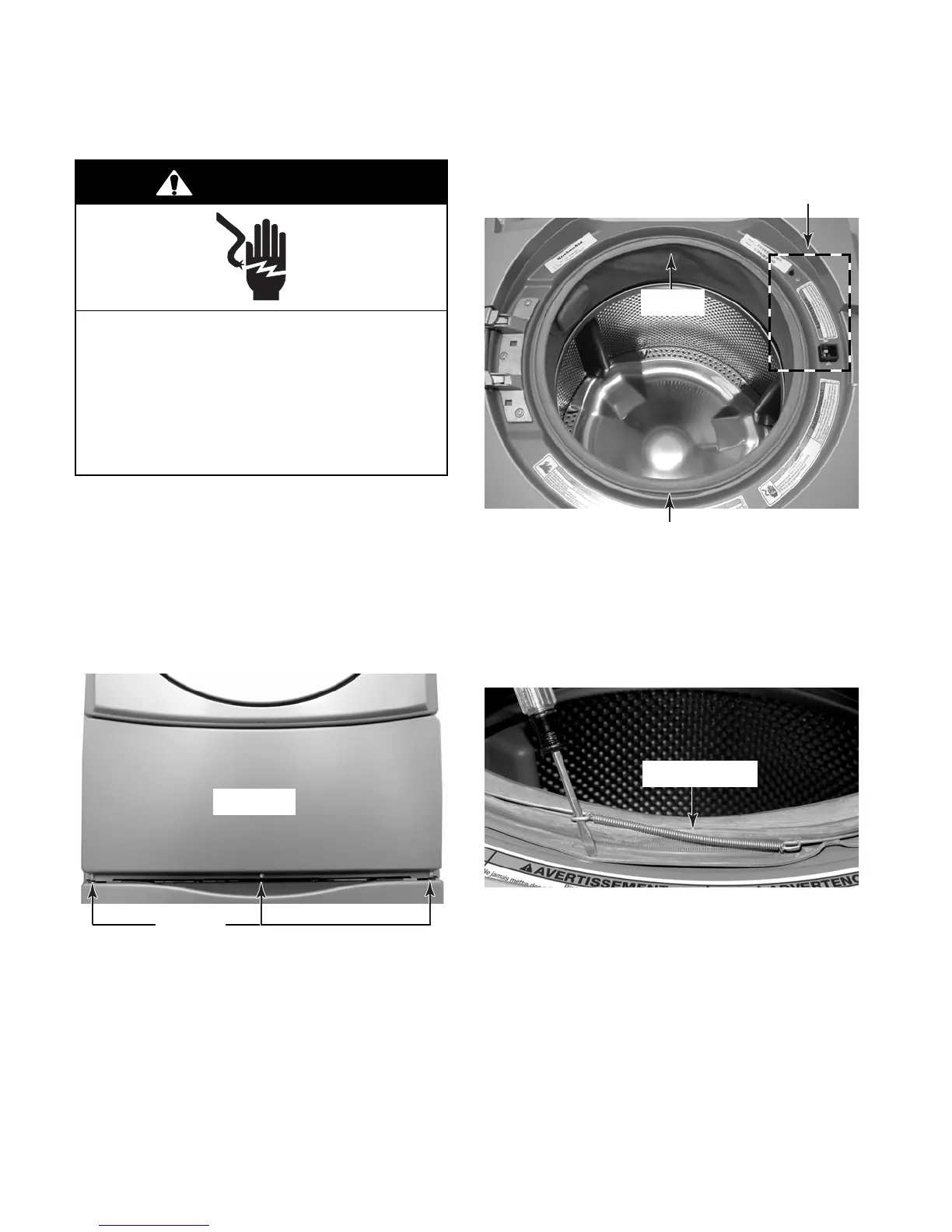

REMOVING THE DOOR LOCK / SWITCH ASSEMBLY,
AND THE FRONT PANEL & BELLOWS
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the top cover and the console
(see page 4-2 for the procedures).
4. Remove the three T-20 hex-head torx
screws from the toe panel and remove the
panel.
Toe Panel
Screws
6. Starting at the bottom, use a small screw-
driver, and pry the retaining wire from
around the front of the bellows. NOTE:
There is a tension spring at the bottom of
the wire that can be separated to remove
the wire.
5. Open the washer door.
Door Lock/Switch Assembly
Bellows
Retaining Wire
Tension Spring
To Next Page
