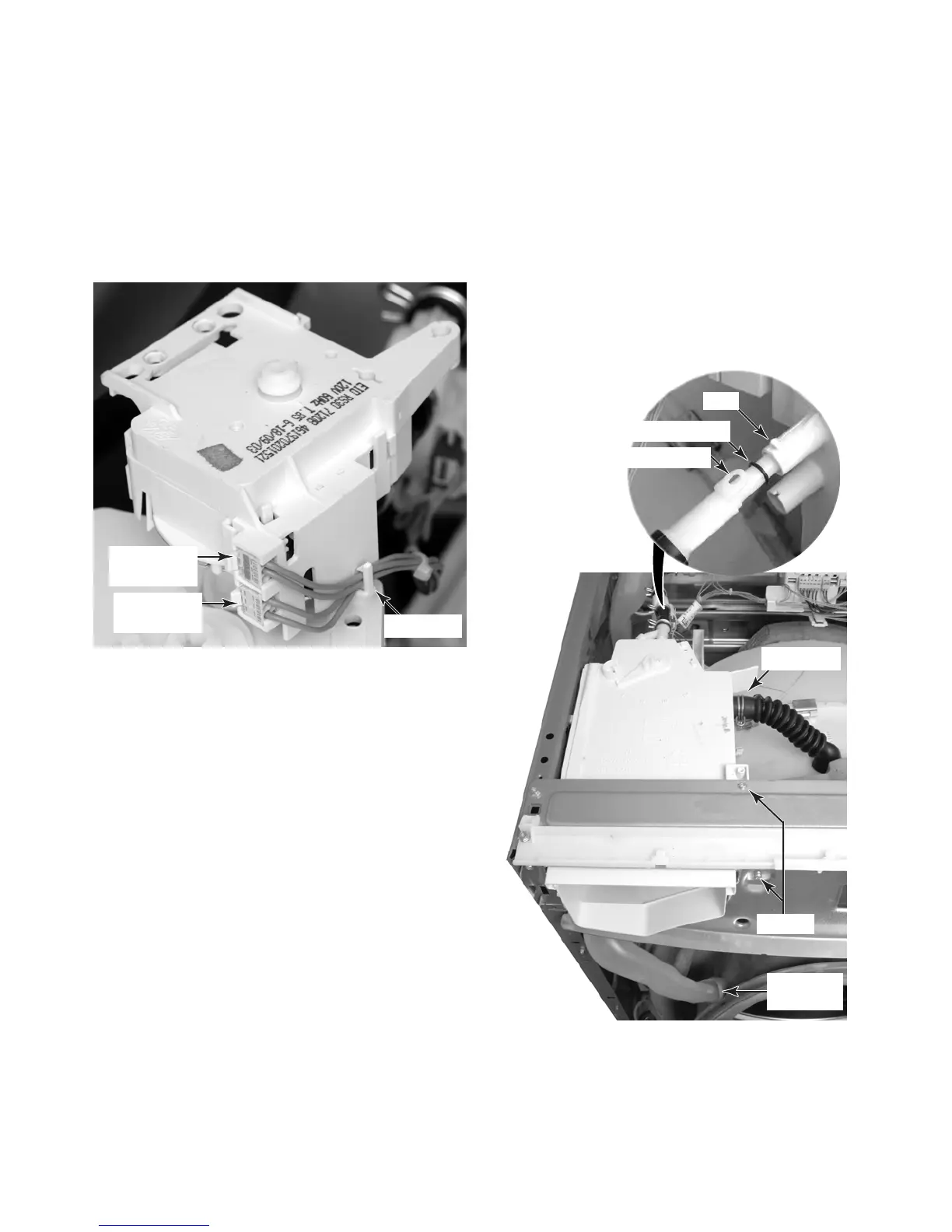

d) Remove the motor and switch wires
from the wire clip.
e) Disconnect the two wire connectors
from the motor terminals. NOTE: The
connector with the blue stripe (motor
connector) is installed above the con-
nector with no color indicator (dispenser
switch connector).
5. To remove the detergent dispenser as-
sembly:
a) Remove the front panel from the washer
(see pages 4-4 and 4-5 for the proce-
dure).
b) Remove the detergent dispenser mo-
tor (see step 4).
Wire Clip
c) Use a small screwdriver and raise the
locking arm so that it clears the tab.
Pull the inlet hose connector and rub-
ber o-ring out of the detergent dis-
penser.
d) Loosen the clamp and pull the tub hose
from the detergent dispenser.
e) Remove the main inlet tube from the
bellows.
f) Remove the two screws from the de-
tergent dispenser and remove the dis-
penser from the washer.
Tub Hose
Detergent
Dispenser
Screws
Main Inlet
Tube
Locking Arm
Rubber O-Ring
Tab
Motor (Blue
Stripe)
Disp. Sw.
(No Color)
