10. Cut the drive motor wire tie from around
the motor wires and pull the cut tie out of
the slot in the standoff. NOTE: Be careful
not to cut any of the wires in the tie.
11. Press the two locking arms down and
disconnect the power connector from the
motor.
12. Disconnect the two green ground wires
from the motor terminals.
2 Ground Wires
Wire Tie
Power Connector

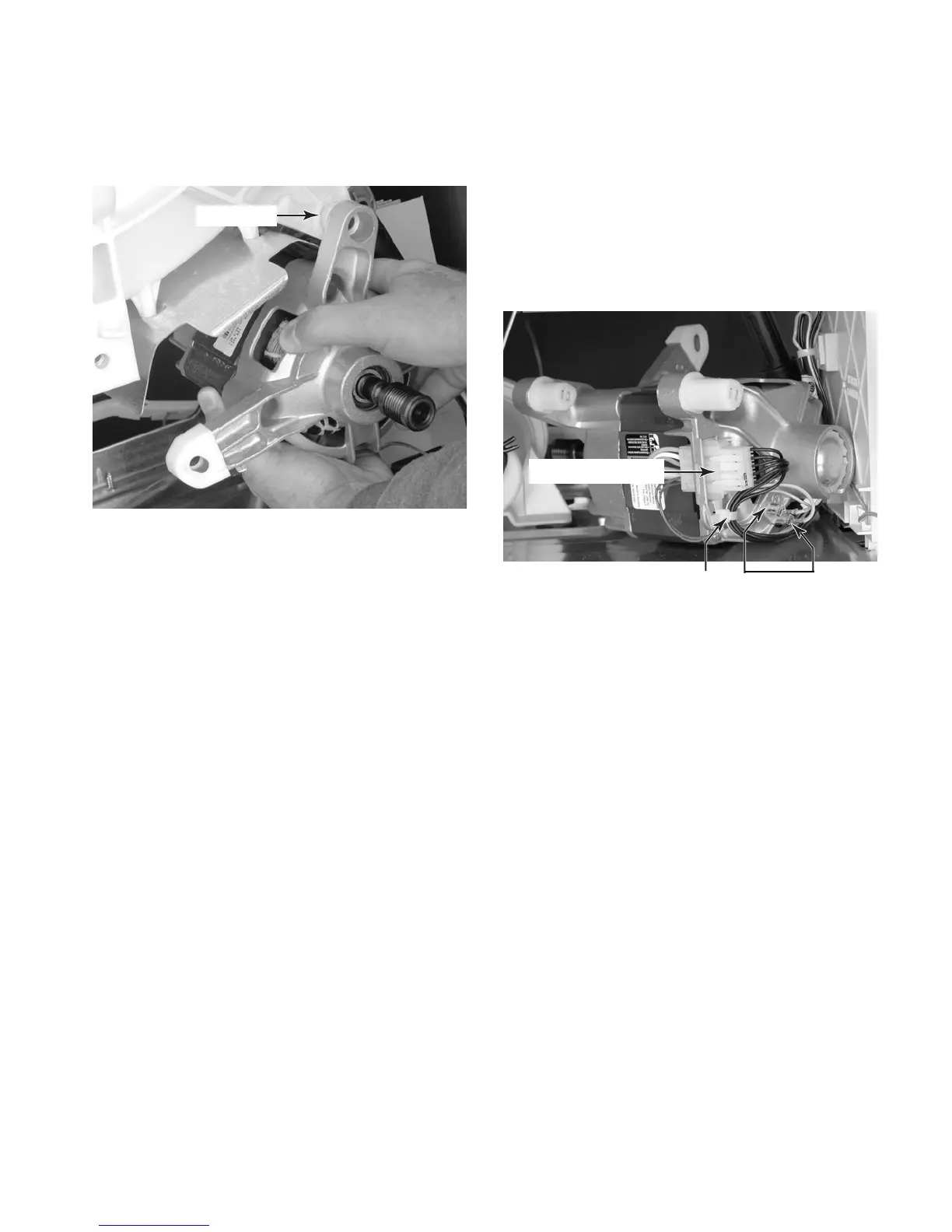

9. Pull the drive motor toward you and re-
move the pivot studs from the tub holes;
then turn the motor around so that you can
access the motor wires.
Pivot Stud
