- 16 -

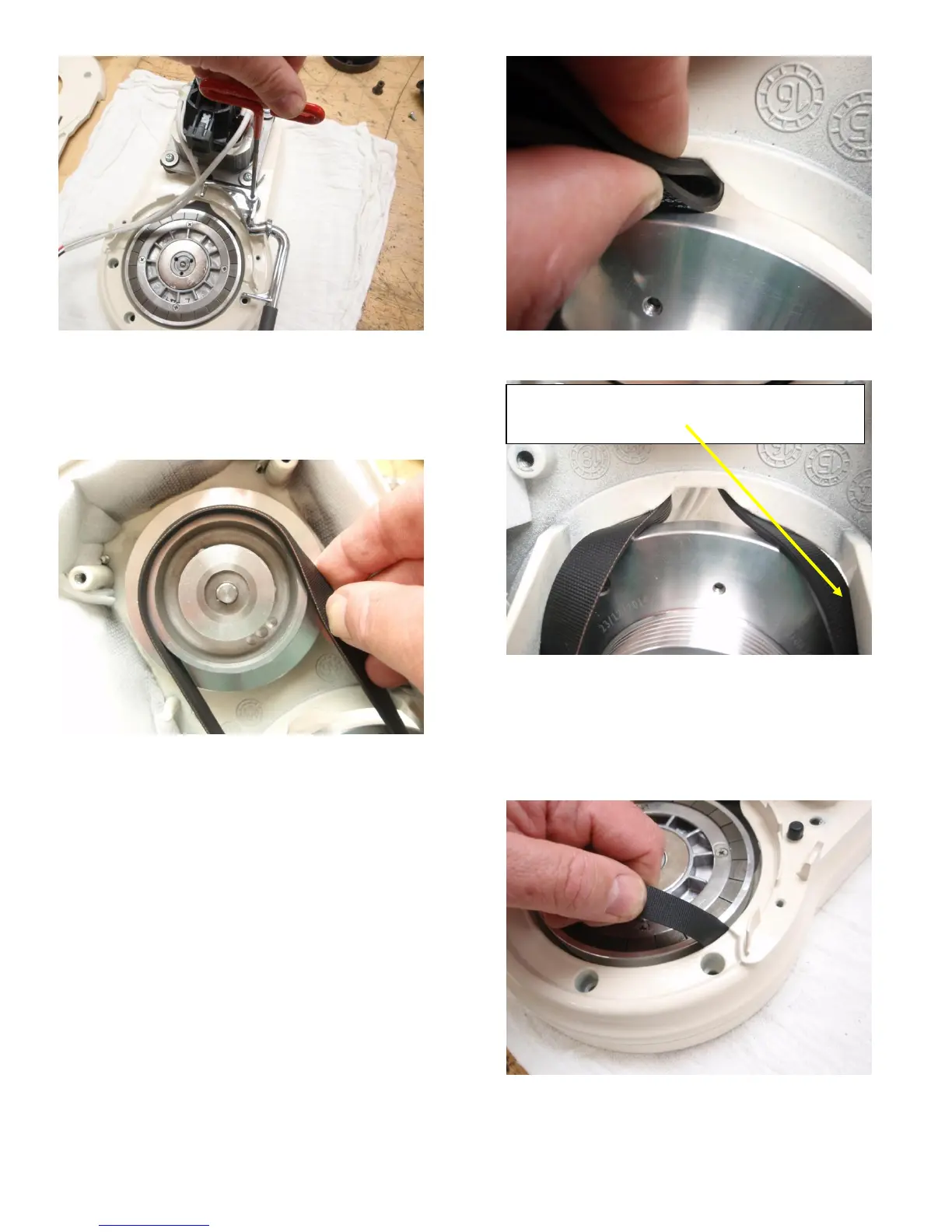

Fig. 33) Remove the jar release lever from the lower housing
33. Invert the unit and remove the belt from the motor
pulley by lifting up on the belt and turning the pulley
to help it up and off of the pulley. It may take several
attempts to get the ribbed belt free from the grooved
pulley (Fig. 34).
Fig. 34) Lift the belt while turning the pulley in the direction
shown to release the belt from the motor pulley. Several
attempts may be needed
34. Tuck the free end of the belt through the opening at
the rear of the front coupler pulley and pull the free
end up to start the belt in the slot on one side of the
pulley and lower housing (Figs. 35 & 36).
Fig. 35) Tuck the belt through the opening near the front
coupler pulley
Fig. 36) Pull enough of the belt through the opening to start
the belt removal process
35. Work one end of the belt around in the slot between
the lower coupler and lower housing (Fig. 37). You
may need to turn the pulley by hand to help it.
Continue around until the belt is free from the front
coupler pulley.
Fig. 37) work the belt around the slot on the outside of the
lower coupler
Start the belt into the slot at either side of the
pulley
