KitchenAid KSB5010 - Lower Housing Disassembly (belt removal and replacement)

- 15 -

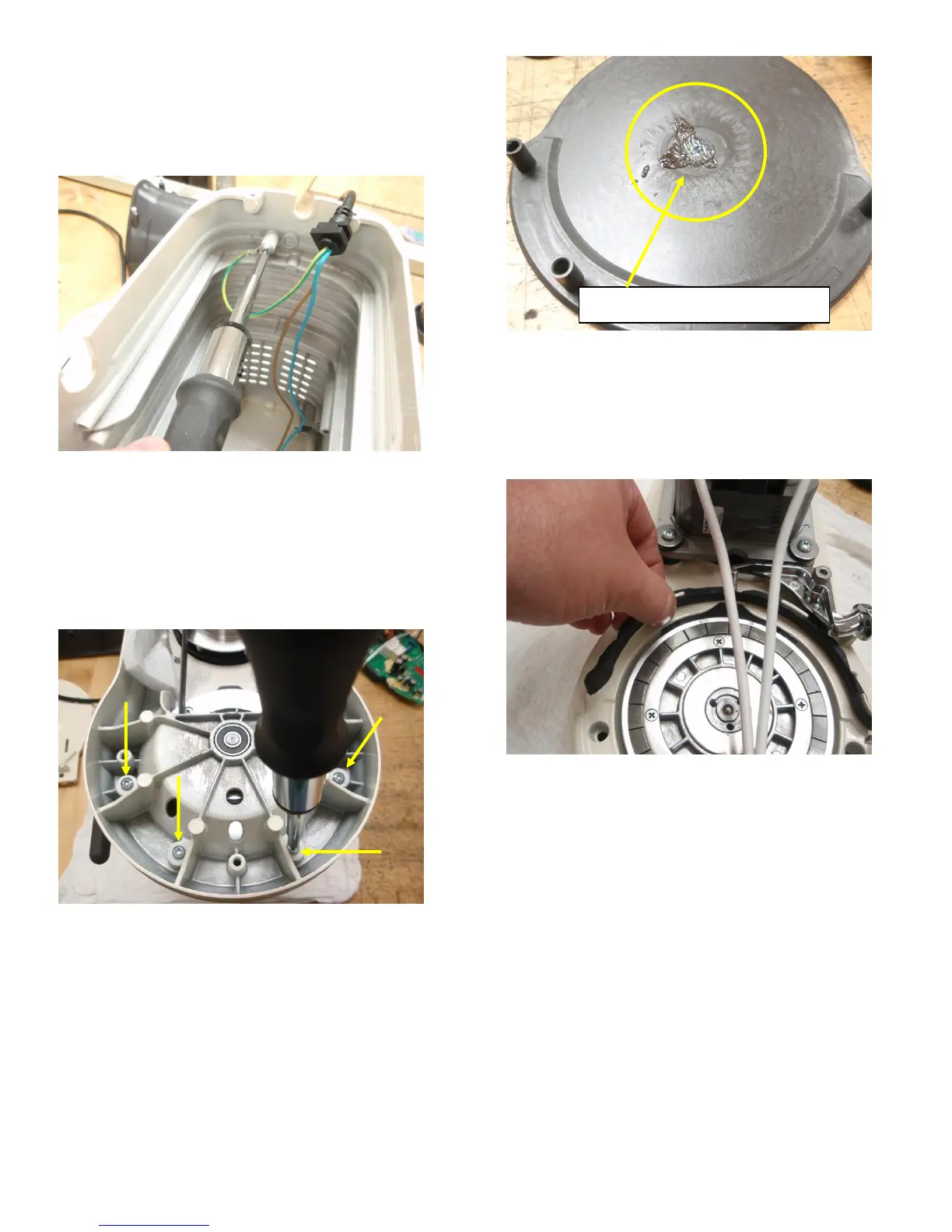

29. Remove the ground wire from the surround by
removing the 8-32 x .375 screw from the ground wire
terminal at the rear of the surround (Fig. 29) and set
the cord with the screw on the workbench.
Fig. 29) Remove the cord ground wire from the surround
housing
Lower Housing Disassembly (belt
removal and replacement)
30. Invert the lower housing and remove the (4) 8-16 x
.562 screws that secure the lower housing cover to
the lower housing (Fig.30).
Fig. 30) Remove the (4) screws that secure the lower housing
cover to the lower housing
Note: There will be a small amount of grease on the
center of the cover. Do not wipe off the grease as it is
necessary for proper operation of the blender coupler
(Fig. 31).
Fig. 31) Do not wipe away the grease in the center of the
lower housing cover. It is needed for proper operation
31. Upright the lower housing assembly and remove the
lower housing front gasket simply by pulling it up
and off the lower housing (Fig. 32)
Fig. 32) Remove the front lower housing gasket
32. Take the jar release lever handle off from the lower
housing by removing the ¼-20 x 1.188 shoulder bolt
using the 5/32” hex wrench (Fig. 33). Be careful to
not lose the wave washer or lever spring when
removing them.
Grease in center of lower cover
