44. Reassemble the Jar Release Lever, with
spring.(Fig.42) Attach the Jar Release and spring
back on the lower with the spring behind the motor
mount.(Fig. 43)

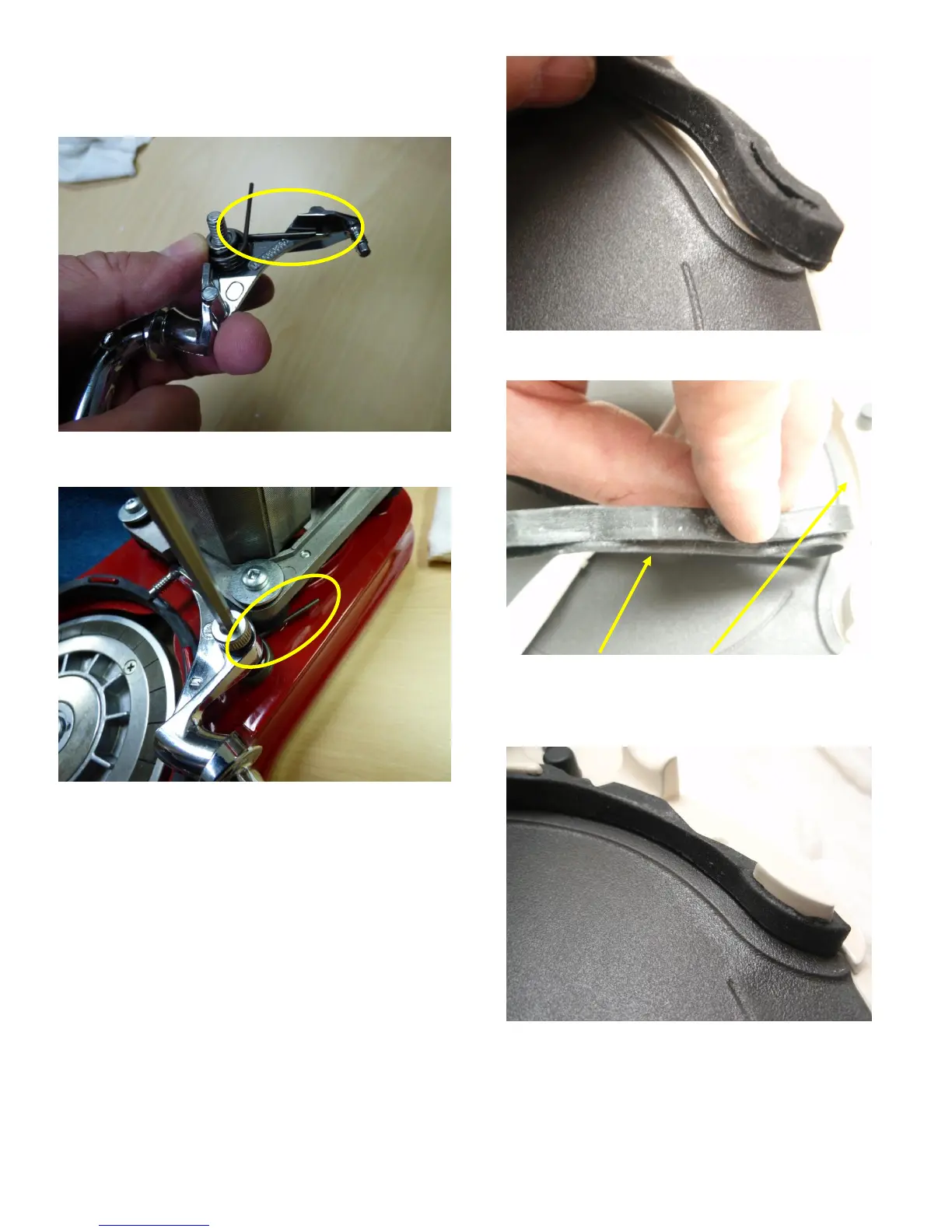

Fig. 42) Spring behind Lip
Fig. 43) Spring behind motor mount
45. Put the lower front housing gasket back in place by
sliding it down over the tabs at the rear of the lower
housing cover (Fig. 44) such that the skirt (Fig. 45)
fits between the lower housing and the gasket.
Fig. 44) put the front housing gasket in place over the tabs on
the lower housing.
Fig. 45) the “skirt” fits into the slot between the lower
housing and gasket (see Fig. 44)
46. When properly installed, the lower housing gasket
will look like Fig. 46.
Fig. 46) The lower housing gasket properly installed on the
lower housing will appear to be a part of the Lower housing
cover.
