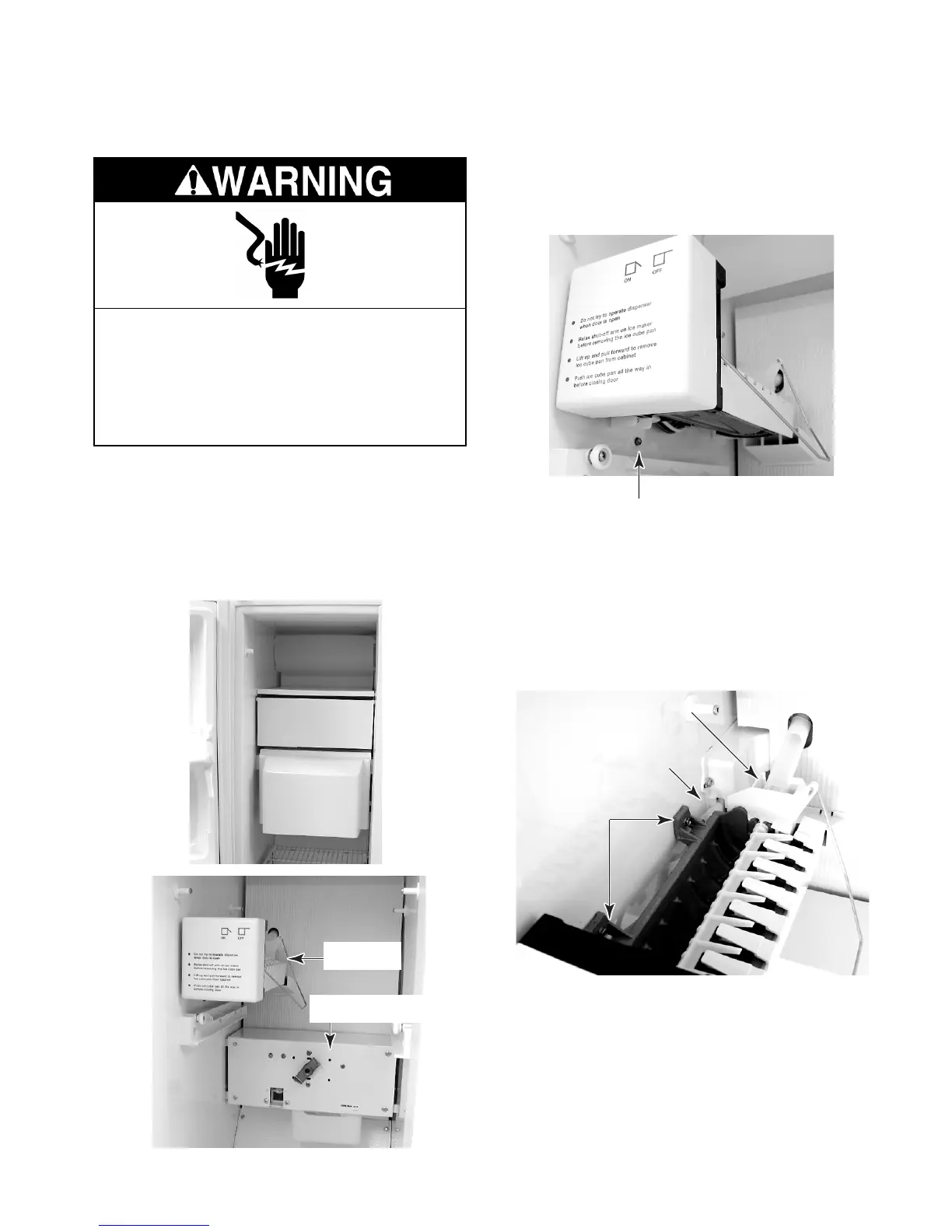

REMOVING THE ICE MAKER AND
THE AUGER MOTOR & CRUSH/CUBE SOLENOID
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so can result in death or
electrical shock.
NOTE: Sharp edges may be present.
1. Unplug the refrigerator or disconnect the
power.
2. Open the freezer door and remove the ice
maker shelf and the ice bin.
Ice Maker Shelf
Ice Bin
3. To remove the ice maker:
a) Remove the bottom screw from the ice
maker bracket.
Ice Maker
Auger Assembly
Bottom Bracket Screw
b) Loosen the two top ice maker bracket
screws.
c) Lift the brackets at the top of the ice
maker off the screws, disconnect the
electrical harness connector, and re-
move the ice maker.
Top Bracket
Screws
Harness Connector
Behind Ice Maker
Water Fill Tube
Inside Fill Cup
NOTE: When you reinstall the ice maker, make
sure that the end of the water fill tube is posi-
tioned inside the fill cup (see the photo above).
