REMOVING THE WATER DISPENSER FILL TUBE
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so can result in death or
electrical shock.

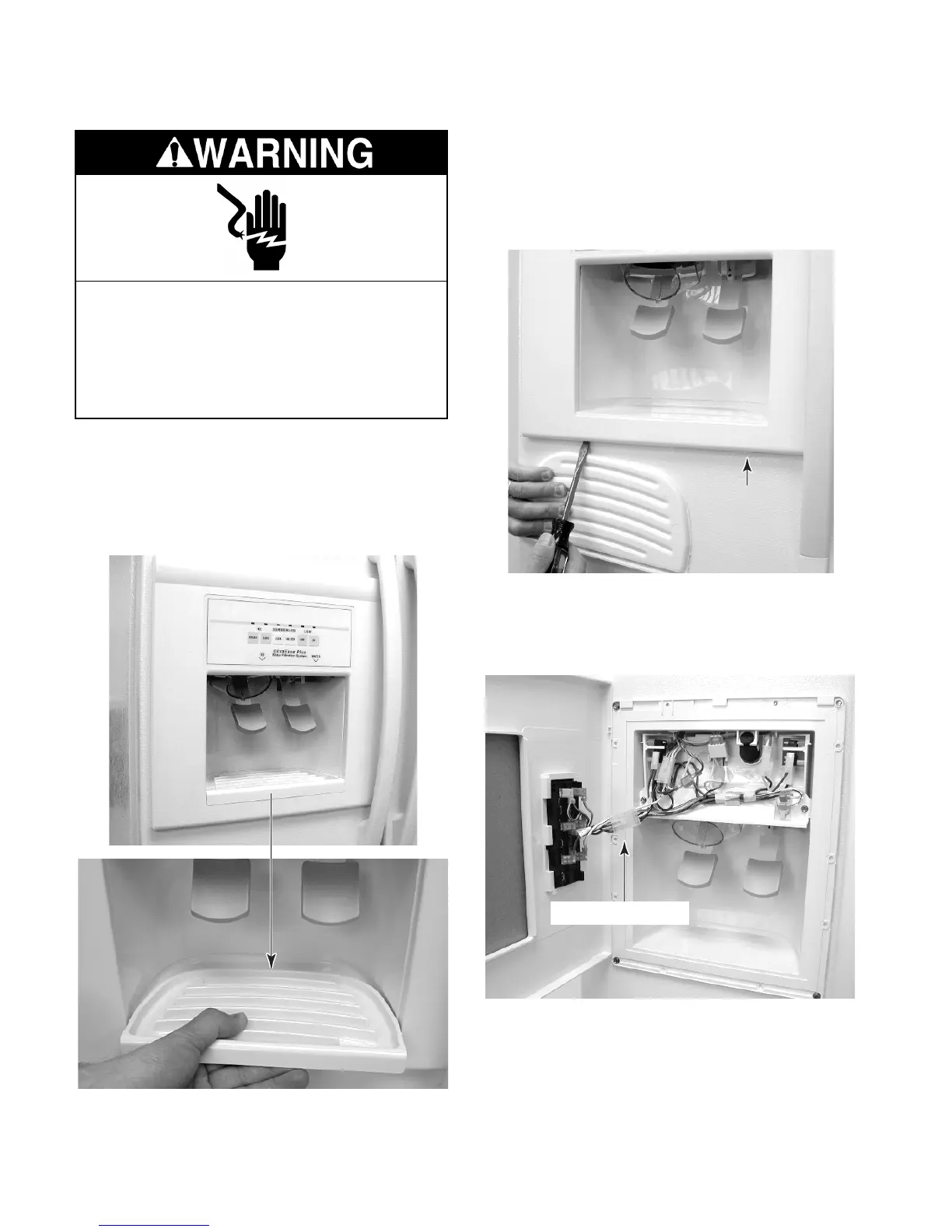

3. Position the drip tray upside down under
the ice & water dispenser control panel,
and pry the bottom edge of the panel out
at the two small slots with a large-bladed
screwdriver.
NOTE: Sharp edges may be present.
1. Unplug the refrigerator or disconnect the
power.
2. Pull out the ice & water dispenser drip tray.
Remove Drip Tray
4. Disconnect the control panel switch con-
nector from the wiring harness and re-
move the panel.
Switch Connector
Slot
Pry Out
To Next Page
