4-15

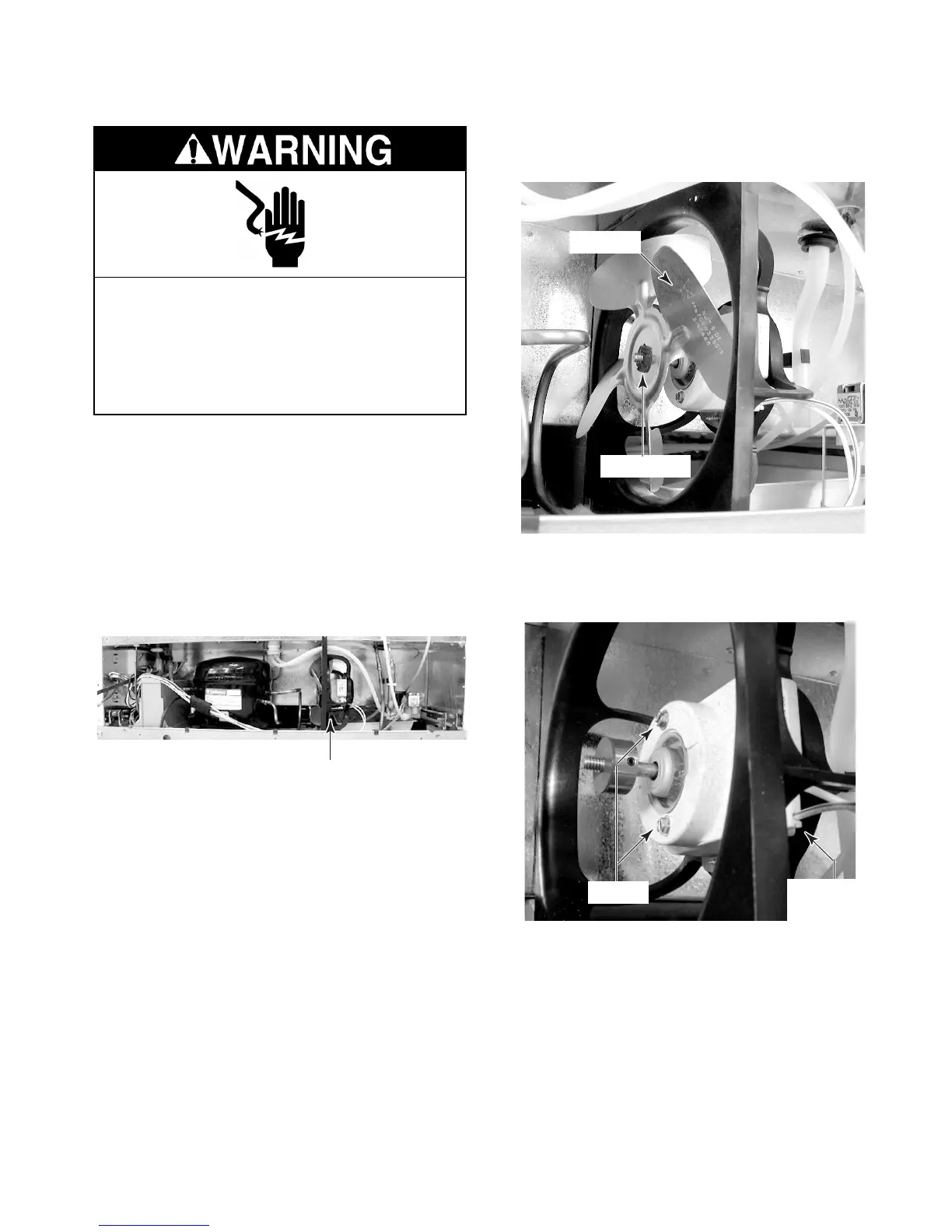

REMOVING THE CONDENSER FAN MOTOR
NOTE: Sharp edges may be present.
1. Unplug the refrigerator or disconnect the
power.
2. Pull the refrigerator out of its mounting
location.
3. At the rear of the unit, remove the hex-
head screws from the unit compartment
cover and remove the cover.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so can result in death or
electrical shock.
5. Remove the two hex-head screws from
the condenser fan motor and remove the
motor.
4. Remove the speed nut from the condenser
fan blade and remove the blade.
Condenser Fan Motor
Speed Nut
6. Disconnect the wire connector from the
condenser fan motor.
NOTE: When you reinstall the condenser fan
blade, make sure you position it with the “Nut
Side” (stamped on the blade) facing the speed
nut (see the top photo).
Screws
Wire
Connector
Nut Side
To Next Page
