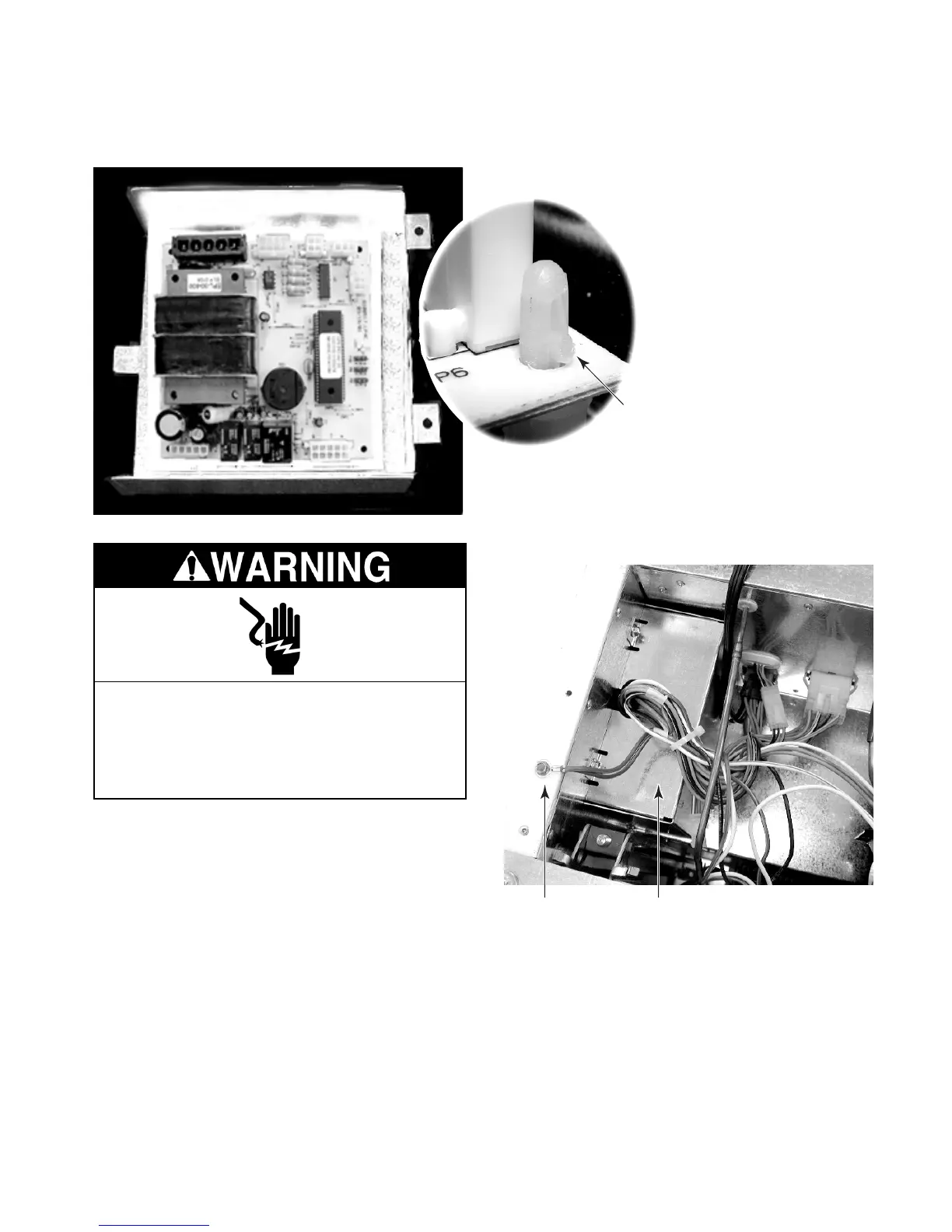

9. Remove the main control board from the
five standoffs. Press in on the locking tab
on each standoff to release the board.
Press In On Tab To Remove
Board From Standoffs
NOTE: When you reinstall the main control
board assembly, be sure to install the green
ground wire at the location shown in the photo.
Electrical Shock Hazard
Connect green ground wire to ground screw.
Failure to do so can result in death or electri-
cal shock.
Ground Wire Main Control Board Assembly
