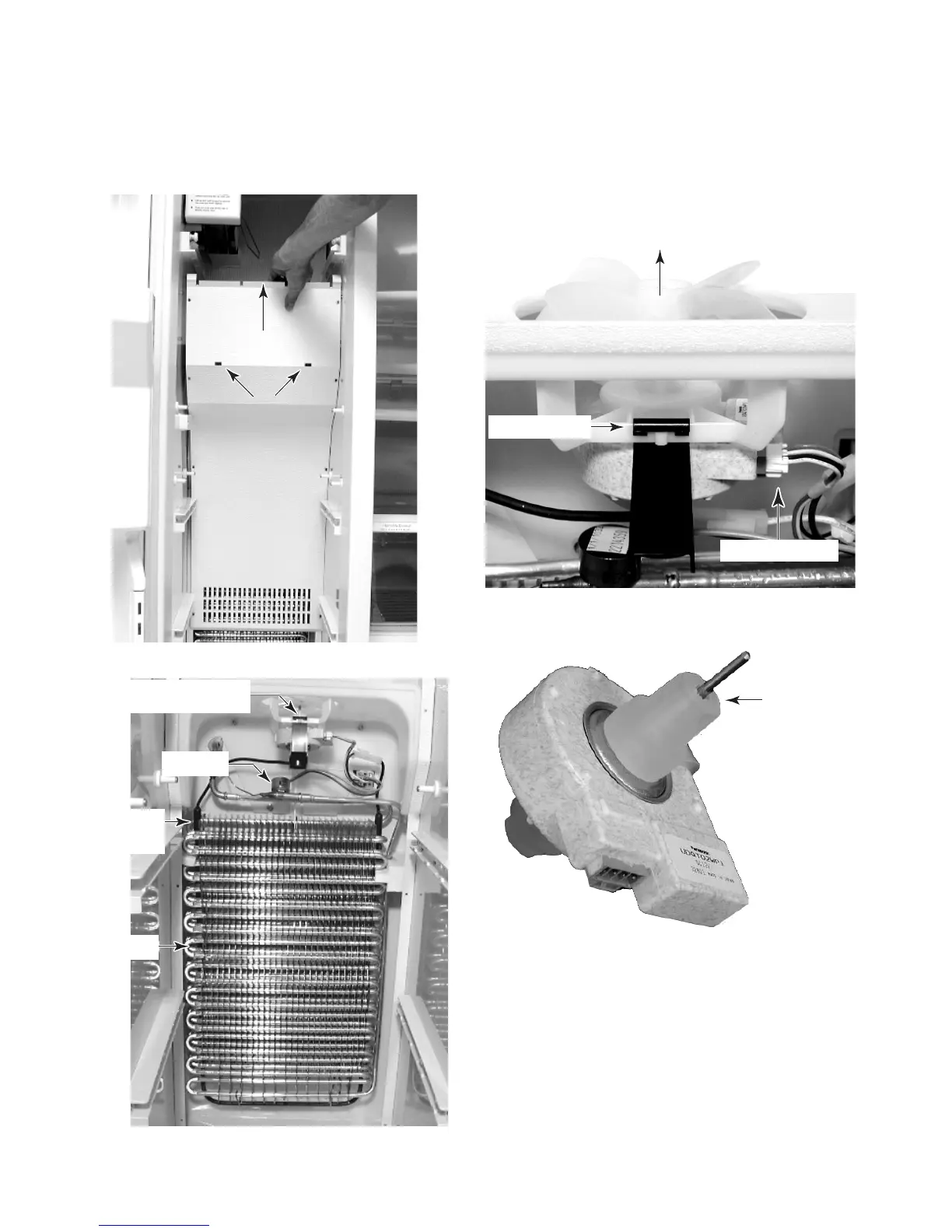

6. Lift and unhook the two evaporator cover
tabs, then lower the cover until the top
edge clears the air duct, and slide the
cover up and out of the freezer.
7. To remove the evaporator fan motor:
a) Pull the fan blade off the motor shaft.
b) Unclip the motor.
c) Disconnect the wire connector from the
terminals.
Defrost
Heater
Bimetal
Evaporator
Evaporator Fan Motor
d) Remove the isolator from the motor.
Pull Fan Blade Off Motor Shaft
Unclip Motor
Wire Connector
Evaporator Fan Motor
Isolator
Unhook Evaporator
Cover Tabs
To Next Page
