2-12
drain
hose
support
water supply
waste
wire
clip
drain hose
connector
waste tee
27-1/2" – 32-1/4"
(70 cm – 82 cm)

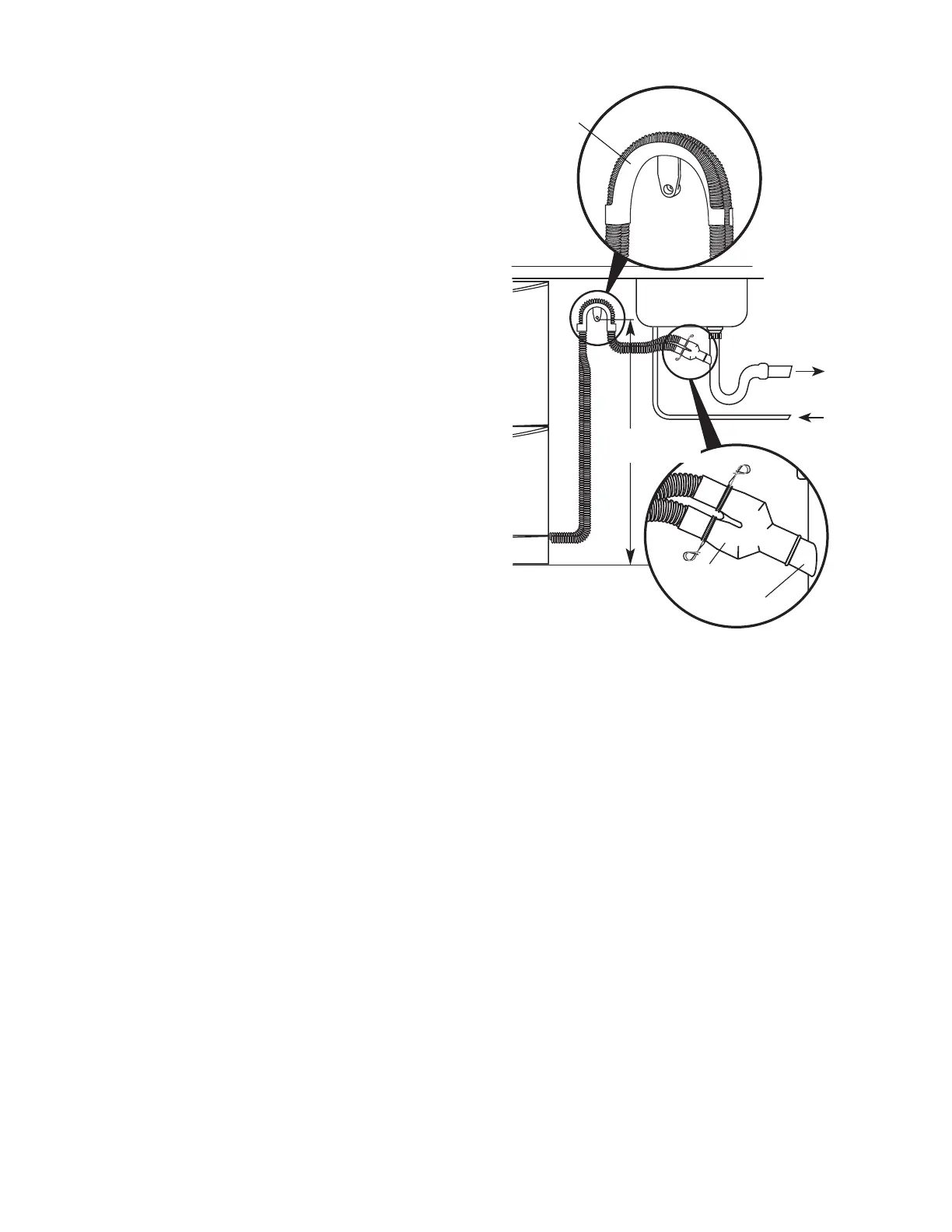

6. Route the drain hose, as shown, and press
the hoses into the drain hose support.
Decide if the drain hoses need to be
trimmed. If so, trim them.
Slip a wire clip over each drain hose. Push
the hoses into the drain hose connector
firmly, 5 clicks.
Position the wire clips between the two
positioning ribs on the drain hose connec-
tor.
Attach the drain hose connector to the
waste tee using the supplied hose clamp.
Attach the drain hose support bracket to
the cabinet with a #8 phillips screw at the
height shown below.
To Next Page
