4-7
REMOVING THE CONTROLLER
1. Unplug dishwasher or disconnect power.
2. Turn off the water going to the dishwasher.
3. Disconnect the drain line from the dish-
washer.
4. Remove the door panel from the drawer
(see page 4-4 for the procedure).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING

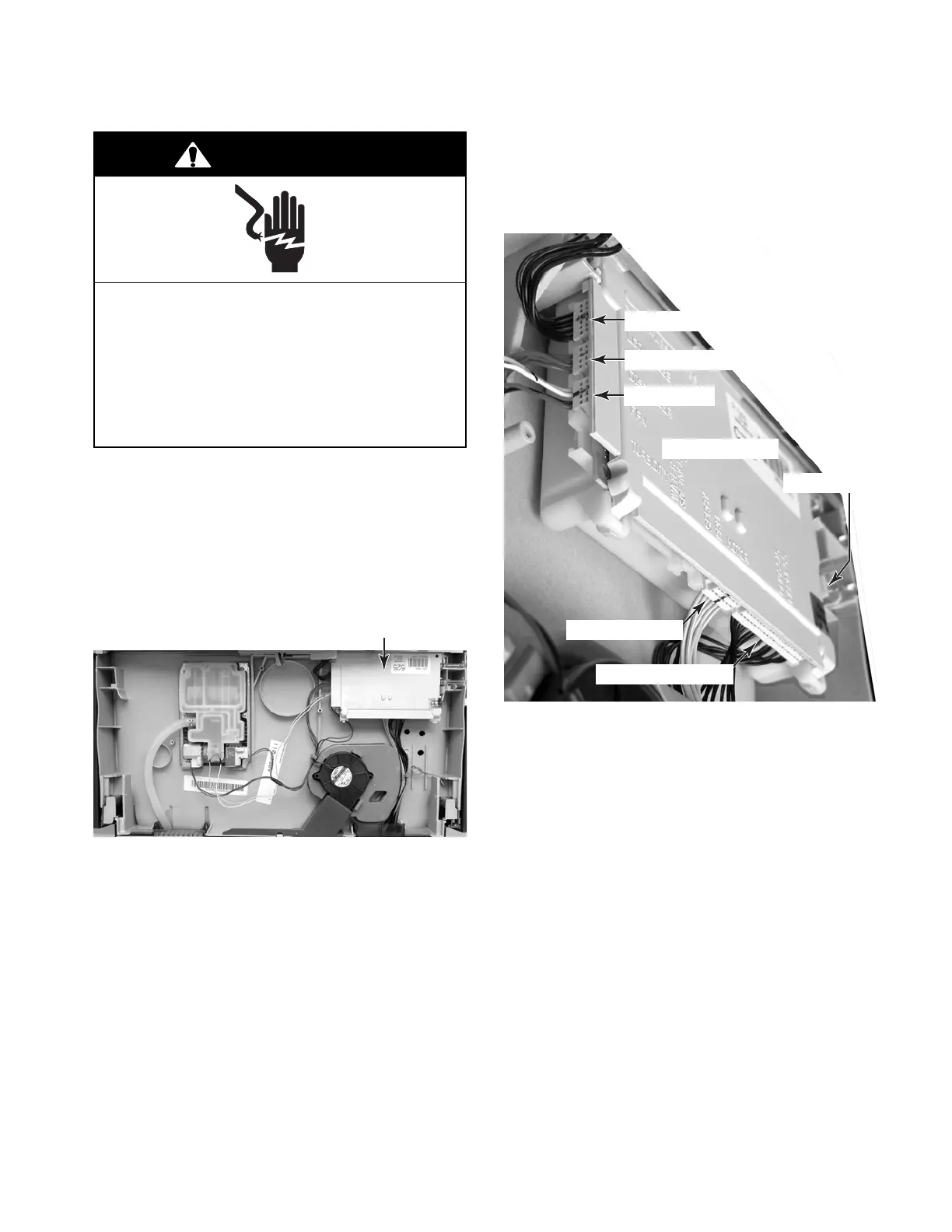

5. Pull the five connectors from the edges of
the controller board.
6. Press in on the locking tab of the controller
and remove the controller from the drawer.
Controller
4-Wire FAN
CONTROLLER
Locking Tab
4-Wire DISPENSER
6-Wire BADGE
14-Wire CHASSIS
6-Wire MOTOR
To Next Page
