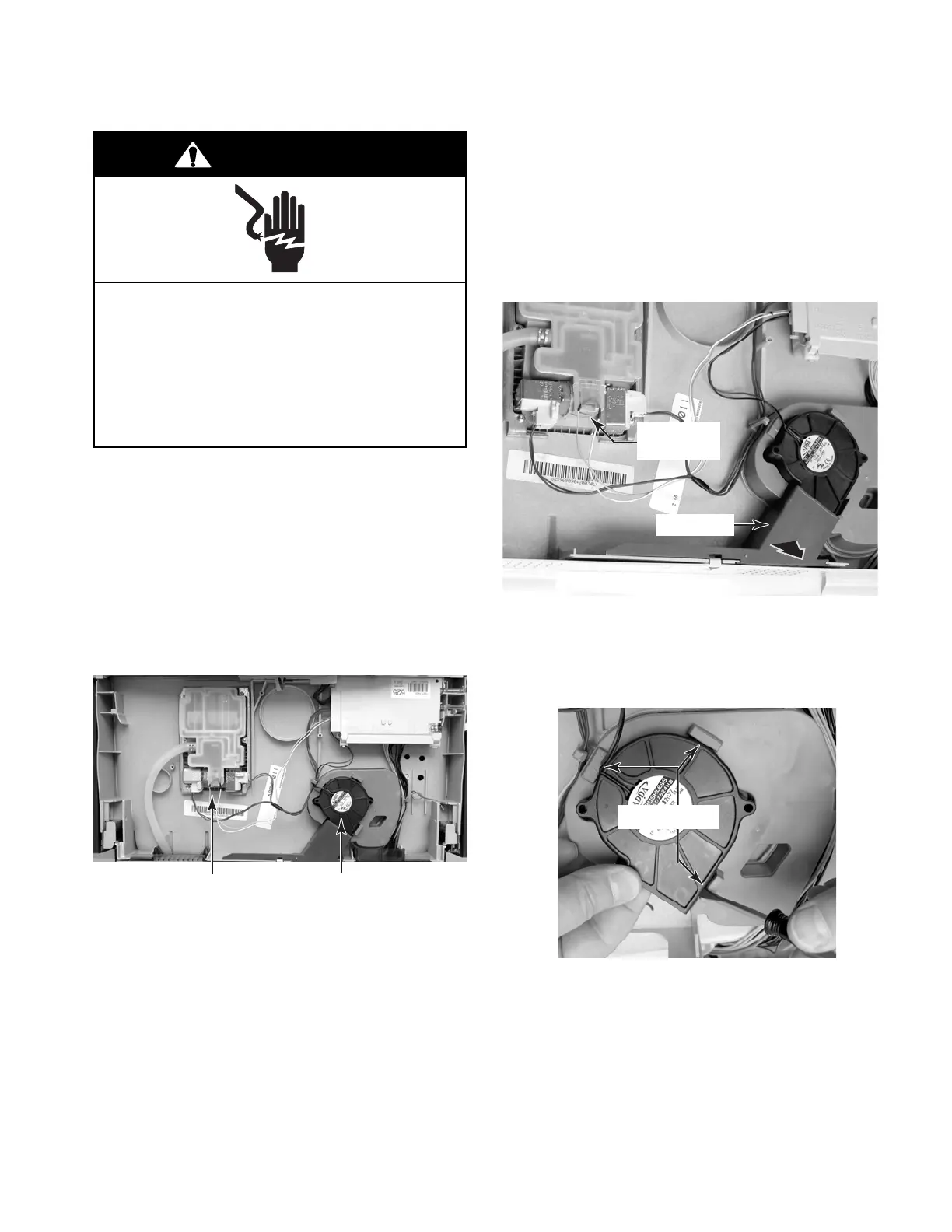

REMOVING THE DRYING FAN AND RINSE AID LED
1. Unplug dishwasher or disconnect power.
2. Turn off the water going to the dishwasher.
3. Disconnect the drain line from the dish-
washer.
4. Remove the door panel from the drawer
(see page 4-4 for the procedure).
5. Remove the dishwasher drawer and turn
it over (see page 4-9 for the procedure).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
NOTE: The drying fan and rinse aid LED are
replaced as an assembly.
Rinse Aid LED Drying Fan
6. Pull out on the drying fan air chute and
slide the chute off the drawer. NOTE: The
top of the chute has two small slots that fit
into tabs, so you may have to push up on
the top while you pull out to clear the tabs.
7. Pull the fan/LED connector off the control-
ler board marked FAN.
Fan/LED
Connector
Air Chute
8. Using a straight-blade screwdriver, pry
the three locking tabs holding the drying
fan away from the fan, and remove it from
the drawer holder.
Locking Tabs
Continued on the next page.
