4-16

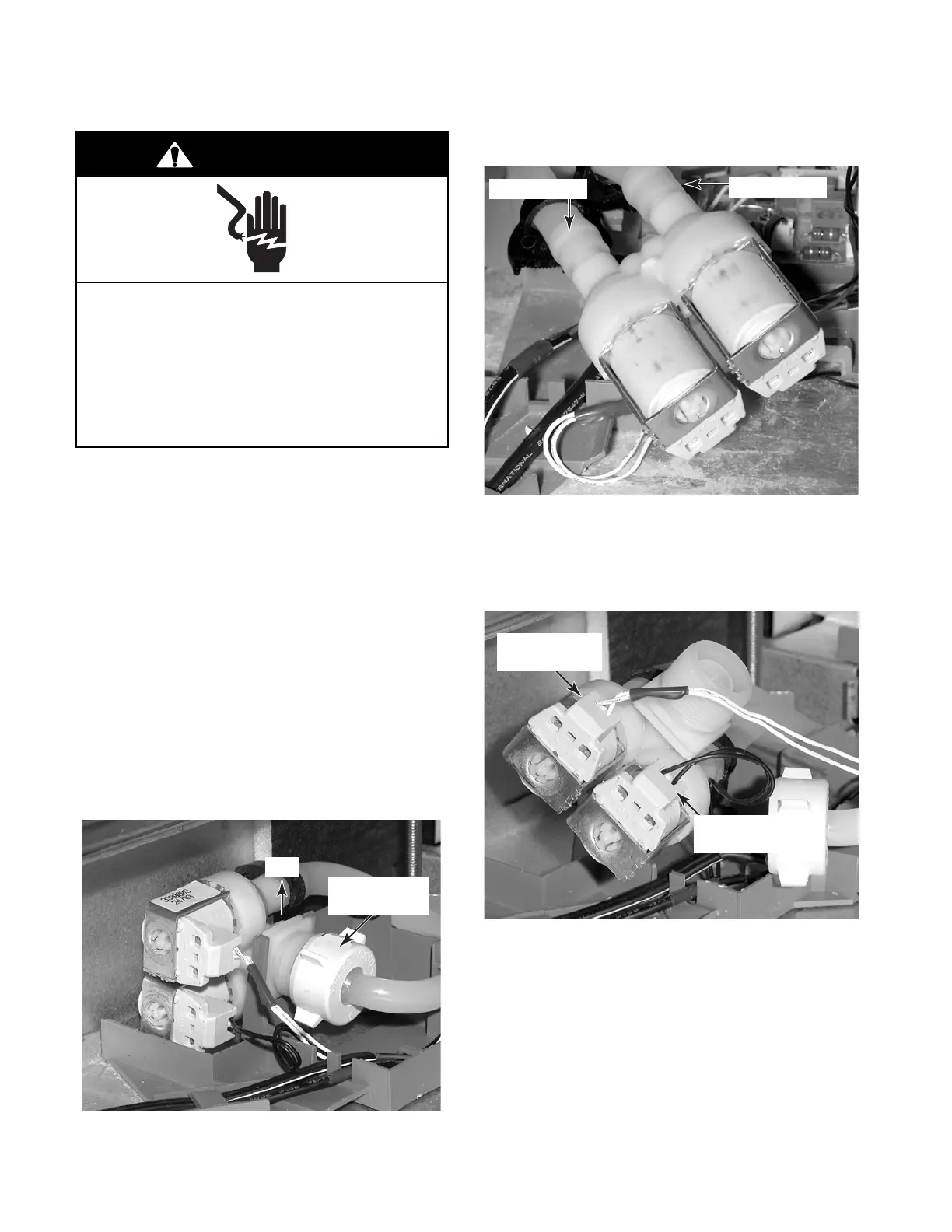

REMOVING THE WATER FILL VALVES
1. Unplug dishwasher or disconnect power.
2. Turn off the water going to the dishwasher.
3. Disconnect the drain line from the dish-
washer.
4. Remove the bottom dishwasher drawer
(see page 4-9 for the procedure).
5. Position the dishwasher drawer to the
side, out of the way. Be careful not to
stress the hoses and wiring.
6. Remove the chassis module cover (see
step 6 on page 4-15- for the procedure).
7. Remove the water inlet line from the water
fill valves, then lift the valves off the hous-
ing and remove the valves.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
8. Disconnect the outlet lines from the valves.
9. Disconnect the wire connector locking tabs
from the upper and lower outlet water
valve solenoid terminals, and remove the
connectors.
Water Inlet
Line
Lift
Upper Outlet
Lower Outlet
Lower Outlet
(Black Wires)
Upper Outlet
(White Wires)
To Next Page
