5-2

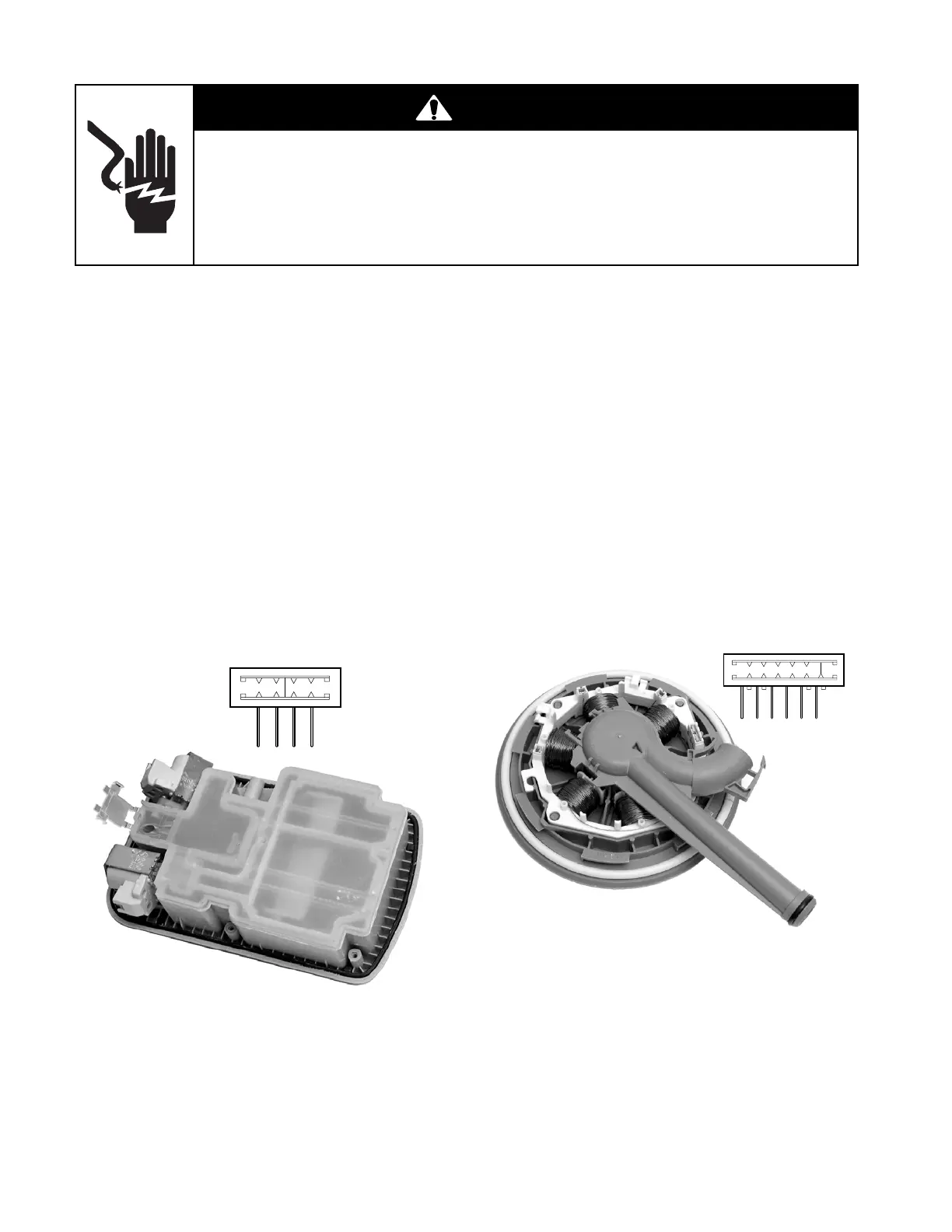

RINSE AID AND DETERGENT
DISPENSER
Refer to page 4-8 for the procedure for servic-
ing the rinse aid and detergent dispenser.
1. Unplug dishwasher or disconnect power.
2. Disconnect the wire connector from the
DISPENSER terminals on the controller.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to rinse aid
terminals 1 and 2. The meter should indi-
cate between 65 and 75 Ω.
5. Touch the ohmmeter test leads to detergent
dispenser terminals 3 and 4. The meter
should indicate between 65 and 75 Ω.
WASH & DRAIN MOTOR
Refer to page 4-10 for the procedure for servic-
ing the wash & drain motor.
1. Unplug dishwasher or disconnect power.
2. Disconnect the wire connector from the
MOTOR terminals on the controller.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
following terminals. The meter should in-
dicate between 7.5 and 8.5 Ω per coil.
Coil 1 = terminals 1 and 2
Coil 2 = terminals 1 and 3
Coil 3 = terminals 2 and 3
1
1
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
