4-2

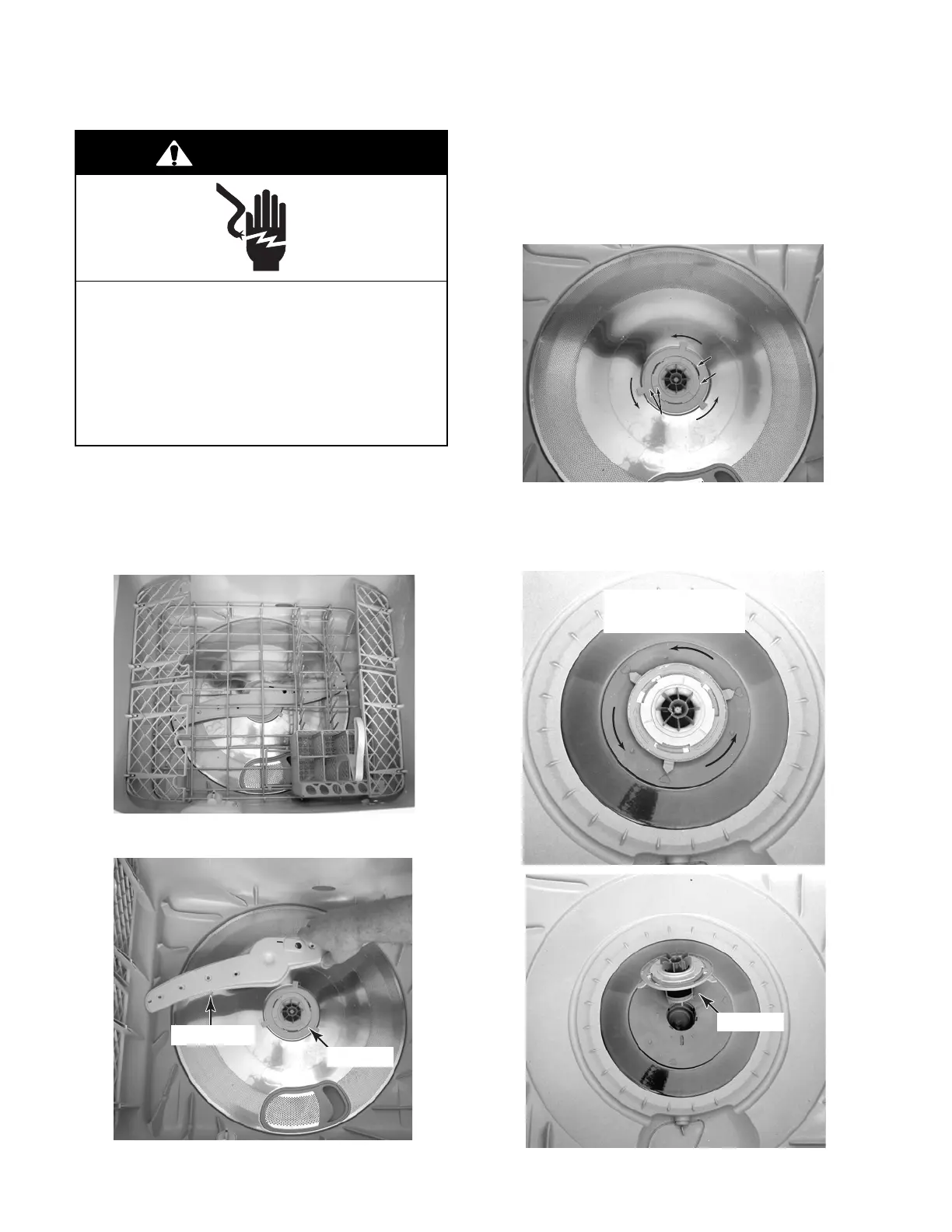

REMOVING THE SPRAY ARM AND IMPELLER
1. Unplug dishwasher or disconnect power.
2. Turn off the water going to the dishwasher.
3. Remove the dishracks and silverware
basket from the tub.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
WARNING
4. Lift the spray arm off the impeller.
Spray Arm
Impeller
5. Rotate the outer ring on the filter plate
counterclockwise (CCW) until the slots
and tabs in the outer and inner rings align,
then lift the filter plate, and remove it from
the tub.
Alignment
Marks
Outer Ring Slot
Inner Ring Tab
To Remove: Turn
Outer Ring CCW
6. Rotate the outer ring on the impeller coun-
terclockwise (CCW) as far as it will go, then
lift the impeller, and remove it from the tub.
To Remove: Turn
Impeller Ring CCW
Impeller
To Next Page
