Chapter 1 Handling the Product
1

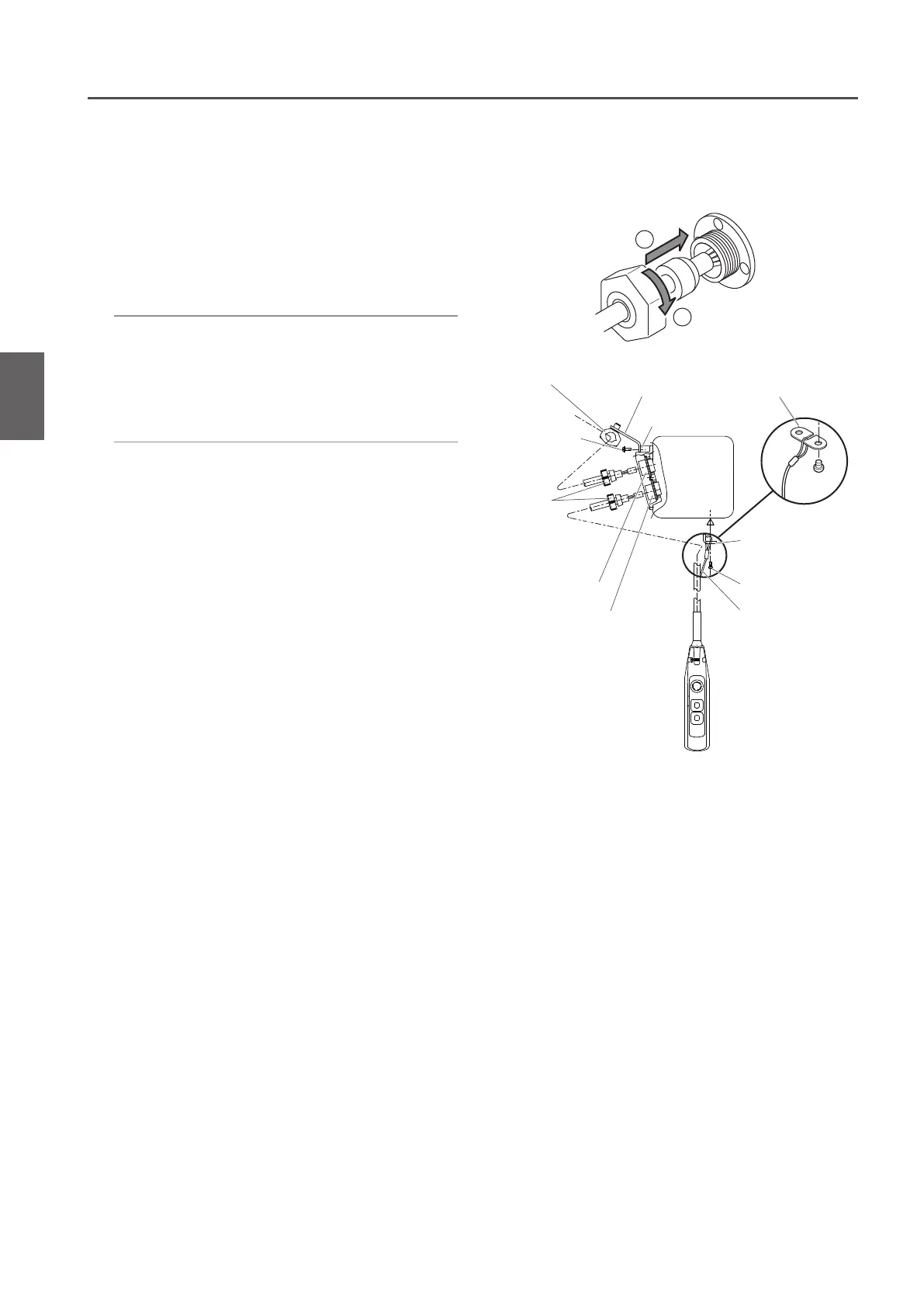

AssemblingConnecting Cables
■
Manual Trolley Type
■
125 kg~5 t
1
2
Cable holder
Cable holder arm
Socket frame
Holder C
(lower side)
Cable Support L
Screw
Protection wire
Holde A
Screw
Holder C
(upper side)
Cable Support L
2) Connecting the Push Button Cord
Insert the Push Button Cord into the
Holder C (lower side) of the Socket
frame. Turn the Holder A to connect the
cord securely.
3) Carry out wiring correctly in accordance
with the wiring diagram inside the
Controller Cover.
1) Connecting the Power Cable
Insert the Power Cable into the Holder
C (upper side) of the Socket frame.
Turn the Holder A to connect the cable
securely.
Assembling (continued)
