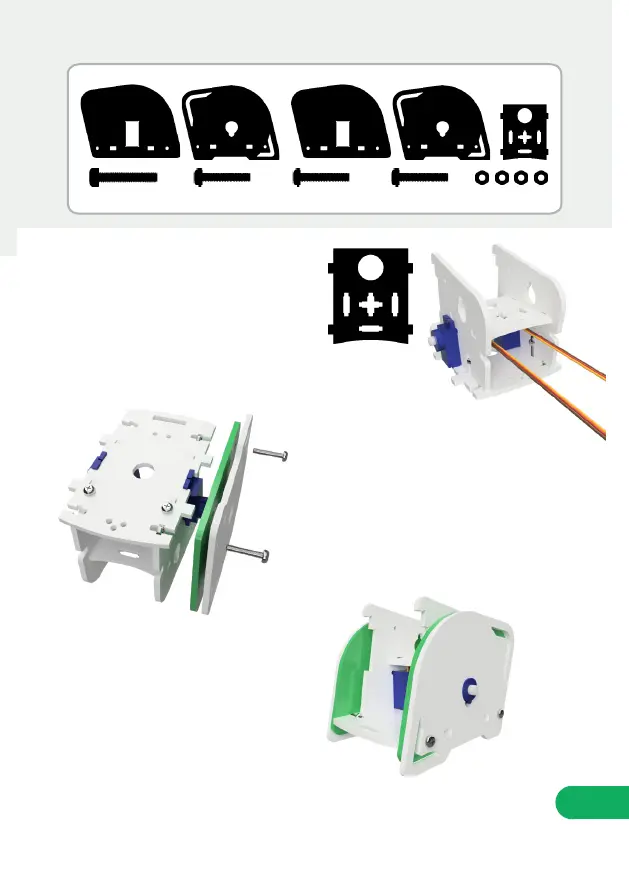

STEP 5: Turn the assembly upside down,
align the smaller rectangular holes of the
side panels up with the protruding bars
on the base plate, and slot them together.
Drop M3 nuts into the T-joints, and secure
with the 16mm bolts.
STEP 4: Snap the pen mounting plate
in between the two vertical plates,
just above the servo. The servo cables
should pass out of the rear of the
chassis.
STEP 6: Repeat for opposite side.
