ASSEMBLING THE CHASSIS
6

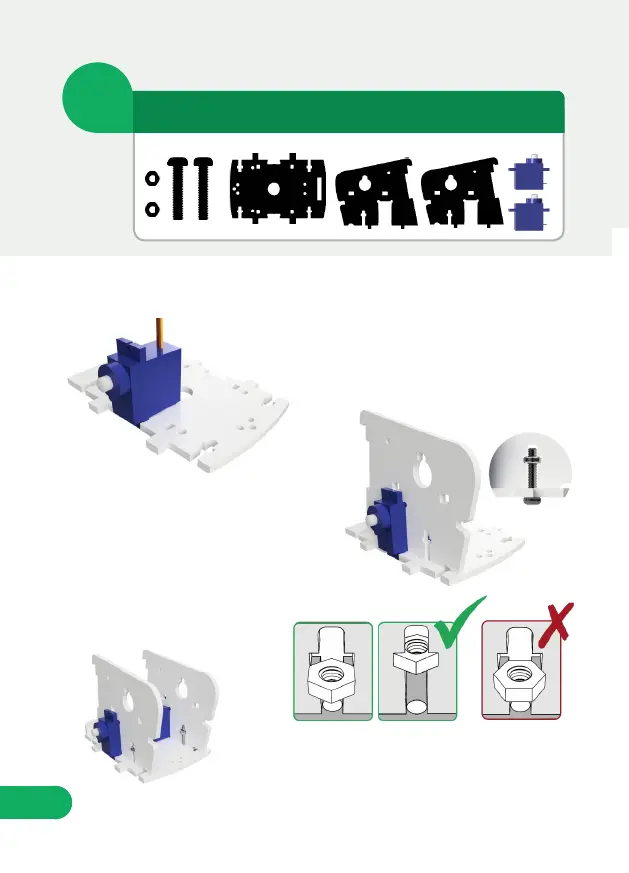

STEP 1: Slot one of the servos into the base plate
as shown to the left.
STEP 2: Slot one of the internal side
panels over the top of the servos. Drop
an M3 Nut into the T-Joint and secure in
place with a 16mm bolt. Ensure that the
nut is fully inserted into the joint before
tightening.
NOTE: During assembly take care not to overtighten the screws as this can
damage :MOVE mini.
STEP 3: Repeat Step 1 & 2 for the opposite side.
