Mounting onto your motorcycle helmet

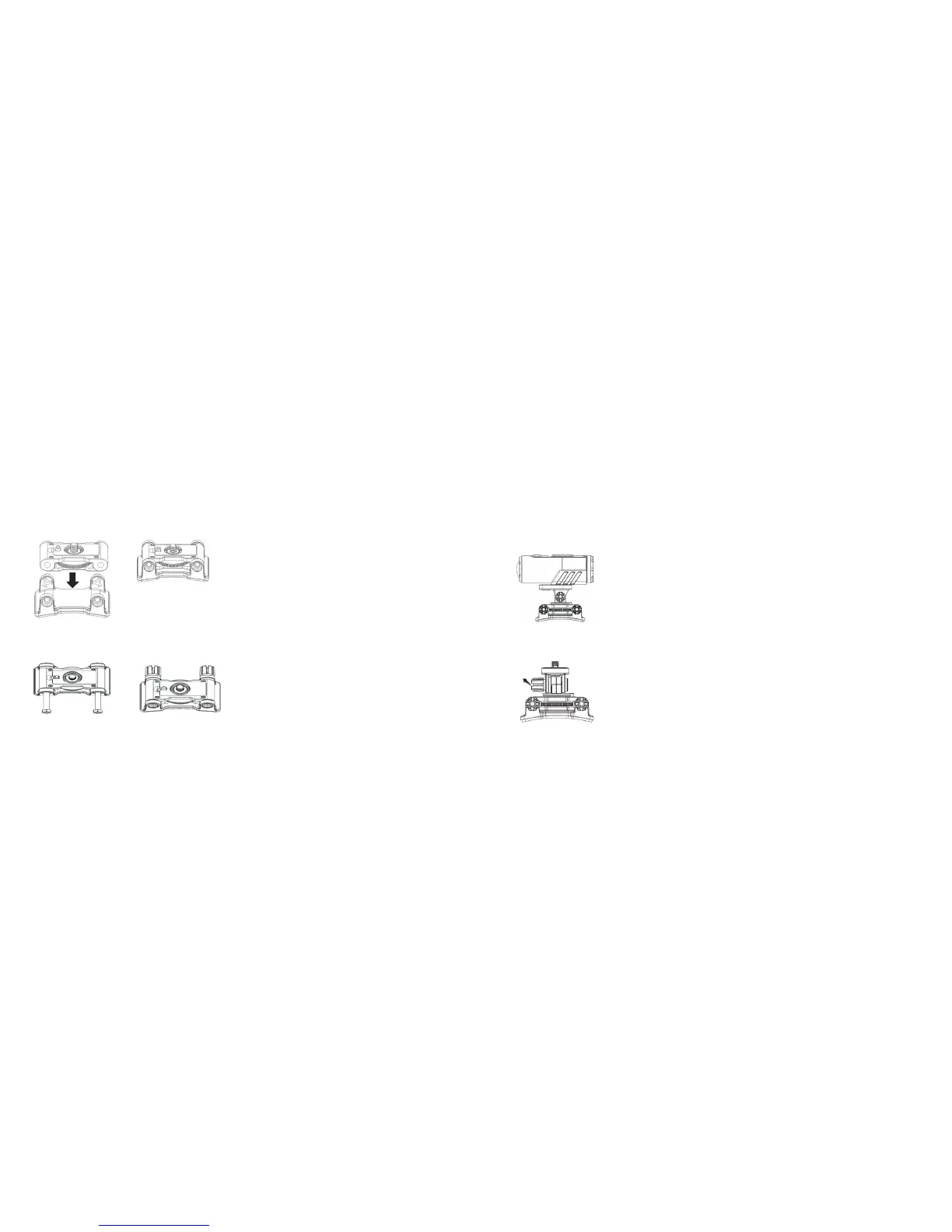

Assembling the Curved Mount
1. InstalltheBodyPieceintotheCurvedBase.
Note: Please make sure you fit the gears of the Curved Base and the Body Piece correctly on both sides.
2. Inserttheboltsthroughtheholesandtightenthenut.
You can also mount your camera onto the side of your motorcycle helmet by using a 90° Adaptor.
Mounting without the 90º Adaptor
There are three ways to mount the camera onto the Body Piece: Either use the Tilting Head Adaptor or Quick Release
Adaptor socket to mount your camera onto the Body Piece, or attach your camera directly onto the Body Piece. Please
note that the Tilting Head Adaptor provides a wider angle to allow for greater adjustment.
a. Attaching the camera to the Body Piece via the Tilting Head Adaptor (for details on how to attach the Tilting Head
Adaptor to your camera, please refer to ‘Attaching the Tilting Head Adaptor to your camera’, page 21)
Note:Thecamerapositioncanbeadjustedhorizontally,plusthecameraanglecanberotatedupwardsordownwardsby
loosening or tightening the nut on the Tilting Head Adaptor. [continued...]
