DocumentNo.:KE-4025-06                                           29/50


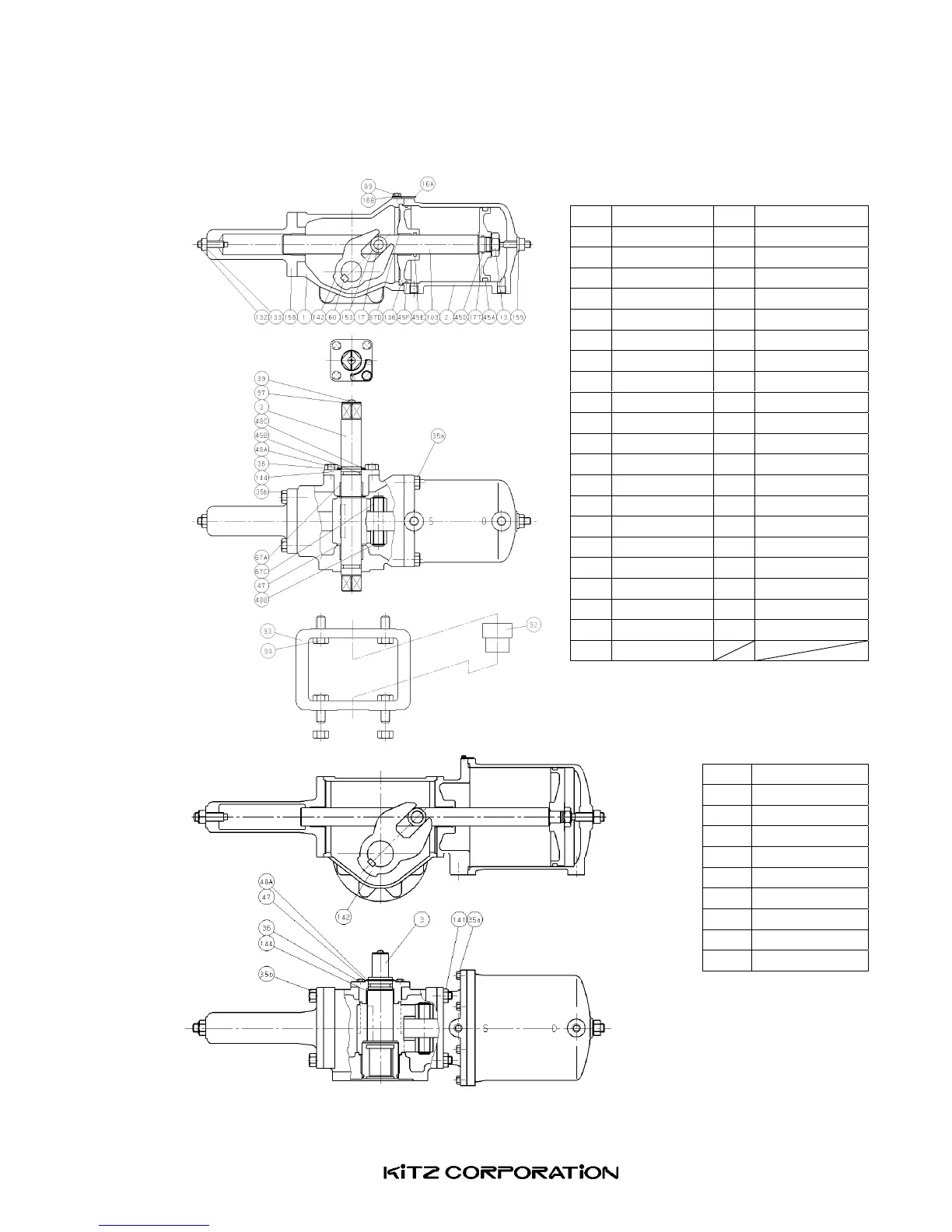

AssemblyDiagramofTypeB-1toB-6 





































No. Parts No.
 Parts
1 Housing 67A Bearing
2 Cylinder 67C Bearing
3 Shaft 67D Bearing
13 Nut 89 Bolt
16A Plate 92 Connector
16B Washer 93 Bracket
17 Pin 94 Bolt
35a Bolt 97 Indicator
35b Bolt 98 Indicatorplate
36 Bolt 103 Pistonrod
39 Screw 132 CapScrew
45A Oring 133 Nut
45B Oring 136 Rodguide
45D Oring 142 Scotchyoke
45E Oring 144 Housingcover 
45F Oring 145 Washer
47 Thrustbearing  153 Roller
48A Snapring 155 Sealwasher
48B Snapring 158 Housingcap 
48C Snapring 177 Piston
60 Key  
No.  Parts
3 Shaft
35a Bolt
35b Bolt
36 Bolt
47 Thrustbearing
48A Snapring
141 Nut
142 Scotchyoke
144 Housingcover 
Fig.18
Somepartsaredifferentdependingonthe
actuatortypes.
B-6 actuator shaft parts
