DocumentNo.:KE-4025-06                                           30/50

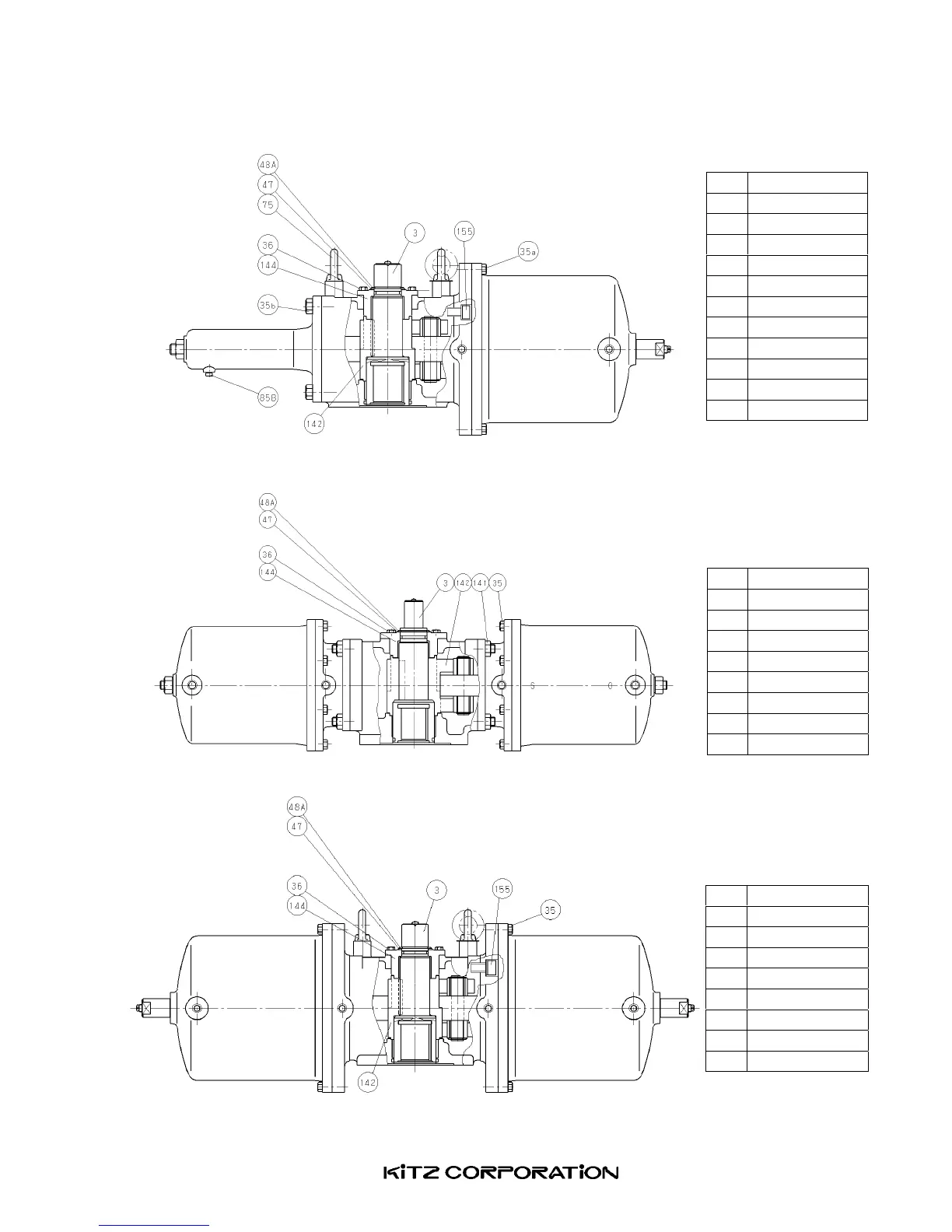

B-7ActuatorShaftPortion












B-D6ActuatorShaftPortion











B-D7ActuatorShaftPortion













No.  Parts
3 Shaft
35a Bolt
35b Bolt
36 Bolt
47 Thrustbearing
48A Snapring
75 Eyebolt
85B Plug
142 Scotchyoke
144 Housingcover 
155 Sealwasher
No.  Parts
3 Shaft
35 Bolt
36 Bolt
47 Thrustbearing 
48A Snapring
141 Nut
142 Scotchyoke
144 Housingcover 
No.  Parts
3 Shaft
35 Bolt
36 Bolt
47 Thrustbearing 
48A Snapring
142 Scotchyoke
144 Housingcover 
155 Sealwasher
Fig.19
Fig.20
Fig.21
