Kitz B Series - Page 34

DocumentNo.:KE-4025-06                                           31/50

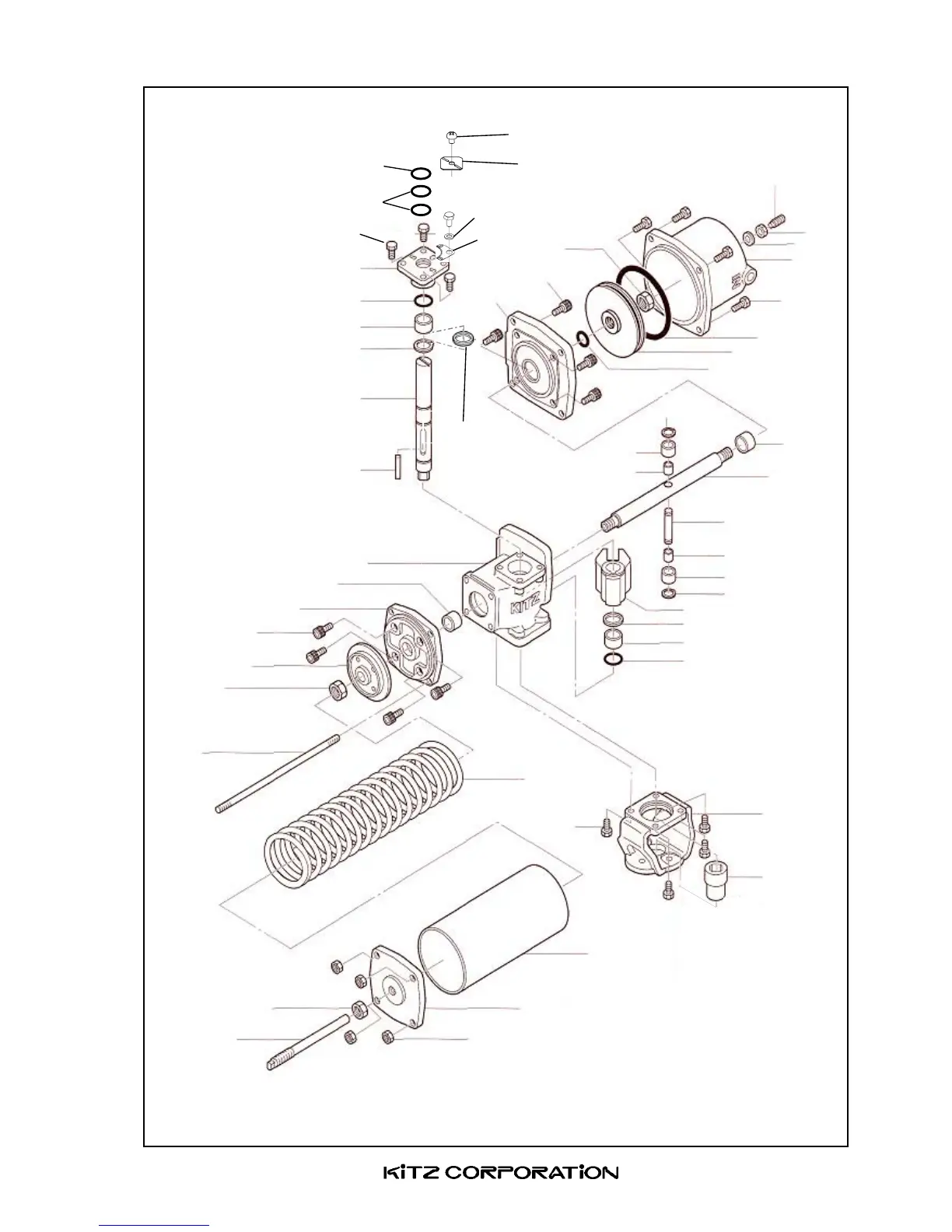

ConstructionDetailofTypeBS





































TypeBS-3isillustrated.
Bolt
Bearing
Bolt
Housing cover
Bearing
Snap ring
O ring
Shaft
Rod guide (A)
Bolt
Nut
Nut
Packing
Cylinder
O ring
Piston
O ring
A
djust screw
Bearing
Pin
Piston rod
Housing
Bearing
Roller
O ring
Bearing
Thrust bearing
Scotch yoke
Snap ring
Roller
Key
Nut
Spring retainer
Bolt
Rod guide (B)
Bearing
Snap ring
Tie rod
Bracket
A
djust screw
Nut
Bolt
Spring
Spring case
Spring cover
Connecter
Nut
Fig.22
Screw
Indicato
r
Snap ring
Thrust washer
Indicator plate
Washer
Thrust bearing
