DocumentNo.:KE-4025-06                                           38/50


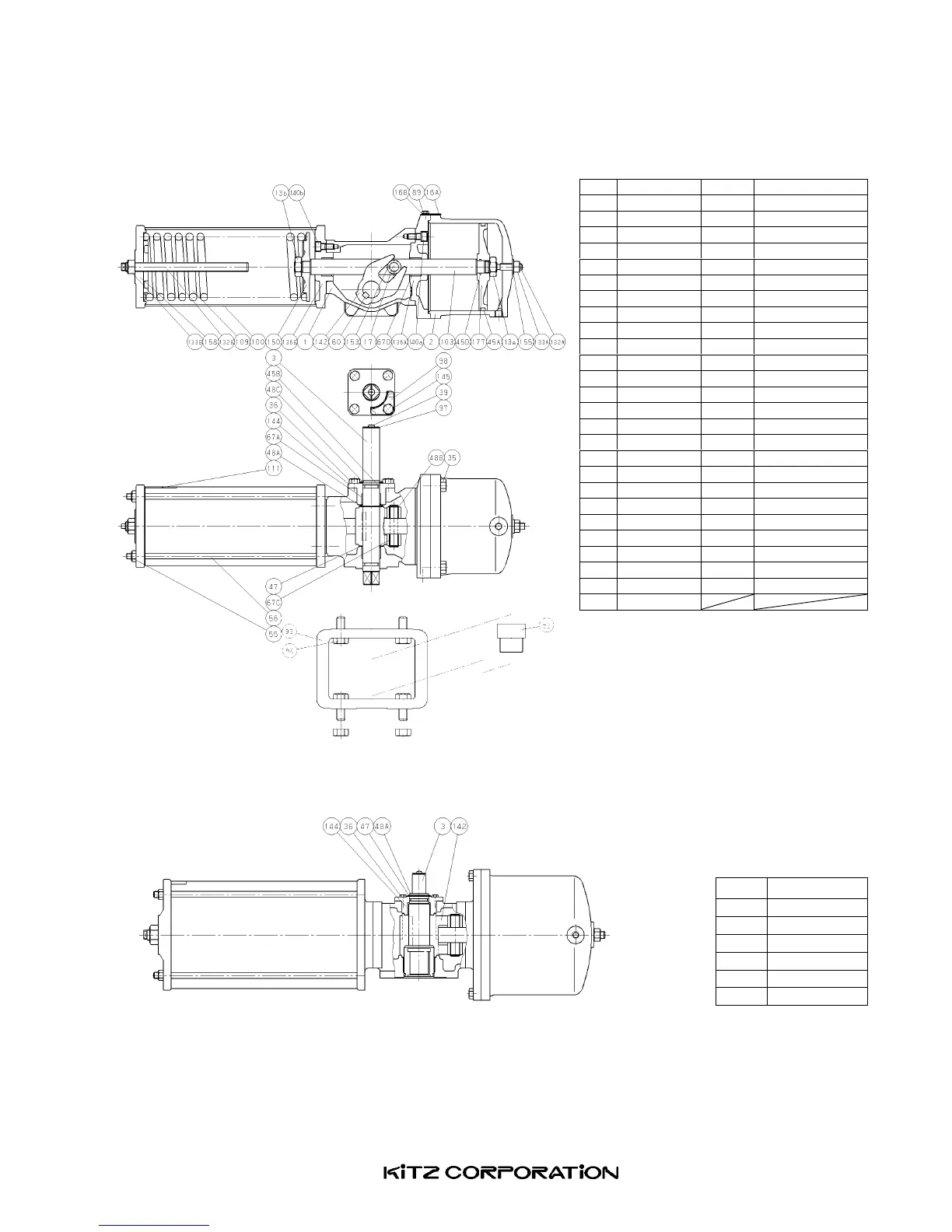

AssemblyDiagramofTypeBS-1toBS-6  


































No.  Parts No.  Parts
1 Housing 93 Bracket
2 Cylinder 94 Bolt
3 Shaft 97 Indicator
13a Nut 98 Indicatorplate
13b Nut 100 Springcase 
16A Plate 103 Pistonrod
16B Washer 109 Spring
17 Pin 111 Cautionplate
35 Bolt 132A Adjustscrew
36 Bolt 132B Adjustscrew
39 Screw 133A Nut
45A Oring 133B Nut
45B Oring 136A Rodguide
45D Oring 136B Rodguide
47 Thrustbearing 140a CapScrew 
48A Snapring 140b CapScrew 
48B Snapring 142 Scotchyoke
48C Snapring 144 Housingcover 
55 Nut 145 Washer
56 Tierod 146*1 Backupring 
60 Key 150 Springretainer 
67A Bearing 153 Roller
67C Bearing 155 Sealwasher
67D Bearing 158 Springcover 
89 Bolt 177 Piston
92 Connector  
No.  Parts
3 Shaft
36 Bolt
47 Thrustbearing 
48A Snapring
142 Scotchyoke
144 Hosingcover
Fig.26
BS-6ShaftPortion
Some parts are different depending
ontheactuatortype.
