2 Make the power connection wire go through the cable-cross hole at the back of
indoor unit and then pull it out from the front side.
3. Remove the wire clip and connect the power connection wire to the wiring terminal
according to the color. Tighten the screw and then x the power connection wire
with wire clip. Note: the wiring board is for reference only, please refer to the
actual one.
4 Put wiring cover back and then tighten the screw.
5 Close the panel.

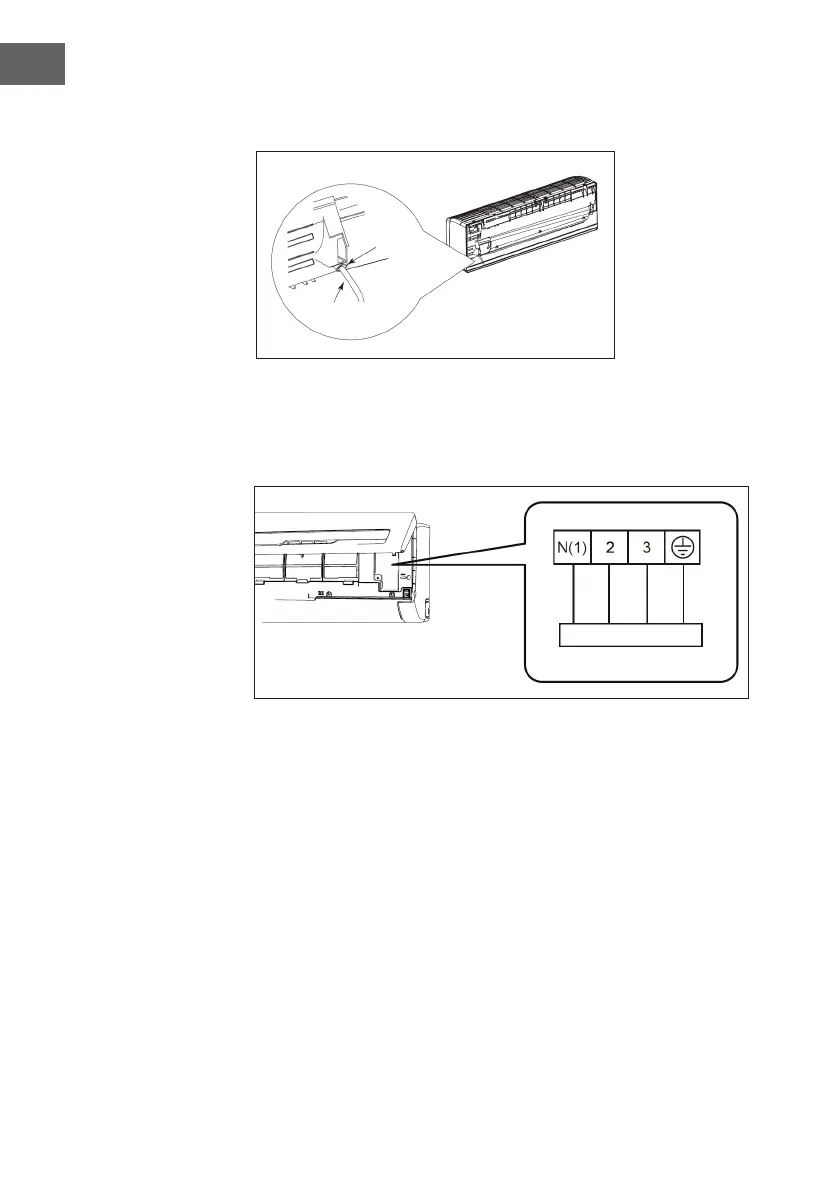

Cable cross
hole
Power cord
blue
black
brown
yellow-
green
Outdoor unit connection
To Next Page
