Klein Tools 501-915 - Definitions; Feature Details

3
DEFINITIONS
Velocity of
Propogation
(VoP)
Velocity of Propagation (VOP) is the speed of
an electrical signal traveling through a cable,
measured as a percentage of the speed of light
BNC-Connector A BNC Connector is a common connector for a
coax cable, often associated with security systems
Time Domain
Re ectometry
(TDR)
TDR technology, is a technology that uses VoP
values to accurately measure cable lengths

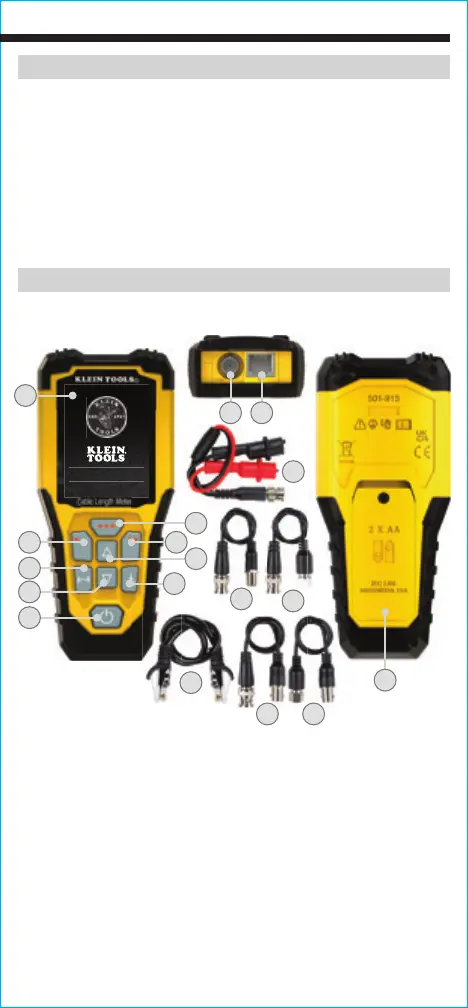

FEATURE DETAILS
Front of Meter Back of MeterTop of Meter
6
9
4
5
10
7
11
8
12
1.
LCD Screen
2.
RJ45 Port
3.
BNC Port
4.
Battery Cover
5.
Power Button
6.
"One Dot" Button:
Select, Library,
Right Arrow
7.
"Two Dot" Button:
More, Edit, Cancel,
No, On/Off
8.
"Three Dot" Button - Type, Return, Home, Left Arrow, Yes
9.
Test Button
10.
Save Button
11.
Arrow Up Button
12.
Arrow Down Button
13.
Male Coax-BNC to Alligator Clips
14.
Male Coax-BNC to Female Coax-F
15.
Male Coax-BNC to Male Coax-F
16.
CAT-6 RJ45 to CAT-6 RJ45
17.
Female Coax-BNC to Male Coax-BNC
18.
Female Coax-BNC to Male Coax-F
23
NOTE: No user-
serviceable parts
inside meter.
16
17 18
15
14
13
07:30 55%
CABLE LENGTH METER
www.kleintools.com
HS
