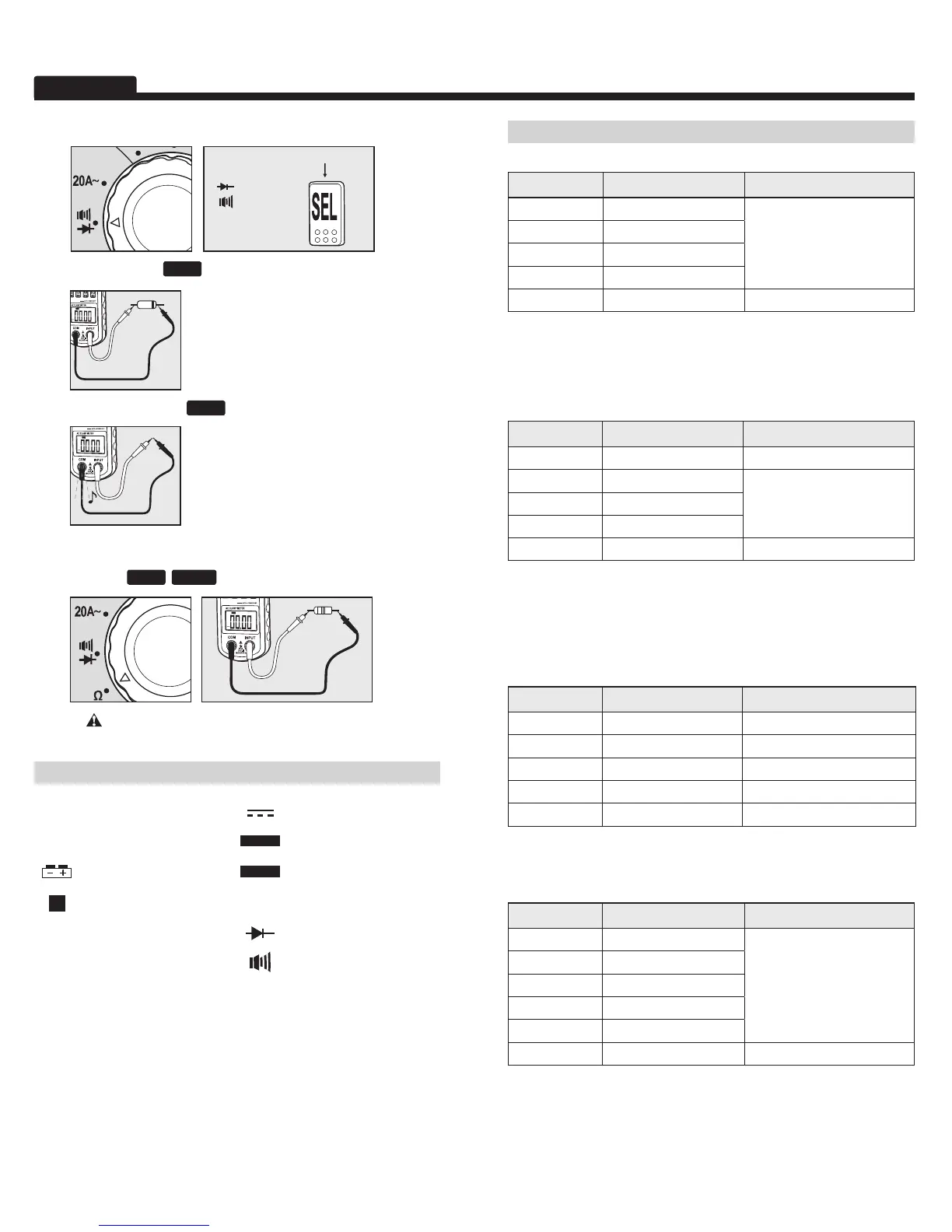

Klein Tools CL100 User Manual

ENGLISH
AUTO
A
AC
PRESS
TO SELECT
Diode
Continuity
AUTO
A
AC
AUTO
A
AC
• Do not measure resistance on a live circuit.
3. Diode / Continuity
Diode Features:
HOLD
Display shows:
• Forward voltage drop if forward biased.
• “O.L.” if reverse biased.
4. Resistance:
<
20M
Ω
Features:
HOLD RANGE
Continuity Features:
HOLD
• Display shows resistance.
• Buzzer sounds if less than 60Ω.
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
Negative DC Value
MAX
Maximum Reading
Low Battery
AUTO
Auto Range Active
H
Hold Active
A
Current in Amps
V
Voltage Measurement Diode Test
Ω
Resistance in Ohms Continuity Test
m
Milli 10
-3
k
Kilo 10
M
Mega 10
6
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
200mV 0.1mV
± (0.8% + 2 digits)
2V 0.001V
20V 0.01V
200V 0.1V
600V 1V ± (1.0% + 2 digits)
Overload Protection:
• 200mV range: 250V DC / AC RMS
• 2V-600V ranges: 600V DC / AC RMS
Input Impedance: 10MΩ.
AC Voltage Measurement
Range Resolution Accuracy
200mV 0.1mV ± (1.0% + 10 digits)
2V 0.001V
± (1.0% + 5 digits)20V 0.01V
200V 0.1V
600V 1V ± (1.5% + 5 digits)
Overload Protection:
• 200mV range: 250V DC / AC RMS
• 2V-600V ranges: 600V DC / AC RMS
Input Impedance: 10MΩ
Response: Averaging
AC Current Measurement
Range Resolution Accuracy
2A 0.001A ± (3.5% + 20 digits) ≤ 0.5A
2A 0.001A ± (3.0% + 10 digits)
>
0.5A
20A 0.01A ± (3.0% + 10 digits)
200A 0.1A ± (2.5% + 10 digits)
600A 1A ± (1.5% + 5 digits)
Frequency Range: 50 to 60Hz
Response: Averaging
Resistance Measurement
Range Resolution Accuracy
200Ω 0.1Ω
± (1.2% + 2 digits)
2k
Ω 0.001kΩ
20kΩ 0.01kΩ
200kΩ 0.1kΩ
2MΩ 0.001MΩ
20MΩ 0.01MΩ ± (2.0% + 5 digits)
Overload Protection: 250V
Open Circuit Voltage: 0.25V
