Klein Tools CL1000 User Manual

ENGLISH
7
1
6
2
3
5
600V
400V
CATIII
600V
400V
CATIII
PRESS
PRESS
V
AT
0 10 20 4030
Apo
V
AT
0 10 20 4030
Apo
V
AT
0 10 20 4030
Apo
600V
400A
CATIII
CL1000
B
A
I
J
4
K
F
8
E
H
D
G
C
1

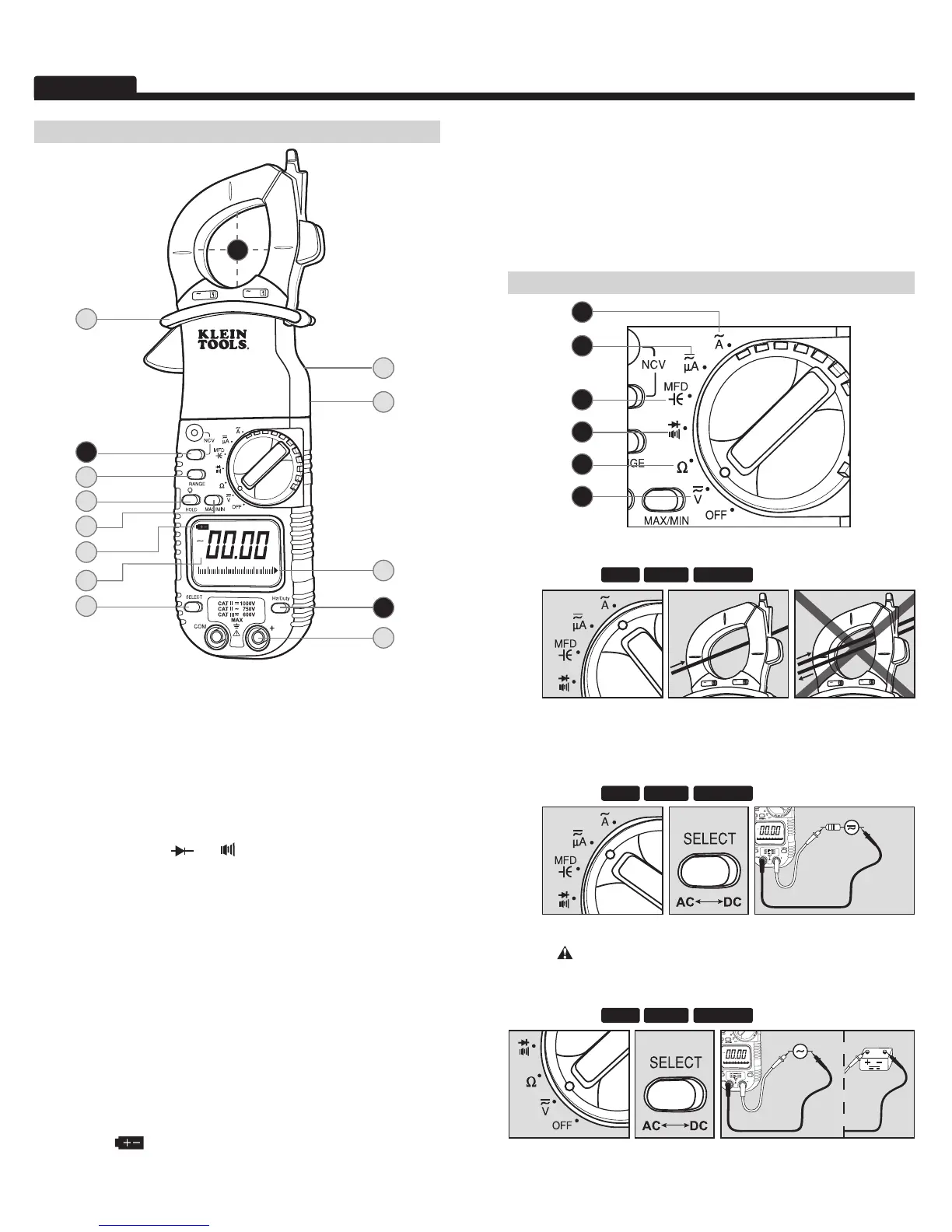

1. AC Current (large):
<
400A
Features:
• Center wire in guides for best accuracy.
• Opposing currents cancel (use line-splitter when necessary).
2. AC / DC Current (small):
<
2000µA
Features:
MAX/MINRANGEHOLD
J. Magnetic Back
• Attach instrument to metal for hands-free use.
K. Bar Graph
• The bar graph shows an approximate analog representation
of a measurement.
• The bar graph responds much faster than the digital display.
• The scale of the bar graph is zero to the maximum reading of
the selected range.
FUNCTION INSTRUCTIONS
• Select AC or DC current source.
• Current above 2000µA will damage instrument.
3. AC / DC Voltage:
<
750V AC or 1000V DC
Features:
MAX/MINRANGEHOLD
• Select AC or DC voltage source.
MAX/MINRANGEHOLD
FEATURE DETAILS
A. Use CAT III rated leads or higher.
Do not attempt to measure more than 1000V DC or 750V AC or 2000µA.
B. Keep hands below line when measuring high current levels.
C. Auto Power-Off (Apo)
• Device will power off after 30 minutes non-use.
• Turn the dial or press a button to wake.
• Disabled during Max / Min function.
• Holding Select button while turning on disables Auto Power-Off.
D. Select Functionality Button
• Switch between AC and DC.
• Switch between
and .
E. Hold / Backlight / Worklight
• Press to hold the current input on the display.
• Press again to return to live reading.
• Press for 2 seconds to enable / disable lights.
• Using lights drains the battery significantly.
F. Auto / Manual Range
• Press repeatedly to cycle through manual ranges.
• Press for 2 seconds to return to auto ranging mode.
•
AT is displayed on LCD only during auto ranging mode.
G. Max / Min Hold
• Press to enter Max / Min mode; the largest and smallest values
will be saved while in this mode.
• Press repeatedly to alternate between the maximum and minimum readings.
• Press for 2 seconds to return to live reading and clear the stored
maximum and minimum values.
H. I. Battery Replacement
• When indicator is displayed on the LCD, batteries must be replaced.
• Remove the back screw and replace 2 x AAA batteries.
