V
AT
0 10 20 4030
Apro
Resistance:
<
40MΩ

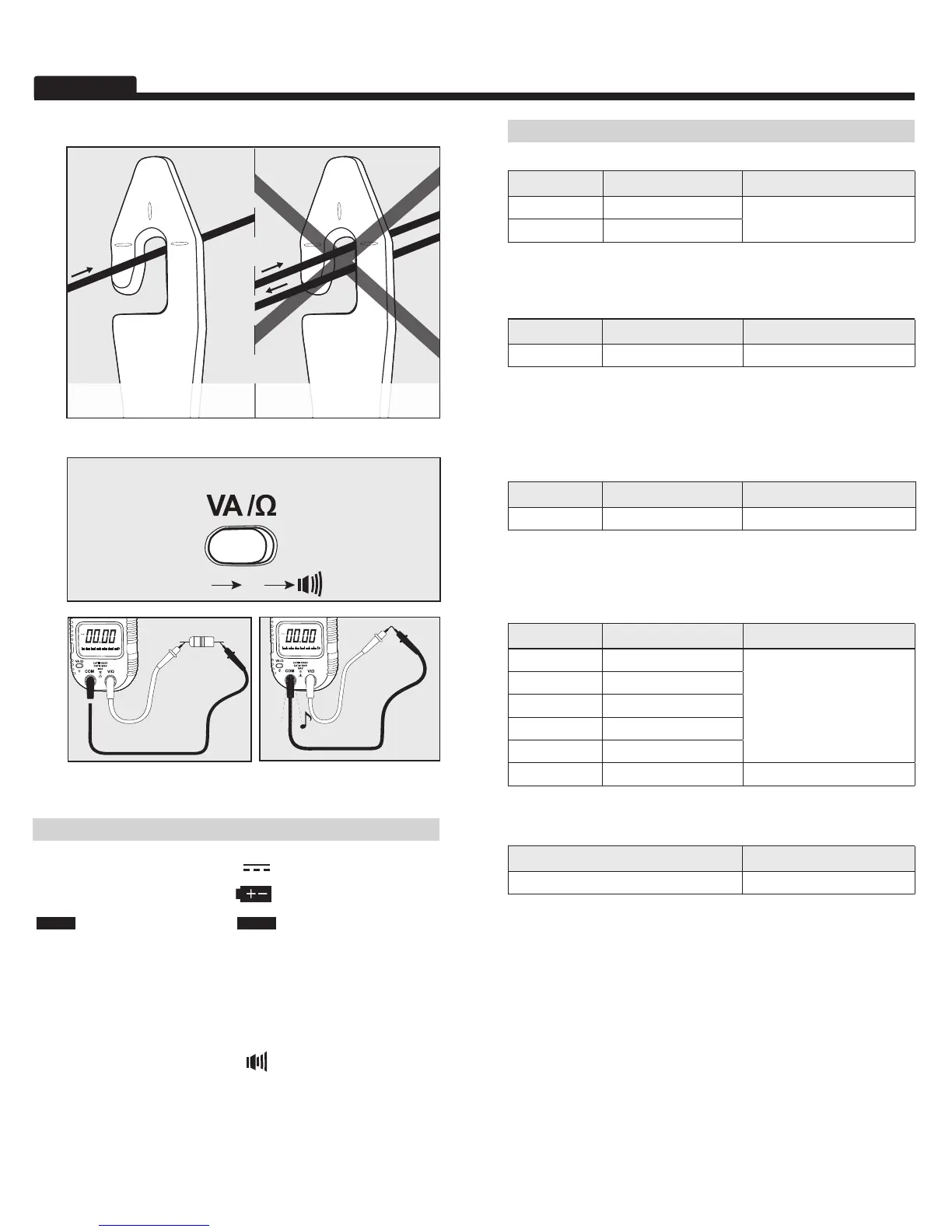

3. Resistance / Continuity
Continuity: Tone below 30Ω
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
Negative DC Value Low Battery
MAX
Maximum Reading
MIN
Minimum Reading
AT
Auto Range Active
AUTO
Auto Function
Active (V/A)
O.L.
Overload: Range
Exceeded
Apo
Auto Power-Off Active
V
Voltage Measurement
A
Current in Amps
Ω
Resistance in Ohms Continuity Test
m
Milli 10
-3
k
Kilo 10
3
M
Mega 10
6
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
2.1 ~ 1000V 0.001V ~ 1V
± (1.0% + 4 digits)
-1.8 ~ -1000V 0.001V ~ 1V
Overload Protection: 1000V
Input Impedance:
>
10MΩ
AC Voltage Measurement
Range Resolution Accuracy
1.3 ~ 750V 0.001V ~ 1V ± (1.5% + 3 digits)
Overload Protection: 750V RMS
Frequency: 45 to 400Hz
Input Impedance: 10M
Ω
Response: Averaging
AC Current Measurement
Range Resolution Accuracy
0.9 ~ 200A 0.1A ± (2.5% + 8 digits)
Overload Protection: 200A
Frequency: 45 to 400Hz
Response: Averaging
Resistance Measurement
Range Resolution Accuracy
400Ω 0.1Ω
± (1.0% + 4 digits)
4kΩ 0.001kΩ
40kΩ 0.01kΩ
400kΩ 0.1kΩ
4MΩ 0.001MΩ
40MΩ 0.01MΩ ± (2.0% + 4 digits)
Overload Protection: 600V
Continuity Test
Overload Protection Open Circuit Voltage
600V Appx. 0.45V
