14
ENGLISH

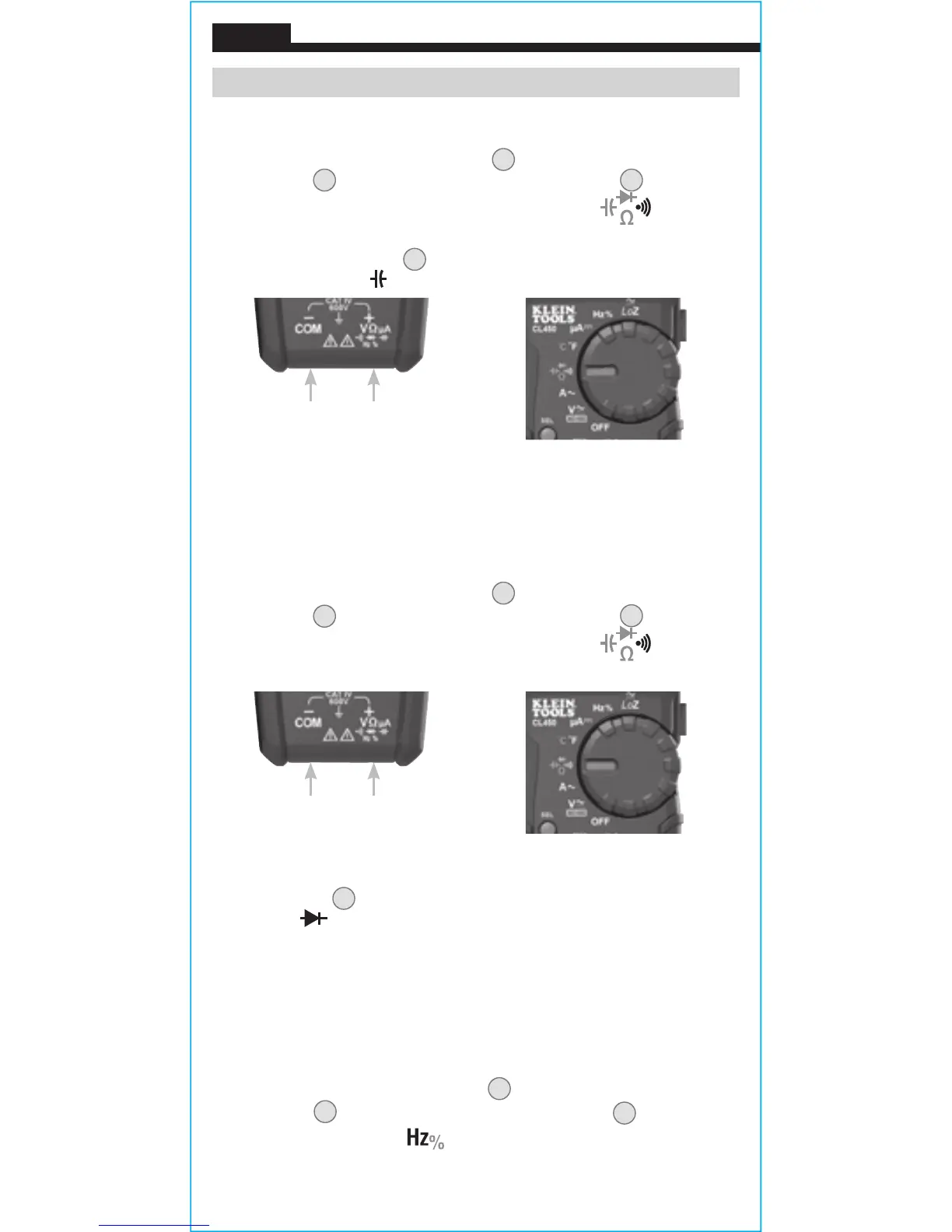

OPERATING INSTRUCTIONS
CAPACITANCE
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/ Capacitance/Diode-Test
setting.
2.
NOTE: The meter defaults to Continuity testing in this mode.
Press the SEL button
9
twice to enter capacitance mode. The
Capacitance icon will appear on the display.
3. Remove power from circuit.
4. Measure capacitance by connecting test leads across the capacitor.
The meter will auto-range to display the measurement in the most
appropriate range.
DIODE TEST
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Continuity/Resistance/ Capacitance/Diode-Test
setting.
NOTE: The meter defaults to Continuity testing in this mode. Press
the SEL button
9
three times to enter Diode testing mode. The
Diode icon will appear on the display.
2. Touch test leads to diode. A reading of 200-800mV on display
indicates forward bias, "OL" indicates reverse bias. An open
device will show "OL" in both polarities. A shorted device will
show approximately 0mV.
FREQUENCY / DUTY-CYCLE
1. Insert RED test lead into VΩ jack
5
and BLACK test lead into
COM jack
4
, and rotate function selector switch
2
to the
Frequency/Duty-Cycle
setting.
Black lead Red lead
Black lead Red lead
