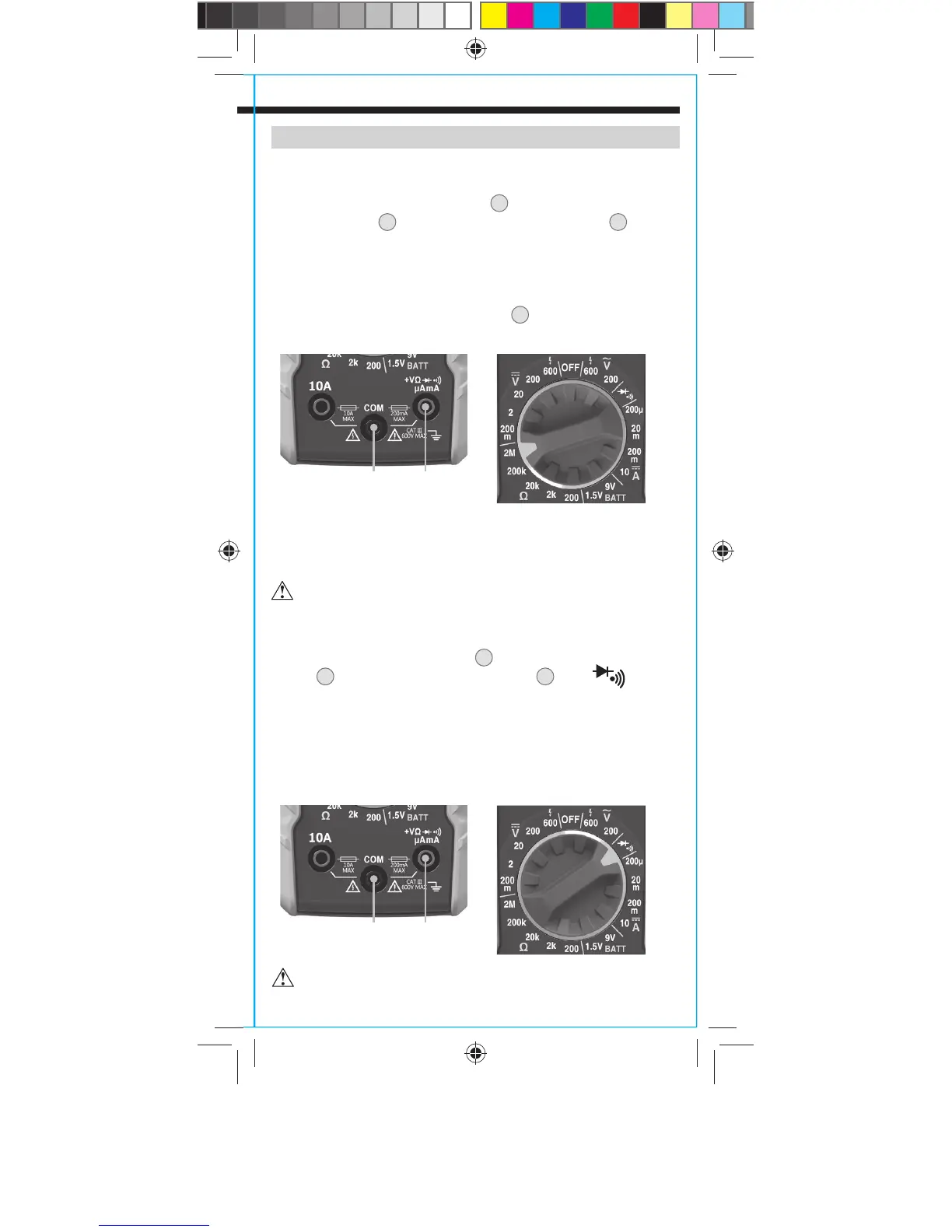

OPERATING INSTRUCTIONS
RESISTANCE MEASUREMENTS
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead
into COM jack
4
, and rotate function selector switch
2
to the
highest Ω setting (2MΩ).
2. Remove power from circuit.
3. Measure resistance by connecting test leads to circuit and
rotating the function selector switch
2
to successively
lower Ω settings to obtain higher resolution measurements.
NOTE: When in a Resistance setting and the test leads are open
(not connected across a resistor), or when a failed resistor is under
test, the display will indicate O.L. This is normal.
DO NOT attempt to measure resistance on a live circuit.
CONTINUITY
1. Insert RED test lead into VΩ jack
5
and BLACK test lead into COM
jack
4
, and rotate function selector switch
2
to the setting.
2. Remove power from circuit.
3. Test for continuity by connecting conductor or circuit with test
leads. If resistance is measured less than 100Ω, an audible
signal will sound and display will show a resistance value
indicating continuity. If circuit is open, display will show "OL".
DO NOT attempt to measure continuity on a live circuit.
, and BLACK test lead into COM
to the highest mA DC setting (200mA).
To measure current: Remove power from circuit, open circuit at
cuit using
range to display the measurement in the most appropriate range.
Red leadBlack lead
Red leadBlack lead
MM300-1390109ART.indd 9 9/21/2015 2:48:05 PM

Klein Tools MM300 Specifications

General

Product type	Digital multimeter
Product color	Black, Orange
Measuring category	CAT III 600V
Placement supported	Handheld multimeter
Battery type	AAA
Power source	Battery
Number of batteries supported	2

Weight and Dimensions

Depth	45 mm
Width	80 mm
Height	152 mm
Weight	231 g
