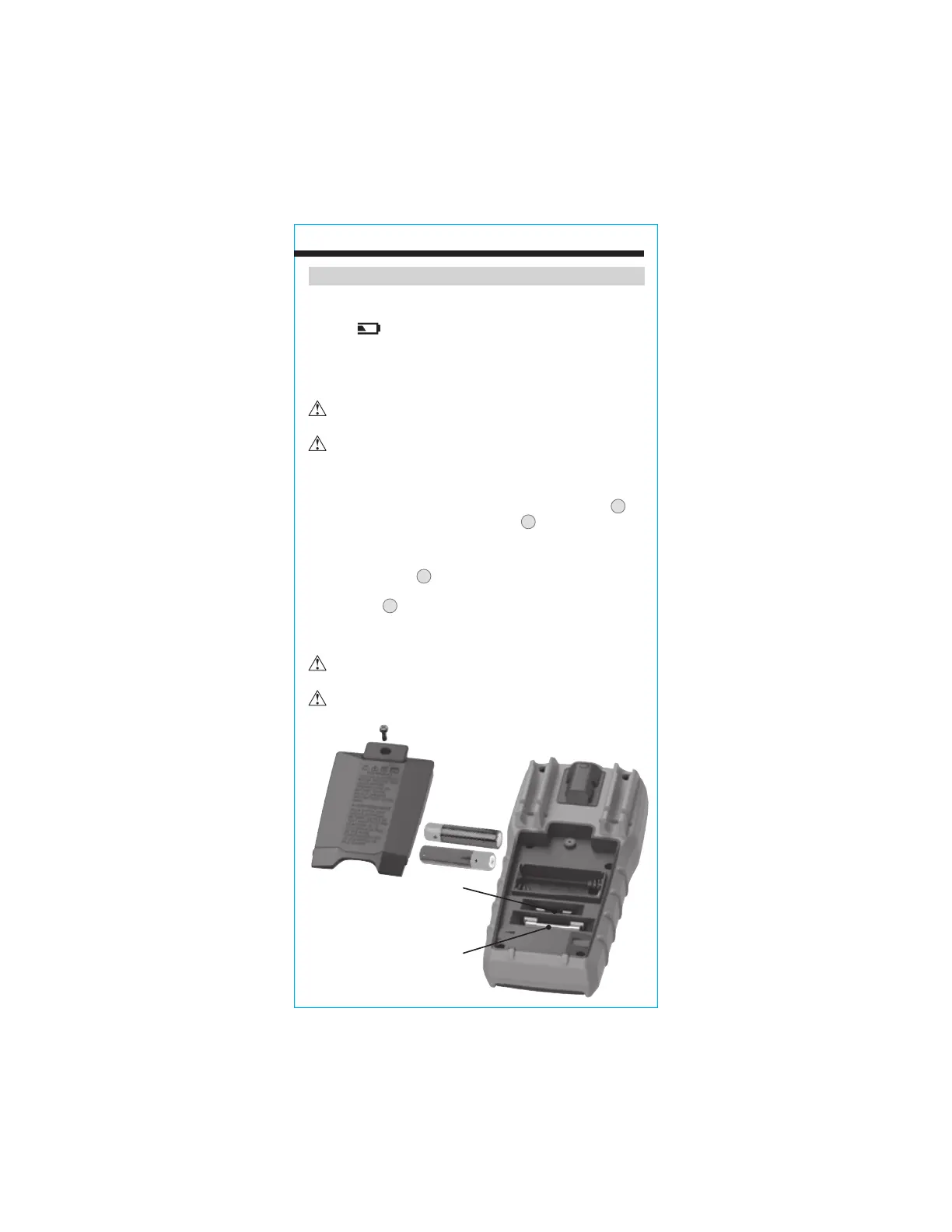

MAINTENANCE
BATTERY REPLACEMENT
When the indicator is displayed, the batteries must be replaced.
1. Remove screw from battery door.
2. Replace 2 x AAA batteries (note proper polarity).
3. Replace battery door and fasten securely with screw.
FUSE REPLACEMENT
A fuse may blow if more than 200mA is applied to the
VΩ
jack
5
,
or more than 10A is applied to the 10A jack
3
. To access fuses:
1. Remove screw from battery door.
2. Replace blown fuse(s) with:
VΩ (μA/mA) jack
5
: 200mA/600V fast-blow, interrupting rating 1kA
(Klein Cat. No. 69031)
10A jack
3
: 10A/600V fast-blow, interrupting rating 10kA
(Klein Cat. No. 69032)
3. Replace battery door and fasten securely with screw.
T
o avoid risk of electric shock, disconnect leads from any
voltage source before removing battery door.
To avoid risk of electric shock, do not operate meter while
battery door is removed.
To avoid risk of electric shock, disconnect leads from any
voltage source before accessing fuses.
To avoid risk of electric shock, do not operate meter while
back housing is removed.
2× AAA batteries
200mA/600V fast-blow fuse
(Klein Cat No. 69031)
10A/600V fast-blow fuse
(Klein Cat. No. 69032)
