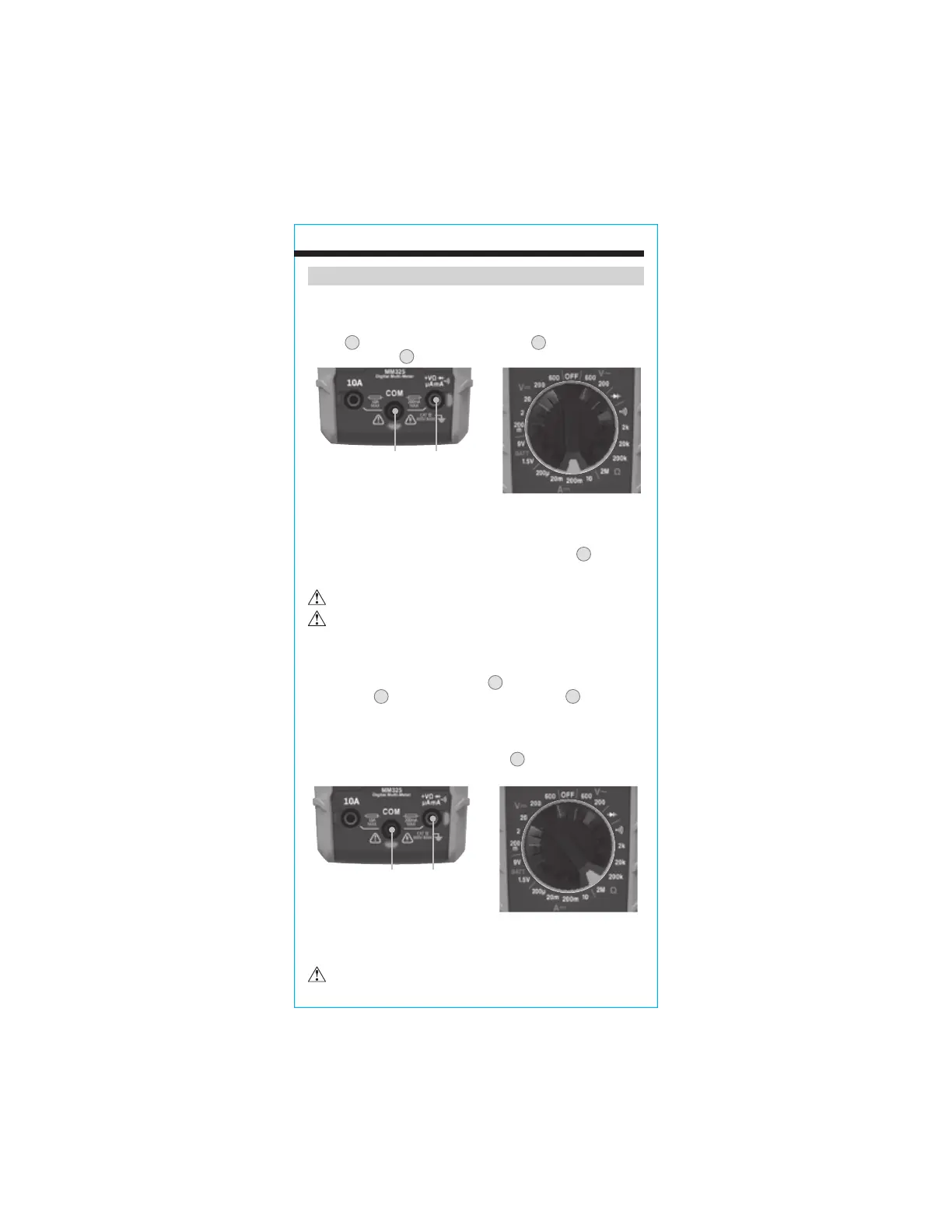

OPERATING INSTRUCTIONS
DC CURRENT LESS THAN 200mA
1. For mA DC currents less than 200mA, insert RED test lead into VΩ
jack
5
, and BLACK test lead into COM jack
4
, and rotate Function
Selector Switch
2
to the highest mA DC setting (200mA).
2. To measure current: Remove power from circuit, open circuit at
measurement point, connect meter in-series in the circuit using
the test leads, and apply power to circuit.
NOTE: If measuring mA, the Function Selector Switch
2
may
be rotated to successively lower mA DC settings to obtain higher
resolution measurements.
Red leadBlack lead
Do not attempt to measure more than 10A.
When measuring currents greater than 6A, a measurement
time of 30 seconds followed by 10 minutes of recovery time
is recommended.
RESISTANCE MEASUREMENTS
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into
COM jack
4
, and rotate Function Selector Switch
2
to the
highest Ω setting (2MΩ).
2. Remove power from circuit.
3. Measure resistance by connecting test leads to circuit and
rotating the Function Selector Switch
2
to successively
lower Ω settings to obtain higher resolution measurements.
NOTE: When in a Resistance setting and the test leads are open
(not connected across a resistor), or when a failed resistor is under
test, the display will indicate O.L. This is normal.
DO NOT attempt to measure resistance on a live circuit.
Red leadBlack lead
