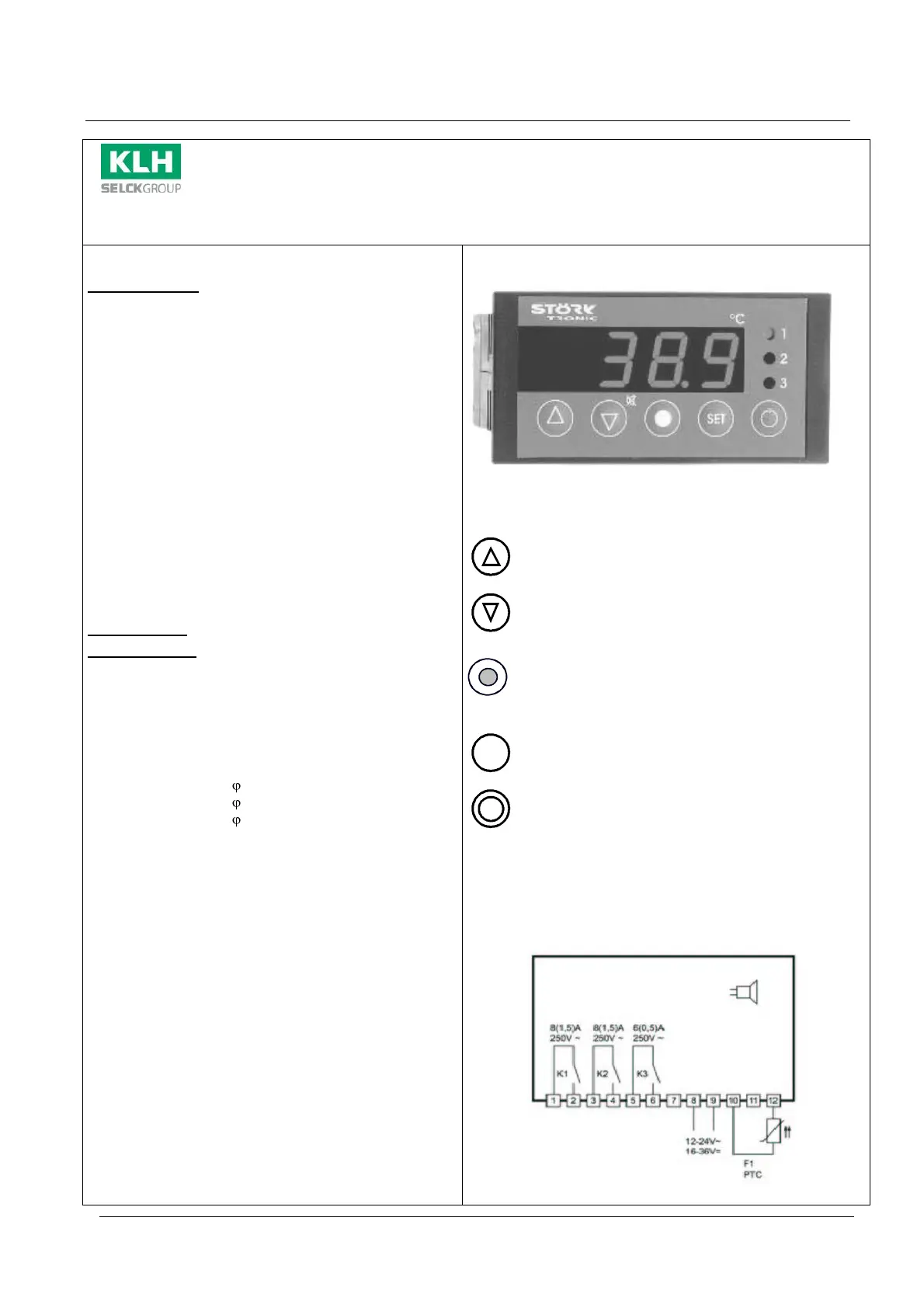

Temperature Controller
GENERAL DATA
The microprocessor-based regulator is a versatile
temperature controller for cooling applications with high
measuring accuracy. The equipment is available for
resistance sensor PTC. The switching contact K1 can be
parameterized as norm contact or as limit value min. - max.
The control setpoint and the following parameters are
adjusted by a membrane keypad on the front of the
instrument.
* Setpoint 1
* Switch difference
* Hysteresis at the switch points
* Control range limitation - minimum and maximum value
for the setpoint
* Actual value correction
* Keypad lock
* Limit values
Other device characteristics such as the function of the
output relay and the monitoring and control characteristics
are factory pre-set but can be varied.
Technical Data
Measuring Input
F1: Resistance thermometer PTC
Measuring range: -50°C...+150°C (conductor resistance
< 1 Ohm)
Measuring accuracy: ±0,5K ± 0,5 % at 25°C, without
sensor
±1K ± 0,5 % of scale range (0 – +55°C), without sensor
Outputs
K1: Relay 8(1,5)A (cos =1) 250 V, function see A90
K2: Relay 8(1,5)A (cos =1) 250 V, function see A91
K3: Relay 6(0,5)A (cos =1) 250 V, function see A92
additional buzzer, 85 dB
Display
One 3-digit, 13 mm high, red LED display
Three LED-lamp, 3mm high, for status indication of outputs
LED 3 can be parameterized to the status indication of the
external input (parameter A81)
Installation Data
Front panel: 84 x 42 mm
Panel cut-out: 68 x 32 mm
Depth: approx. 85 mm incl. terminals
Mounting: by fixing strap
Enclosure
Front IP65, IP00 from back
Ambient Conditions
Storage temperature: -20...+70 °C
Operating temperature: 0...+55 °C
Relative Humidity: max. 75% without dew
Weight: approx. 140 g, without sensor
Connections
12 pole plug and socket, spacing 5,0 mm for cable up to
2,5mm²
