DIVA SLIM PELLET BOILER STOVE
31
EN - Rev. 1.0

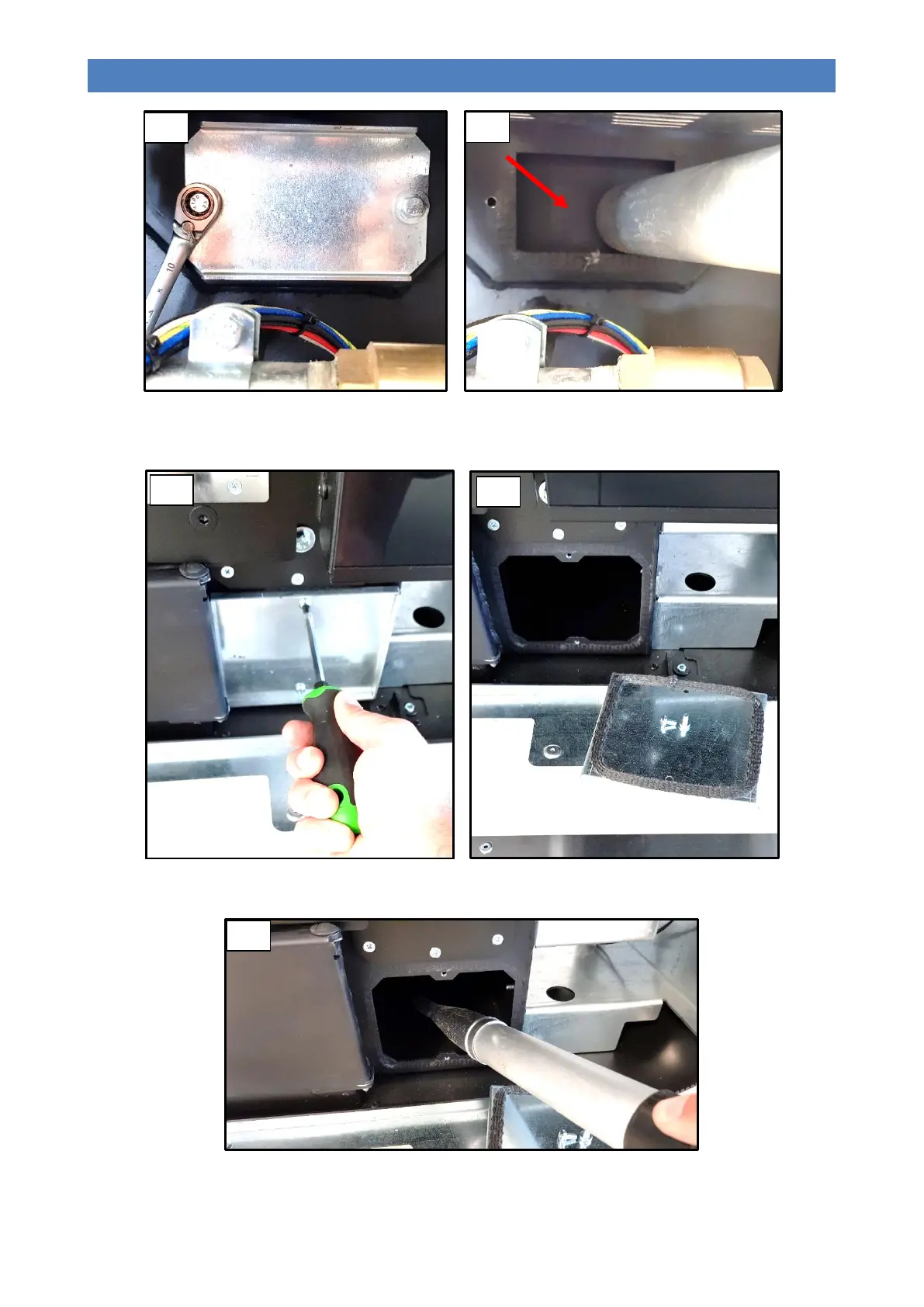

Remove the “flue gas path side (right-hand side) inspection plate” by loosening the 2 screws (Figure 4) and suck up any
ash deposits inside it (Figure 5).
After opening the “lower inspection compartment”, remove the “flue gas path front inspection plate” (Figures 6 and 7).
Remove the deposits inside it using a suitable ash vacuum device (Figure 8). After completing this operation, put the
“flue gas path front inspection plate” back into place and check its airtightness.
6
5
8
4
7
