DIVA SLIM PELLET BOILER STOVE
33
EN - Rev. 1.0

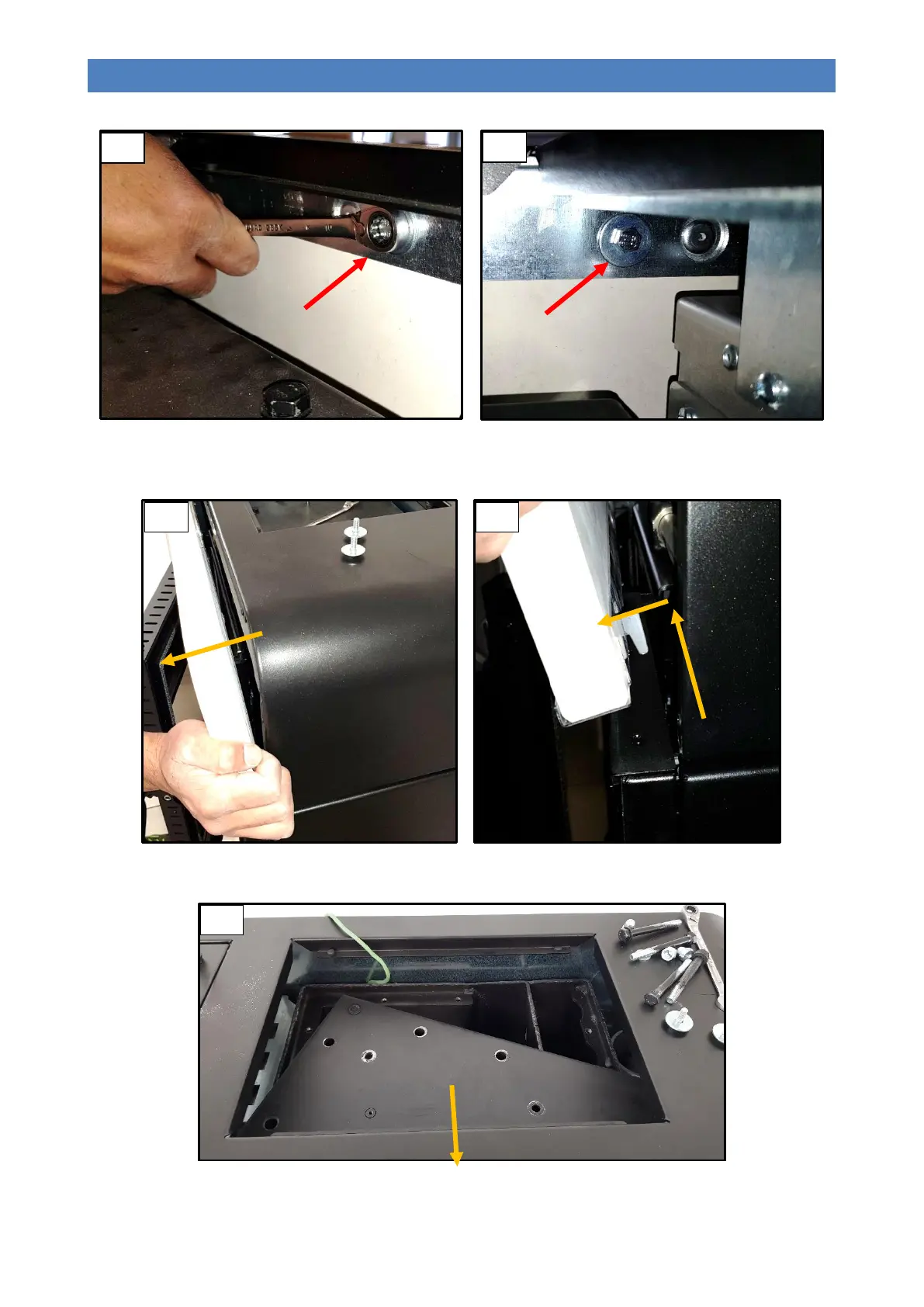

Remove the hex head screws that fasten the “Upper front inspection compartment” on the inside
(Figures 13 and 14).
Turn the “Upper front inspection compartment” (Figure 15) forwards and raise it to remove it (Figure 16).
Remove the upper lid by pulling it forward (Figure 17).
13
14
1
2
17
16
15
