EVOLUTION Instruction Manual
Version: C (Manual 0901170) 7 2024-1218
0901170 REV.B
Page 7

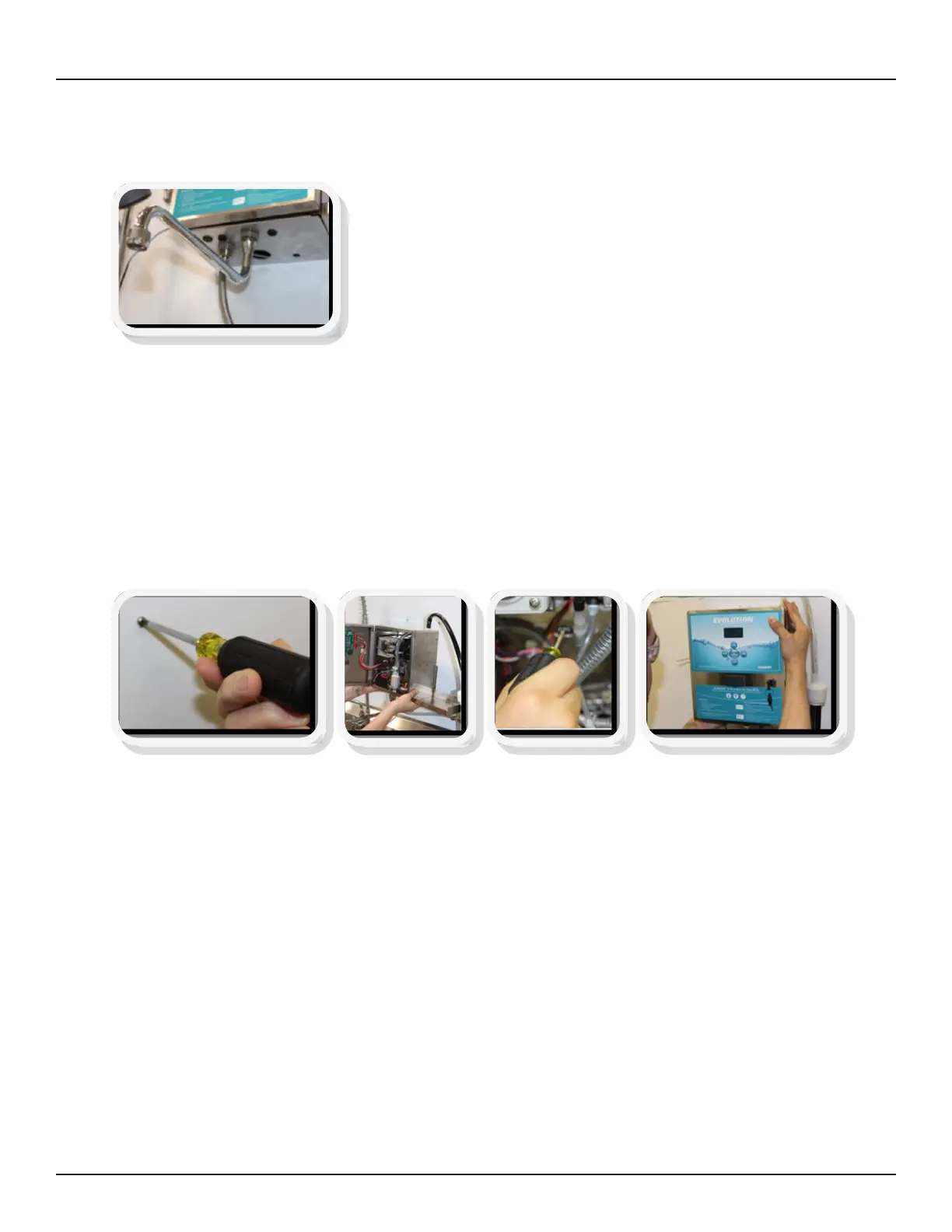

Rigid spout models are generally used where a fixed location for filling tubs is desired. The
spout stays above the work area and swivels up to 180 degrees.
Installation
1. Identify a suitable location on the wall above the sink or where filling of the sink or tubs is to
take place. Make sure a power source is within 6 feet (1.8M) or you will need to extend the
power supply.
2. Position unit on the wall and mark mounting hole locations. Install provided anchors and
screws and secure unit on the wall.
3. Secure bottom of unit using lower mounting hole below peristaltic pump.
4. Installing the water supply
Important Note:
• Identify the location of the water source to be used. Most common is to connect into the
hot/cold supply lines from under the sink.
• Since the water faucet is essential to the operation of the sink you will need to “T” into
the water supply using the appropriate fittings, hose and connectors. The example
below includes a water tempering valve for hot/cold water mix. Actual fitting sizes,
braided hose lengths, standard/metric pipe connections should be planned in
advance based on the configuration of the plumbing system in each location.
