Knight EVOLUTION - Water Supply Installation Example; Tempered (Mixed) Water Parts List; Cold Water Parts List

EVOLUTION Instruction Manual
Version: C (Manual 0901170) 8 2024-1218
Page 8
0901170 REV.B

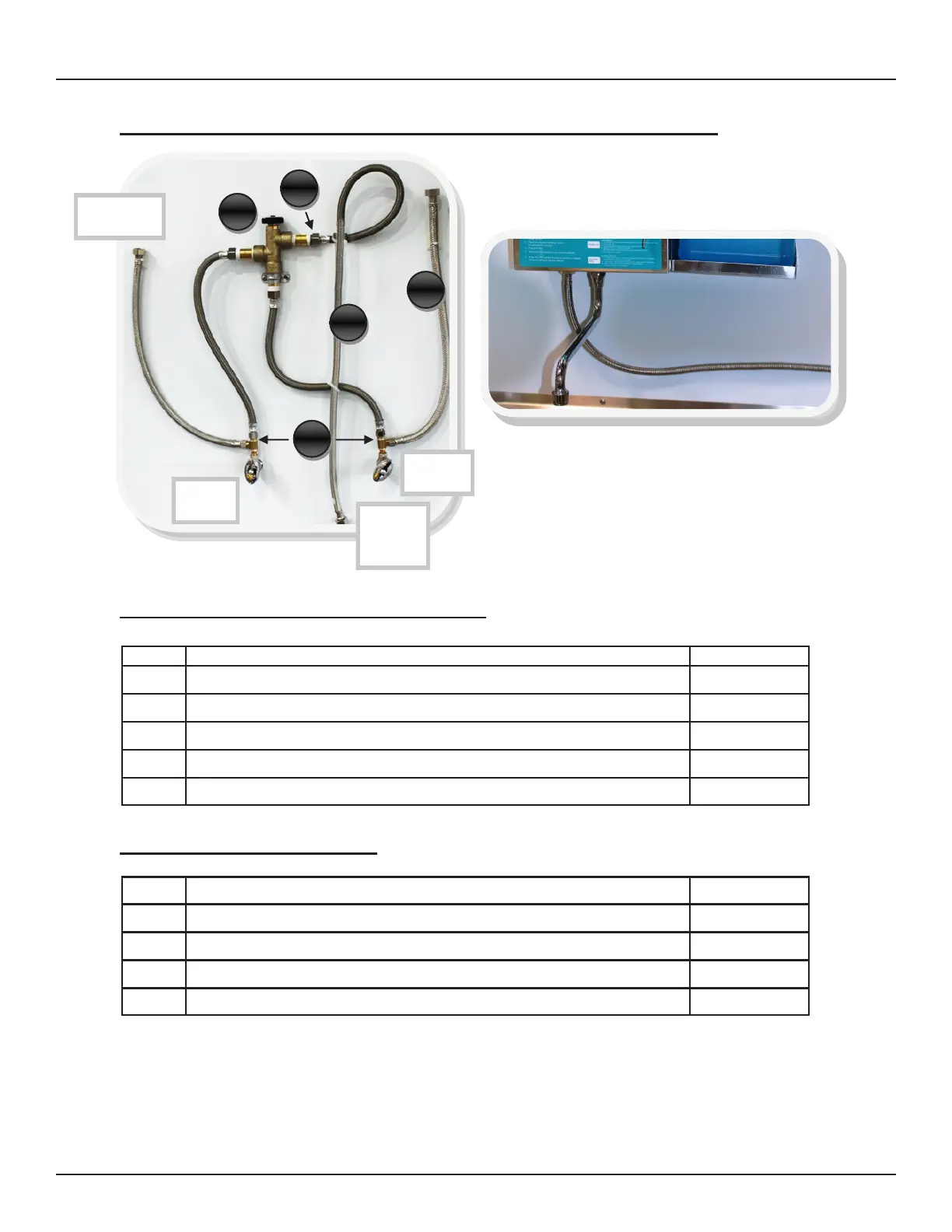

Typical Water Supply Connection for Tempered or Cold Water Installation
Tempered (Mixed) Water Parts (Not Included)
Cold Water Parts (Not Included)
Item # Description Qty
1 Braided appliance hose, ½” FPT x 3/8” compression 4
2 Braided appliance hose, ½” FPT x 1/2” compression 2
3 Pipe nipple, ½” x 1” 4
4 Tempering Valve, ½” Watts LF 70 1
5 Adaptor, 3/8” x 3/8” x 3/8” compression 2
Item # Description Qty
1 Braided appliance hose, ½” FPT x 3/8” compression 2
2 Braided appliance hose, ½” FPT x 1/2” compression 1
3 Pipe nipple, ½” x 1” 1
4 Tempering Valve, ½” Watts LF 70 n/a
To hot
Hot
water
Cold
Mixed
water to
evoluon
1
2
3
4
5
