DESiGN aND fuNCTiON
5 Status: 04.11.21
3 Design and function
3.1 Design
R
e
l
e
a
s
e
8P
6P
97 51 10
KNIPEX
RJ 11/13
6P
8P
RJ 45
65
3
4
1
2

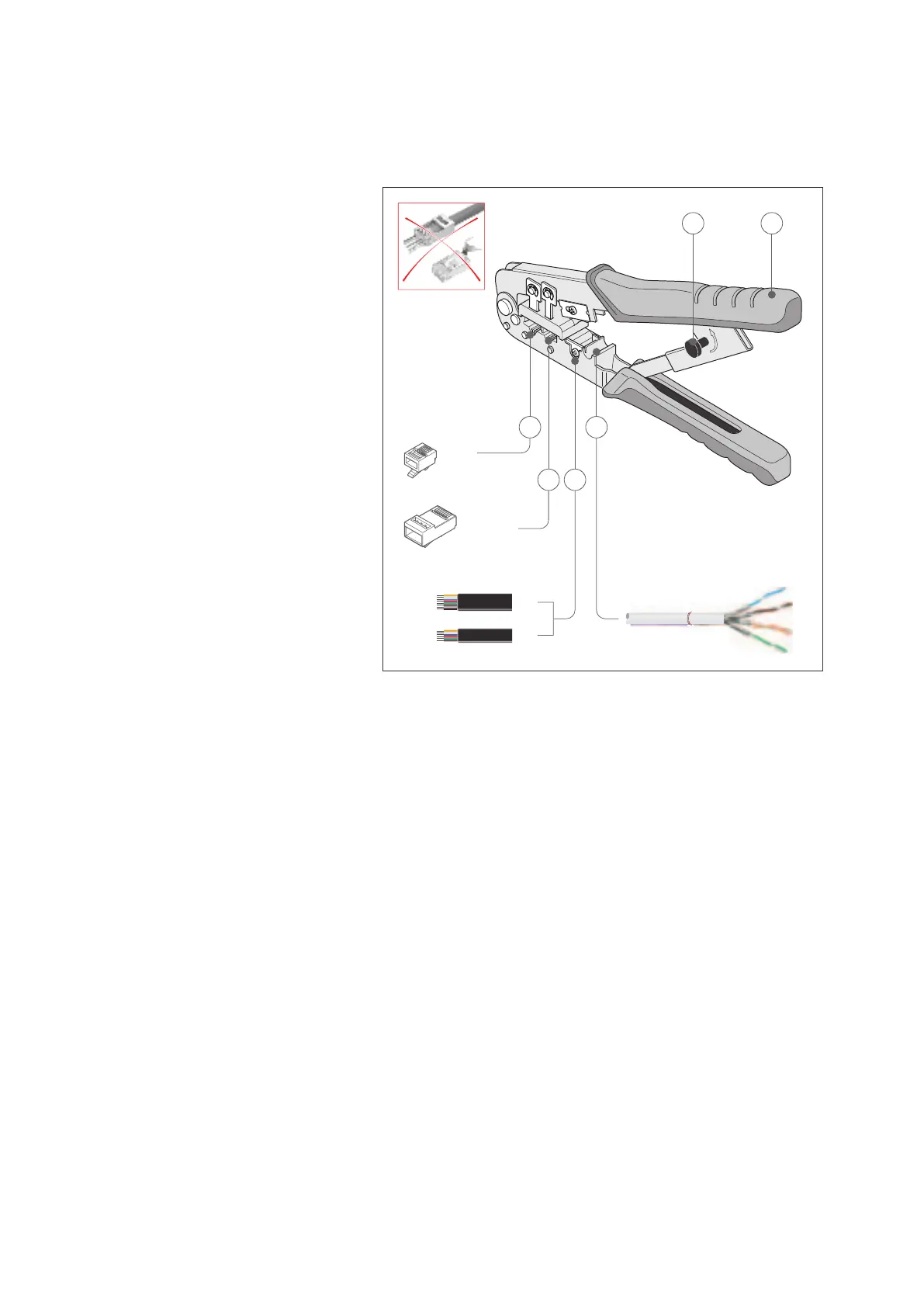

Design crimping pliers
1 Crimping point for 8-pin Western plugs (RJ 45 - 11.68 mm)
2 Crimping point for 6-pin Western plugs (RJ 11/12 - 9.65 mm)
3 Cable cutter and stripping blade for 6 and 12 mm at cables
4 Stripping blade for CAT cables
5 Unlocking the forced locking mechanism
6 Handles
3.2 Function
The crimping pliers for Western plugs can be used to cut and strip at cables
and crimp Western plugs.
CAT cables (network cables) can be stripped and crimped.
The forced locking mechanism, which can be unlocked as required, ensures
that the pliers only open when the required crimping pressure is reached.
