OpEraTiON
6 Status: 04.11.21
4 Operation
4.1 Cutting, stripping and pressing 6-pin at cables into
Western plug type RJ 11/12
4.1.1 Cutting and stripping 6-core at cables

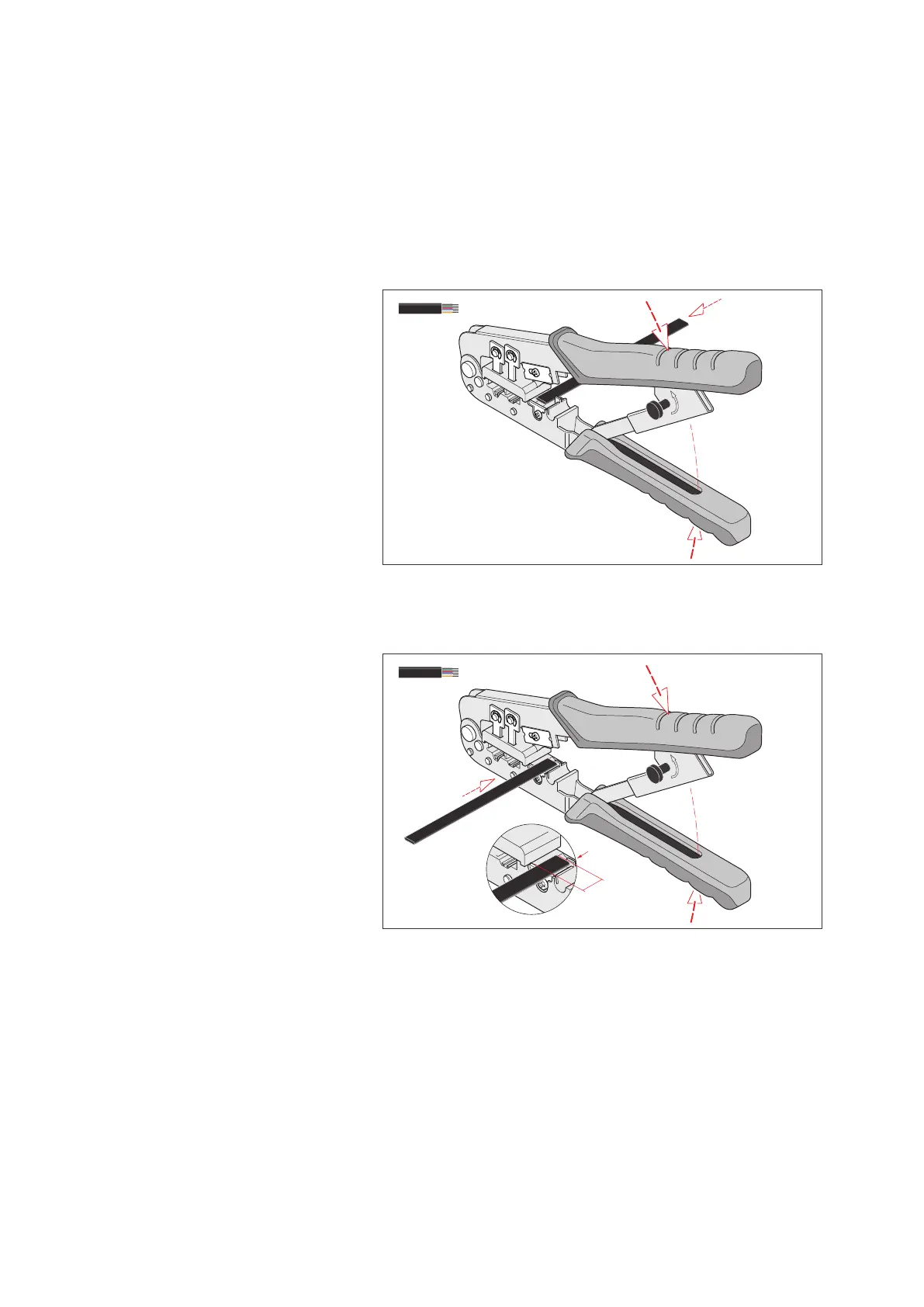

» Insert the end of the cable into the holder from the back.
» Press the pliers completely together to cut the cable.
R
e
l
e
a
s
e
8P
6P
97 51 10
KNIPEX
6P
1.
2.
Cutting the at cable
» To obtain a stripped length of approx. 6 mm, insert the cable into the
holder from the front as far as it will go (a).
R
e
l
e
a
s
e
8P
6P
97 51 10
KNIPEX
6P
6P
3.
4.
6 mm
a
Stripping the at cable
» Press the tool together.
