Owner’s Manual 4/8 Indent Crimping Tool MicroCrimp
Rev.: 2016-06-13 5 / 6
EN
3 Exchange of Locators
• Loosen the center hex head screw with an Allen wrench (SW 2.5 mm); you may want to use a second
Allen wrench on the opposite side
• Remove the locator
• Fasten the other locator (optional) by using the Allen wrench
4 Crimping Dimension Adjustment
All precision settings are adjusted by using the adjustment wheel; the wheel is turned clockwise for crimp
dimension decreases and counterclockwise for crimp dimension increases. The adjustment of the crimp
dimensions (crimping depth of the indenters) can be changed through the adjustment wheel and may be
modified by using the following steps:
Positioning accuracy
· 1 scale mark on adjustment wheel = 1/100 mm increment
· 1 360° turn of the adjustment wheel = 0.2 mm increment; indicated on the scale of
the adjustment wheel
· 5 360° turns of the adjustment wheel = 1 mm increment; indicated on the scale of the
adjustment wheel

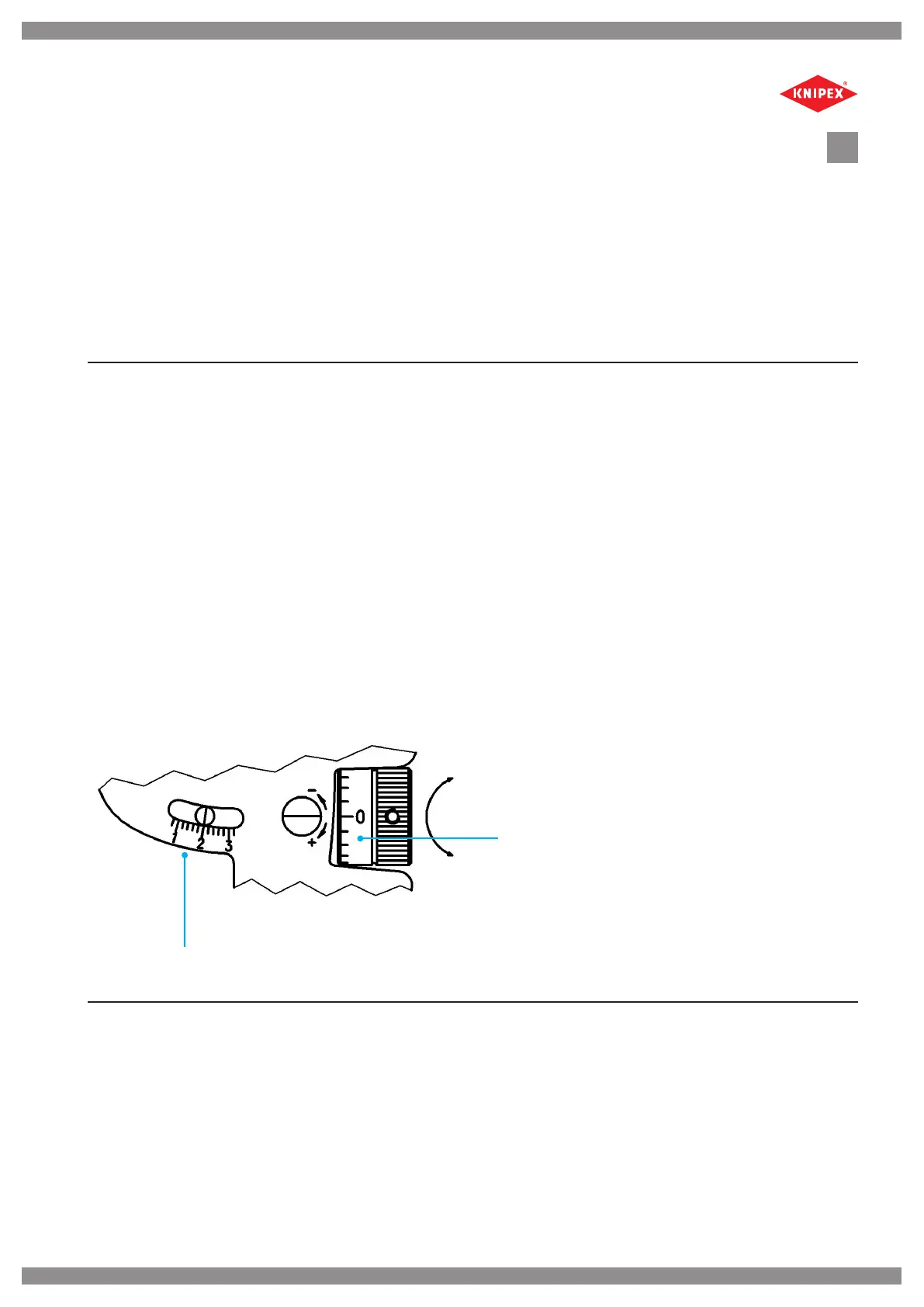

Scale with 1 mm and 0.2 mm Increments
Adjustment Wheel with 0.01 mm
Increments
- Crimp dimensions decrease (-)
- Crimp dimensions increase (+)
